Mechanical Packing Machine

Product introduction

Mechanical packing machine is composed of conveyor, lifting mechanism, grabbing system and positioning system. The products are sorted and fixed in a certain position by the front-end material handling mechanism, and then the products are grabbed by the grabbing mechanism. After grabbing the products, the equipment lifts and moves the products to the back of the carton through the four-bar structure, and the grabbing mechanism rises to output the carton, and then seals the carton to the sealing machine; This completes a complete packing process. This packing machine from the whole line, grab, move, place, output and other actions are fully automatic, no manual; At the same time, this mechanical packing machine can adjust the grabbing system according to different products, that is to say, different kinds of packing can be carried out. The adjustment time is not more than 5 minutes. One machine has multiple functions and powerful performance. It is an essential equipment for enterprises to realize automatic large-scale production. This packing machine is suitable for beverage, wine, mineral water, wine and other industries;

Equipment features

*The main drive adopts synchronous pulley mechanism, auxiliary high-performance components, and combines with pneumatic and electric control to realize automation and smooth operation.

*Flexible packing form: the packing form of this machine can be set according to the customer's requirements, so that the product and its structure are in the opposite state.

*Hygienic requirements: adopt sealed bearing, synchronous belt, etc., with low noise

*Using frequency control and PLC control technology, combined with human and interface, easy to operate, high degree of automation.

*The mechanical packing machine works reliably: This machine is used to grasp and release bottles by grasping the head for filling and exhausting. Then the bottles are put into the carton accurately from the whole line platform by mechanical action.

*The mechanical packing machine is equipped with grab head protection device, which can avoid manual or system error to hurt the operator, product or equipment;

*The mechanical packing machine runs smoothly: the whole packing action of the packing machine makes the bottle rise, move and fall through the cam and double four link mechanism. Automatic packing is realized by PLC control. The movement is coordinated and the operation is stable.

*High production efficiency of mechanical packing machine: this packing machine is the equipment with high packing efficiency. It can grab a box of products at the same time, and it can also grab 2-5 boxes of products at the same time. It can also choose the appropriate production speed according to the production needs.

*Mechanical packing machine operation list, advanced structure. The packing machine is fully automatic and the operation process is clear. It can also run synchronously with the production line, so it is easy to learn.

Applicable product industry:

It is suitable for automatic packing of products such as alcohol, beer, wine, beverage, food, daily chemical, electronic, oil, fruit juice, mineral water and so on. Its packaging material can be carton, plastic box, tray, heat shrinkable film, PET bottle, glass bottle, plastic bottle and so on. The processing capacity can reach 20-30 boxes (bags) / min.

Product display:

Product performance parameter table

*The parameters and price of packing machine are for reference only. Please consult customer service for details.

This mechanical packing machine has a wide range of applications, small footprint, and can be used online with folding cover sealing machine, high-speed unpacking machine, robot palletizer, etc. it is a good helper for the unmanned production line of product secondary packaging.

Optional:

*Soft bag packing machine

*Drop box loader

*Pad auto add

*High speed unpacking machine*Can it be customized: Yes

Technological process:

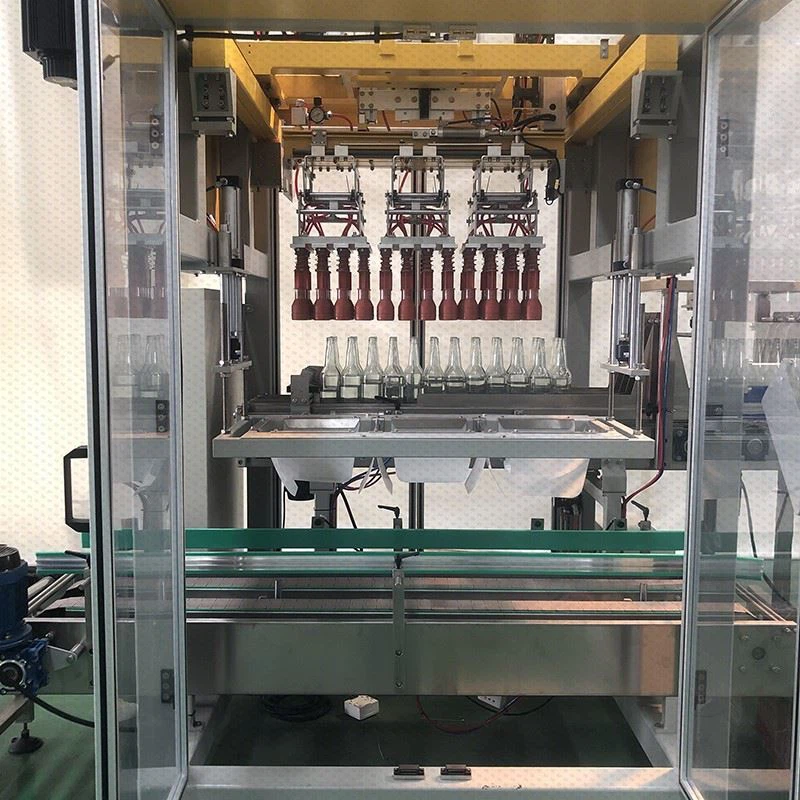

High speed mechanical packing machine production workshop:
