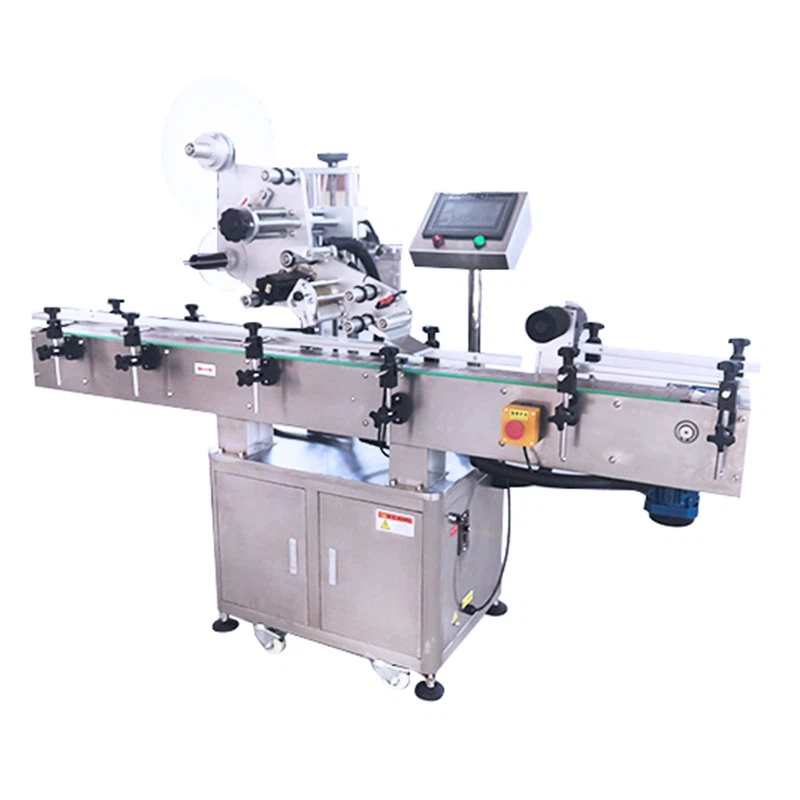

Automatic Flat Surface Labeling Machine

The automatic flat surface labeling machine is designed as the top and bottom labels for edge bags(such as zipper bags), standing bags, bottles, boxes, or other flat items.

Technical parameters of automatic flat surface labeling machine:

Production：30-150 bottle/min

Driving Mode：Servo motor

Conveyor speed：≤40 m/min

Label Specification：adhesive sticker, transparent or opaque label(can be customized)

The application of label：Height 20-200mm Length 25-300mm(can be customized)

The inner diameter of label roll：76mm

The outer diameter of label roll：350mm(max)

The power of motor：500W

Voltage：AC220V 50/60HZ Single phase

Size appearance：2200*900*1600(mm)

Work flow of automatic flat surface labeling machine:

Bottles distributing--Correcting--Pressing--Labeling---Reinforcing--Finish

1. Fix the label roll on the machine according to the graphical representation, adjust the height of each part.

2. Check if all the position of the labels are correct.

3. Adjust the distance between the two rails, the distance between the brush and the conveyer, make sure the distance is suitable for the product to pass.

4. Turn on the power switch, turn on the optoelectronic switch.

5. Turn on switch of the motor and label sending device, debug labeling, if there are any abnormal, get rid of them.

6. Adjust the labeling position.

7. Ensure the test is OK, then operating the machine normally.

8. Power off.
