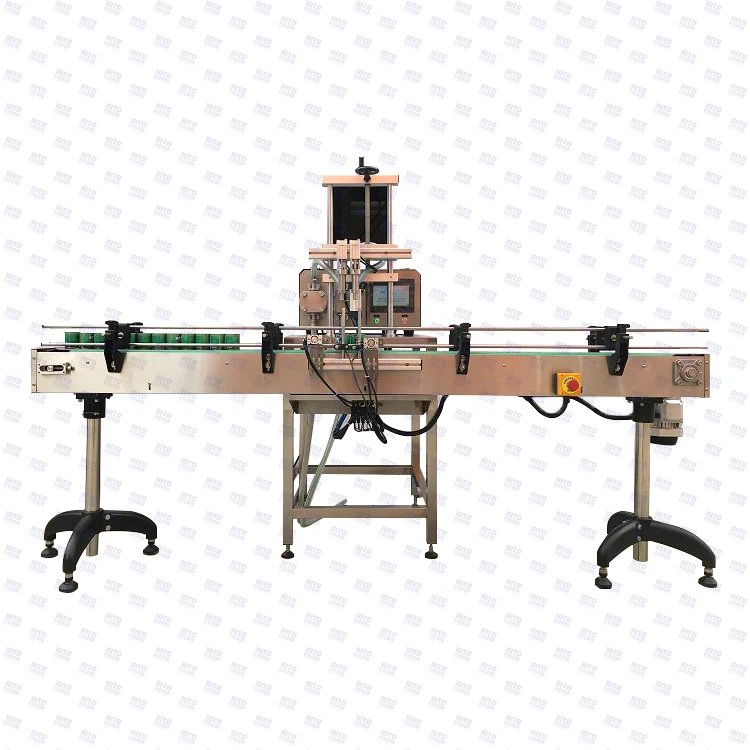

Gear Pump Liquid Filling Machine



Gear pump liquid filling machine

This gear pump liquid filling machine is equipped with gear pump, which can fill you up with liquid to be precise. There are multiple nozzles there, and the customer can control each nozzle separately if needed. This fully automatic liquid filling machine is equipped with a conveying device and can be queued as part of the production. All these will help you greatly improve your work efficiency.



Description

Rito machinery company's gear pump liquid filling machine is equipped with gear pump, which can fill you up with liquid to be precise. There are multiple nozzles there, and the customer can control each nozzle separately if needed. This fully automatic liquid filling machine is equipped with a conveying device and can be queued as part of the production. All these will help you greatly improve your work efficiency.

Feature:

1. Touch screen operation interface;

2. The anti-drip slot helps to clean the machine and ensures that the machine is clean and working better. Bottle separation plate can accurately separate bottles and prevent bottle leakage and waste

3. The pouring precision can reach + / - 1%;

4 grounding cylinder, unique grounding valve design, no leakage;

5. No bottle function, no flash, automatic bottle stop;

6. Develop different positioning devices according to the actual situation of the bottle;

7.The cleaning equipment is convenient and can be disassembled without tools. It can also be cleaned online or hot sterilization

8 PLC programmable Mitsubishi monitoring, Japan;

9 frequency converter using Schneider, France;

10. The pneumatic components adopt Taiwan Airtac;

11. This part can be used to adjust the sensitivity of the electric eye to ensure that the machine works accurately

12. The equipment meets the health and safety standards. The user can choose the glass cover.

13.Filling Nozzles with anti-dripping function,can control each nozzle separately. We also have the 2/6/8 nozzles filling machine,please send us message if you need it.



Container size	φ20-160mm H30-300mm
Max flow rate	5500ml/min	5500ml/min	7500ml/min	12000ml/min
Material of pump	304stainless steel	316stainless steel	316stainless steel	304stainless steel
Filling accuracy	≤100ml deviation≤±1ml > 100ml deviation≤±1% ( based on water)
Filling speed	20-50pcs/min	20-50pcs/min	25-60pcs/min	40-65pcs/min
	(depending on bottles and flling liquid)
Power supply	220V-50HZ/110V-60HZ
The whole machine power	2000W
Packing weight	About 150kg
Packing size	About 2000*820*1580mm
Size of air compressor connector	OD8mm





The installation precision is high, the standard is high, the stability is good, the whole machine parameter is higher than the industry standard.



This machine can be used for filling a variety of liquids, such as water, milk, toner and so on. It is widely used in food,cosmetics and tablet industries.

The Gear Pump Liquid Filling Machine is an amazing piece of equipment that is designed to help with the process of filling liquids into containers. It is a high-capacity machine that is able to work efficiently and accurately, delivering reliable and consistent results with each use.

One of the best things about this machine is that it is very easy to use. It comes with clear instructions that are straightforward and easy to follow, making it perfect for use by both experienced professionals and those who are just starting out in the industry.

Another great feature of the Gear Pump Liquid Filling Machine is that it is highly versatile. It can be used to fill a wide variety of liquids, including water, oil, milk, and even thicker products like honey and syrup. This makes it an excellent investment for businesses that require flexibility in their production processes.

In addition to being easy to use and versatile, the Gear Pump Liquid Filling Machine is also very efficient and precise. It is able to fill containers quickly and accurately, ensuring that each one is filled to the correct level and without any spillage or waste. This results in increased productivity and profitability for businesses that use the machine.

Overall, the Gear Pump Liquid Filling Machine is an excellent choice for any business that needs to fill liquids into containers. It is a reliable, efficient, and versatile piece of equipment that can help to streamline production processes and improve overall efficiency. So if you're looking to invest in a high-quality filling machine, this is definitely one to consider!
