High-Precision Servo Piston Filling System – Versatile For Liquid, Semi-Liquid, And Viscous Products
Engineered for high-performance liquid and semi-liquid filling, this automated servo piston machine delivers consistent and stable filling results across a variety of product types. It is specifically tailored for use in bottle filling applications, offering exceptional precision and repeatability to meet the strict demands of quality control in different production environments. The machine is versatile enough to accommodate various container types, including plastic, glass, and PET bottles, making it an ideal solution for the food, beverage, cosmetic, and daily chemical sectors. Its advanced servo control technology ensures smooth operation and minimal product spillage, while its modular design allows for easy customization and integration with existing production lines. With a focus on efficiency, reliability, and user-friendliness, this system is designed to enhance productivity and reduce downtime. It supports a wide range of viscosities and can be adapted for both small-scale and large-volume manufacturing needs, providing an all-in-one filling solution for diverse industry applications.
Description
Products Description

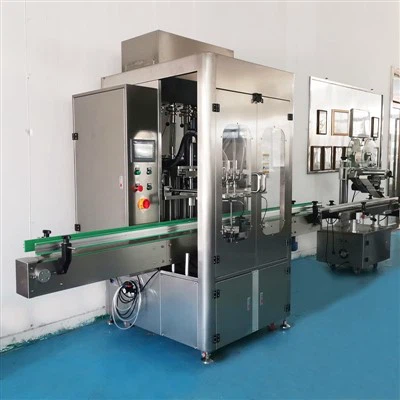

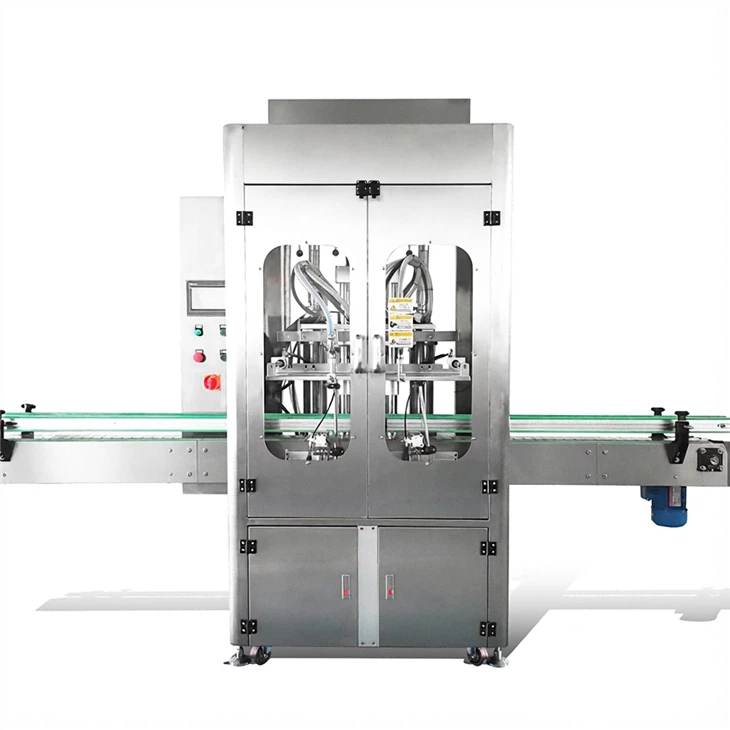

Automatic Servo Piston Filling Machine
Equipped with a high-precision servo-driven piston system for precise and efficient liquid filling. Featuring a user-friendly touchscreen interface to ensure ease of operation and reliable performance.
Core Features:
High-accuracy servo motor for consistent and reliable filling

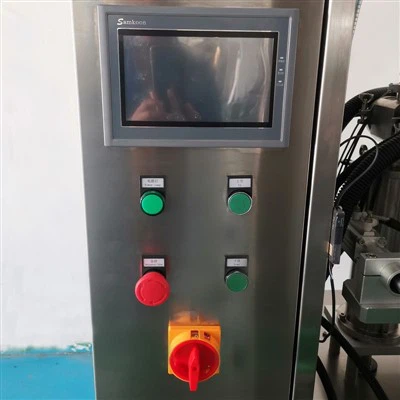

Touchscreen control panel for intuitive user interaction
Compact and efficient design suited for diverse filling environments
Products parameter

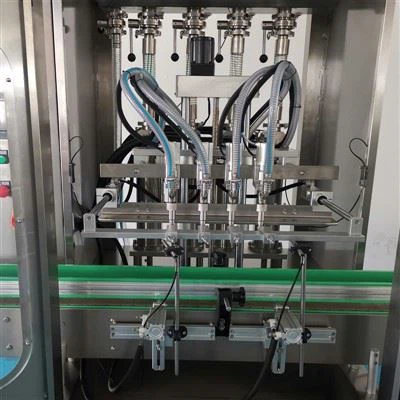

Filling Nozzle Options
We offer customizable filling nozzle options with 4, 6, 8, 10, 12, 16, or 18 filling heads, allowing for flexible application according to your specific operational needs. Below are the specifications for standard models with 4, 6, and 8 heads, which can be adapted to other configurations as required.
| products |
 |
 |
 |
| Filling nozzle | 4 | 6 | 8 |
|---|---|---|---|
| Filling Range | 100-1000ml,500-5000ml(customized) | 100-1000ml,500-5000ml(customized) | 100-1000ml,500-5000ml(customized) |
| Accuracy | ±0.5% | ±0.5% | ±0.5% |
| machine size | 2400×1100×2100mm(customized) | 2900×1260×2200mm(customized) | 2900×1260×2200mm(customized) |
| machine Weight | 400kg(customized) | 500kg(customized) | 550kg(customized) |
| Power | 2.5kw | 2.5kw | 2.5kw |
| Air Source | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa |
Products Application
This automated filling solution is designed to handle a broad spectrum of liquid and semi-liquid products, ensuring optimal performance in settings where high consistency and reliability are critical. It is widely adopted in modern packaging lines that require efficient and stable filling processes across various production stages.
Supported Container Types:
Plastic bottles
Glass bottles
PET bottles
Custom-shaped containers (within equipment capability)
Application Benefits:
Smooth and consistent filling process without interruption or spillage
Quick adjustment for variable bottle sizes and filling requirements
Designed for standalone operation or seamless integration into complex automation systems
Products Details
💬Enhancing Your Packaging Workflow with Smart Technology
If you're looking for a reliable and efficient filling solution tailored to your unique production needs, our team is here to guide you.
Customized Support
Let us help you select the best filling setup for your product type and production volume. Whether you need assistance with installation, operation, or maintenance, we provide tailored advice and comprehensive support to ensure your workflow is optimized and productive.
FAQ
Common Questions About Our Automated Filling System
Q:1.What material is the machine constructed from?
A:Our filling system is built with robust and durable materials to withstand high-volume use and various environmental conditions, ensuring long-term reliability and performance.
Q:2.How do I adjust the filling capacity and speed?
A:Through the intuitive control panel, operators can easily modify both filling volume and speed according to product specifications and line throughput.
Q:3.Is the system user-friendly for operators?
A:Yes, the machine is designed for simplicity, with a clear and responsive operator interface that minimizes learning curves and improves productivity.
Q:4.Will the machine operate without a container?
A:No, the filling process is designed to only activate when a container is properly positioned within the machine. It automatically detects and stops when no bottle is present.
Q:5.Can it handle different bottle shapes and sizes?
A:Yes. This servo piston liquid filling machine supports various bottle shapes and sizes through simple adjustments, without the need to change accessories.
Q:6.How does the machine prevent dripping during filling?Q:7.Is the filling speed adjustable?
Q:8.Can the accuracy of the filling be customized?
A:Definitely. The system allows for precise calibration and adjustment to ensure that your filling tolerances are met, even for the most sensitive products.
Q:9.Is it suitable for filling high-foam liquids?
A:Our system is equipped with features that effectively manage foaming, ensuring accurate and consistent filling for products with varying foam levels.
Q:10.Does the machine include an automated feeding system?
A:While the system itself focuses on filling accuracy, it is compatible with various feeding setups to provide a fully integrated packaging solution.
Real-World Application Scenarios
Versatile Use Across Industries
Our filling system is far more than just a machine - it's a key component in modern packaging solutions that can be applied across multiple industries. From healthcare and personal care to food processing and chemical manufacturing, it provides real-world benefits through its adaptability and precision.
In the pharmaceutical industry, it ensures accurate dosing of liquid medications, supporting compliance with strict regulations and enhancing product uniformity. Within the food and beverage sector, it supports the filling of viscous or foamy products like sauces, syrups, and dietary supplements, while maintaining hygiene and quality control standards.
In cosmetics and personal care, this system is ideal for filling lotions, serums, and other products into bottles of different shapes and sizes. For industrial chemicals, its robust configuration ensures it can handle corrosive or high-viscosity substances without affecting performance or longevity.
The modular design allows for seamless integration into both manual and automated production lines, offering flexibility in how you deploy it to improve efficiency and productivity across your operations.
✅ User Experience and Operational Support
Designed for Ease of Use and Long-Term Reliability
To maximize user satisfaction and ensure ease of operation, our system is built with a user-first perspective, combining intelligent software with intuitive hardware. This makes it simple for both new and experienced operators to handle.
We offer multi-channel support including online resources, technical documentation, and in-person or remote training sessions to help you get the most out of your machine. Additionally, our cloud-based monitoring platform provides real-time data, performance tracking, and predictive maintenance alerts, giving you better control over your production process.
Key elements like ergonomic layout, intuitive control panels, and smart automation options are integrated to reduce operator fatigue, improve work efficiency, and minimize errors. Whether you're running a small business or a large-scale factory, our system supports a range of operational styles and scales to ensure consistent performance and excellent ROI.
