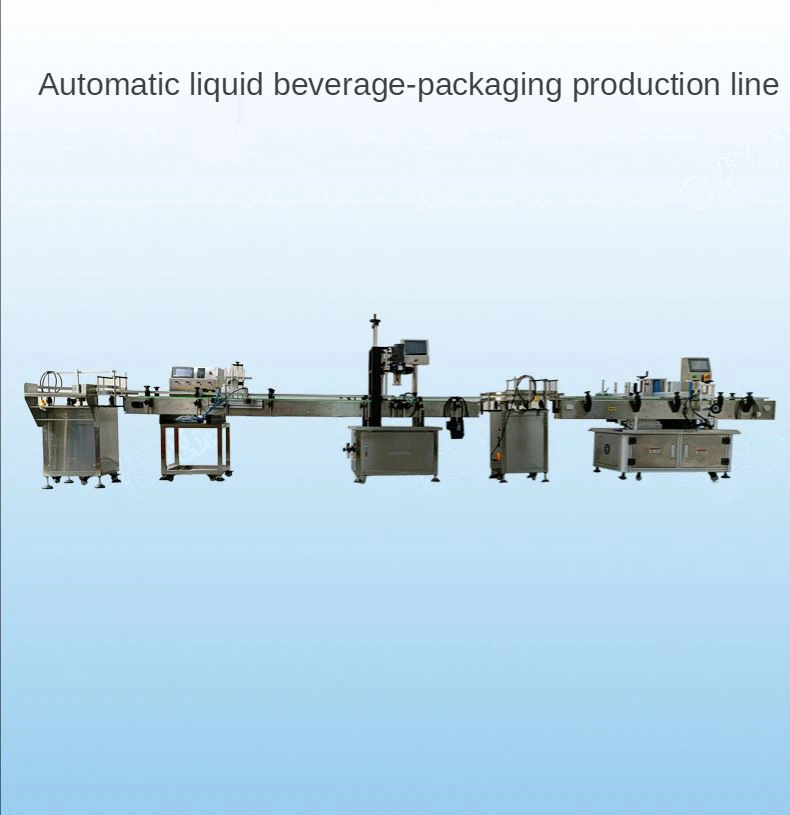

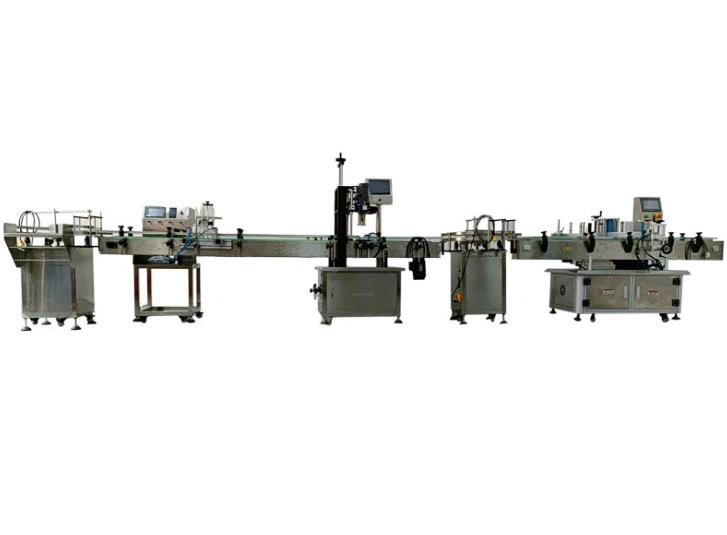

Bottle Filling Capping And Labeling Machine

Bottle filling capping and labeling machine is suitable for all kinds of corrosive, low viscosity and non granular liquids. The pump capacity is 13L per minute, which is suitable for large capacity bottles (can be customized according to customer needs). Magnetic pump, high precision, high output and strong stability

Product parameters

Technical parameters of bottle sorting machine:

Applicable bottle diameter：Customized bottle feeding track according to products

Power：180W

Voltage：220V/50HZ

Working speed：40-60 bottle points (depending on bottle size)

Technical parameters of bottle filling capping and labeling machine:

Voltage： 220 50Hz

Power：400W

Size：1500 350 * 750mm

Net weight：60kg

Yield：20-50 bottles / min (depending on the filling volume)

Filling Precision ：0.5% ≤ (depending on the material)

Maximum flow：Single head 2L / min

Bottle height range：40-260mm

Bottle wide range: 20-150mm

Filling volume: 5ml - infinite (adjustable)

Pipeline speed: 15m / min

Technical parameters of capping machine:

Applicable power supply:220V/50HZ

Motor power: 0.75KW

Working pressure: 0.4-0.6MPA

Applicable cover: Plastic, metal round cover, pump head cover, duckbill cover, etc

Sealing height: 30-300MM

sealing diameter:16-65MM

Applicable bottle diameter: 30-100MM

Production speed: 20-45 bottles / min

Machine size: 2000*650*1500MM

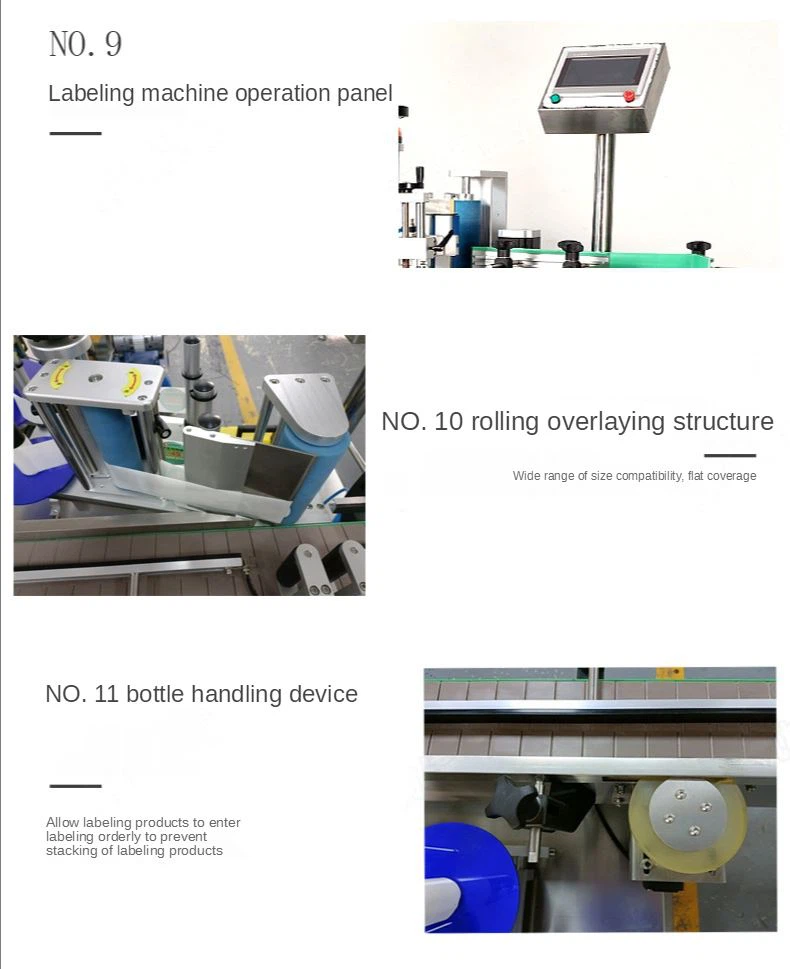

Technical parameters of labeling machine:

Applicable power supply: 220V/50HZ

Power: 570W

Labeling accuracy: ± 1mm (excluding products, label error)

Labeling speed: 25-45 pieces

Applicable product diameter: Diameter 15-100mm; Height 25-300mm

Applicable label size: Length 20-300mm; Width 20-130mm

Applicable label inner diameter: Medium 76mm

Applicable label outer diameter: 300MM

Machine size: 2000*1080*1370MM

Bottle filling capping and labeling machine features:

1. The bottle filling capping and labeling machine is mainly made of high-quality stainless steel, and the parts in contact with materials are made of 304# high-quality stainless steel and food grade plastics, which are clean and beautiful and meet the requirements of food safety

Sanitary requirements;

2. The main pneumatic components and cylinders are products of Taiwan AIRTAC company, and the PLC and touch screen are products of international well-known brands such as German Siemens to ensure stable, reliable and durable performance;

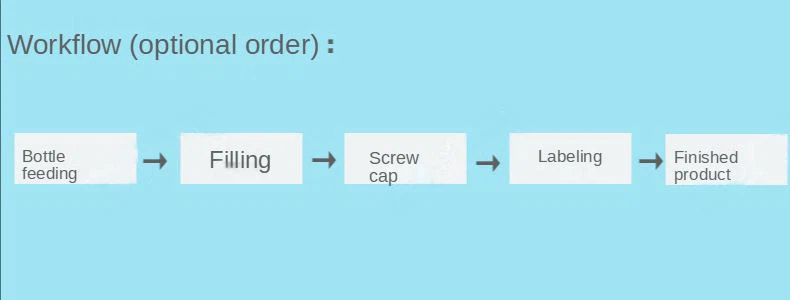

The whole bottle filling capping and labeling machine is controlled by machine, electricity and gas. It has the functions of automatic bottle feeding positioning, automatic quantitative filling, automatic bottle outlet, no filling in case of lack of bottle, automatic liquid level control and feeding, with a high degree of automation;

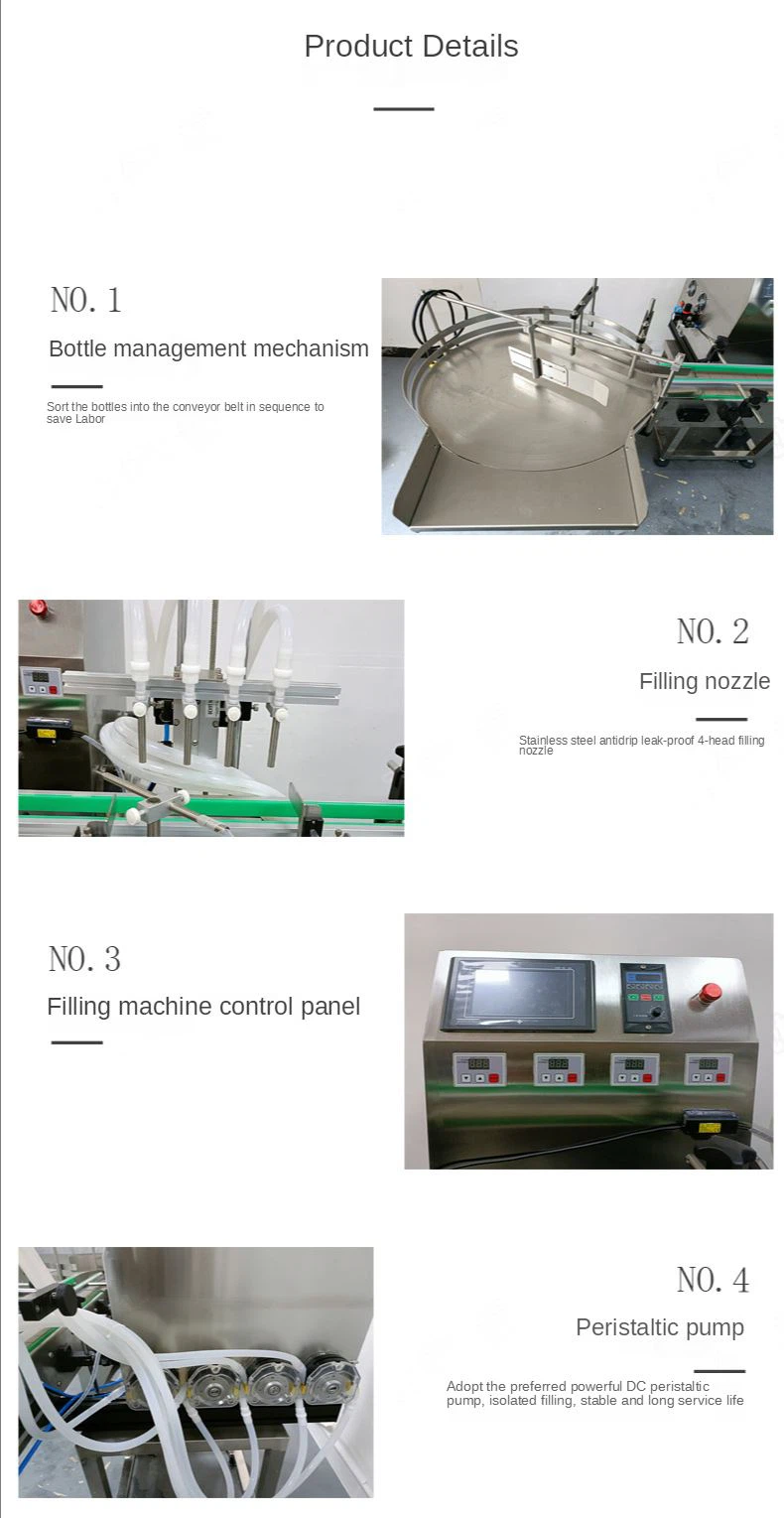

3. The filling nozzle of the machine is equipped with an anti drip device, which does not drip during filling; The filling and quantitative mechanism is connected quickly, the disassembly and washing are simple, and the filling volume is adjusted conveniently
