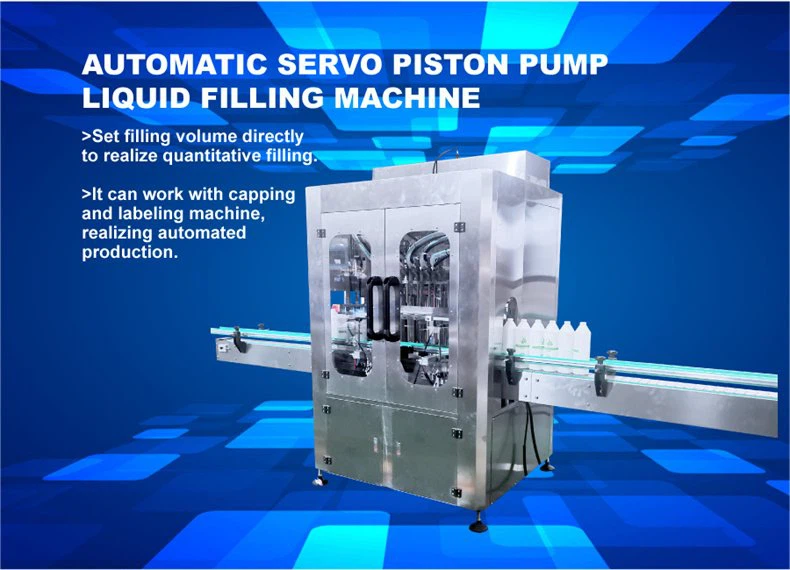

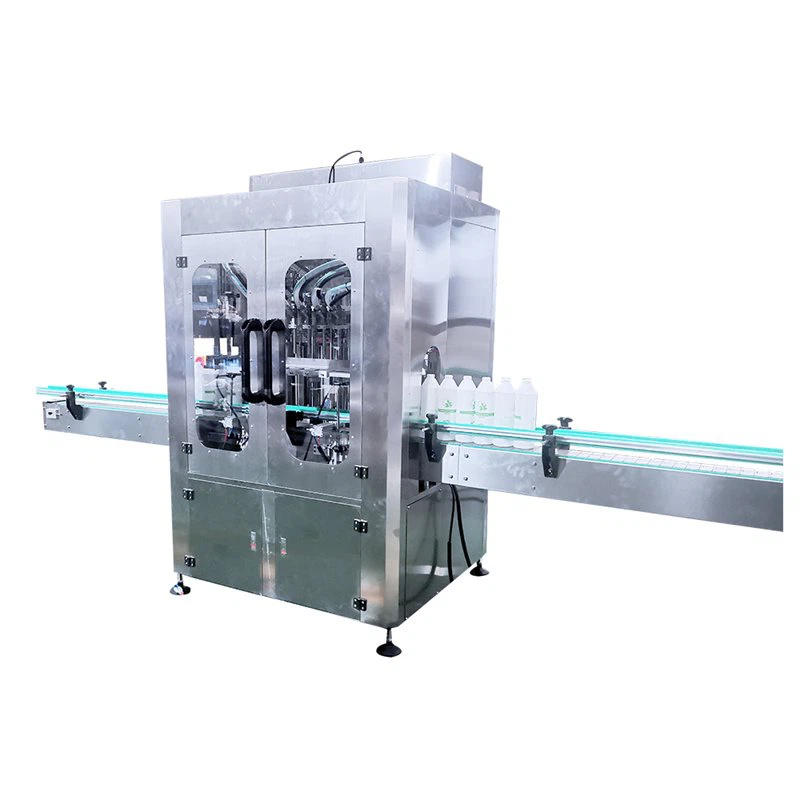

Automatic Servo Piston Liquid Filling Machine

Product Description：

Description: This automatic Servo Piston Liquid Filling Machine can fill liquid by entering certain number through control panel to set filling volume. It has the feeding pump and can feed filling material automatically, larger filling range can be chosen as production need. It is widely used in food, daily chemical and cosmetics industries.



Supply Ability：

Supply Ability    99 Set/Sets per Year



Packaging & Delivery：

Packaging Details：

Automatic Servo Piston Liquid Filling Machine is packed in boxes. We will check that if the machine can run before it is sent out. When you receive the goods, please open the package to check out if the goods are in good condition before the courier. If the boxes are damaged or other situations happen, please contact us in time.

Port： Guangzhou

Lead Time：

Quantity(sets)	1-5	>5
Est. Time(days)	30	To be negotiated

APPLICATION of automatic Servo Piston Liquid Filling Machine：

Fruit juice, cooking oil, soy sauce, milk, coffee

INFORMATION：

Machine Model	RT-1000-6
Voltage	220V/110V 50-60Hz
Power	About 6kw
Filling Range	100-1000ml (can be customized)
Filling Speed	About 30-70 bottles/min (depending on bottle size and filling material)
Filling Error	About 0.5%
Air Pressure	0.5-0.8Mpa
Conveyor Belt Size	About 114*2000mm(W*L)
Machine Weight	About 130kg
Package Size	About 2070*760*1670mm
Package Weight	About 275kg



Filling Machine Configuration
Name	Origin	Brand
Low-voltage electrical appliances	China	Delixi
Intermediate relay	France	Schneider
Electromagnetic valve	Taiwan, China	Air Tac
PLC	Taiwan, China	Samkoon
Operation Panel	Taiwan, China	Samkoon

DETAIL：

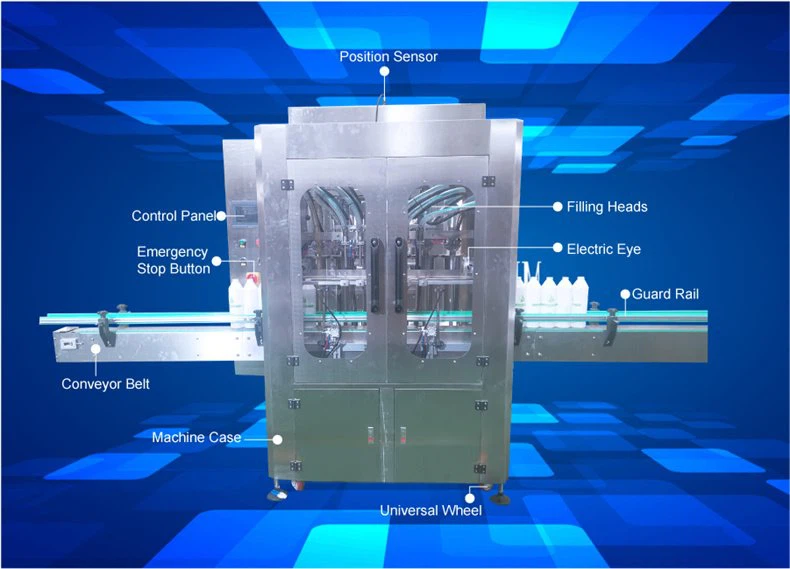

Equipped with touch screen panel, it is easy to set or adjust working parameters The language of panel can be customized as needed.

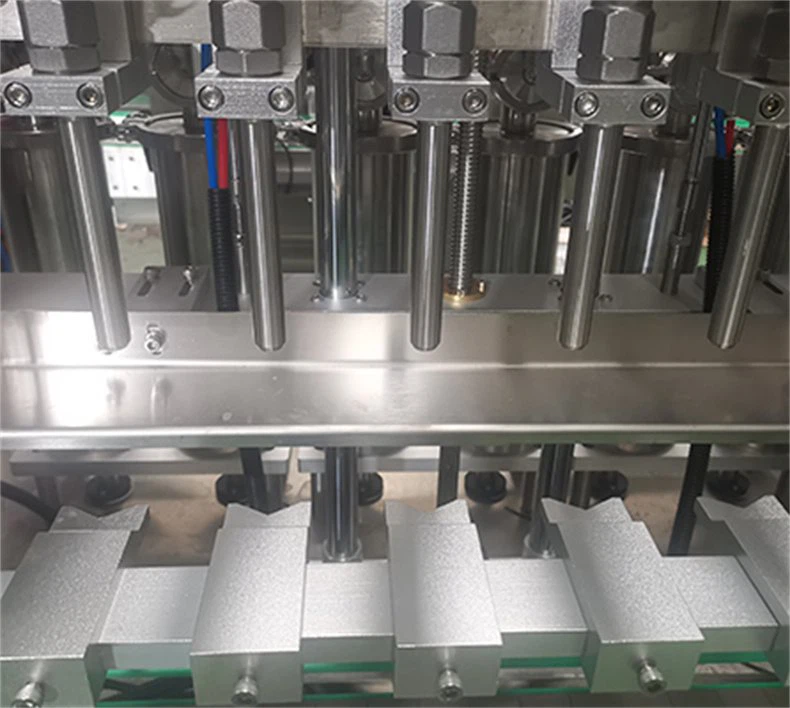

Equipped with diving nozzles, it can prevent liquid from splashing out during filling. Each nozzles can be controlled separately, ensuring filling accuracy. The quantity of nozzles can be customized as needed.

The electric eye is designed for detecting bottles and controlling machine to run automatically, saving labor cost. The sensitivity of it can be adjusted as needed.

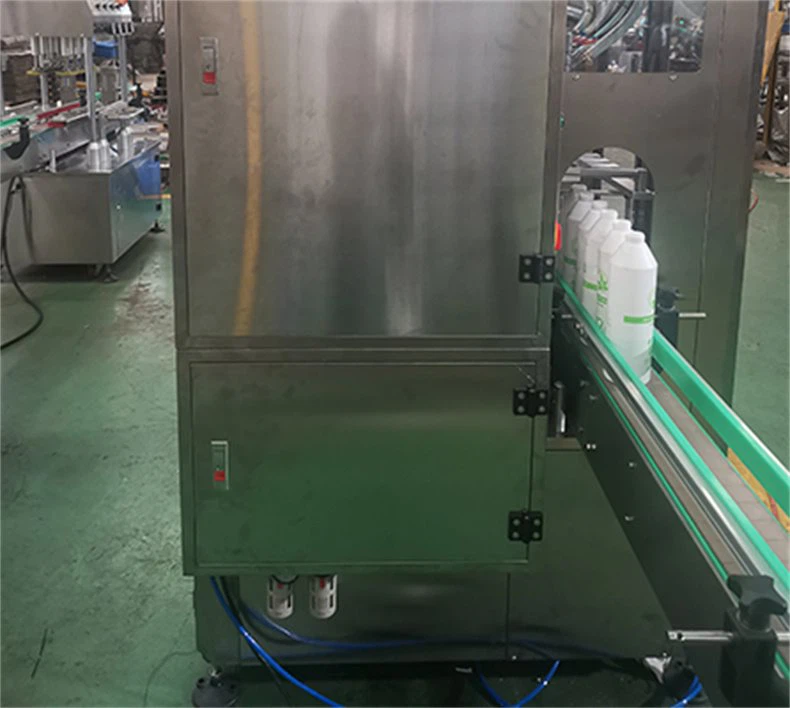

With chain conveyor belt, automatic Servo Piston Liquid Filling Machine has large loading capacity, which can transport bottles stably. The conveying speed and width of conveyor belt can be adjusted according to production need.

This automatic Servo Piston Liquid Filling Machine is equipped with high-quality machine components, which ensures long service life and enables machine to run steadily.

The Automatic Servo Piston Liquid Filling Machine is a state-of-the-art piece of equipment that has revolutionized the production process of liquid products. With its advanced technology and precision engineering, this machine has become the go-to solution for companies looking for highly accurate and efficient liquid filling capabilities.

One of the key features of the Automatic Servo Piston Liquid Filling Machine is its ability to fill liquid products with extreme accuracy. The servo technology used in the machine ensures that every drop of liquid is measured and dispensed precisely, resulting in consistent fill levels that meet or exceed industry standards.

Another advantage of this machine is its ability to handle various types of liquids, including those with high viscosity, without compromising accuracy. The piston filling mechanism ensures that every last drop of liquid is dispensed, eliminating waste and reducing production costs.

What's more, the Automatic Servo Piston Liquid Filling Machine is designed with ease of use in mind. Operators can program the machine to dispense specific volumes of liquid with just a few simple commands. This means that even unskilled operators can use the machine without difficulty, reducing the need for extensive training.

Overall, the Automatic Servo Piston Liquid Filling Machine has quickly become a favorite among manufacturers and producers worldwide. Its precision, efficiency, and ease of use make it an indispensable tool in any liquid product manufacturing process, and a worthwhile investment for any company looking to improve their production capabilities.
