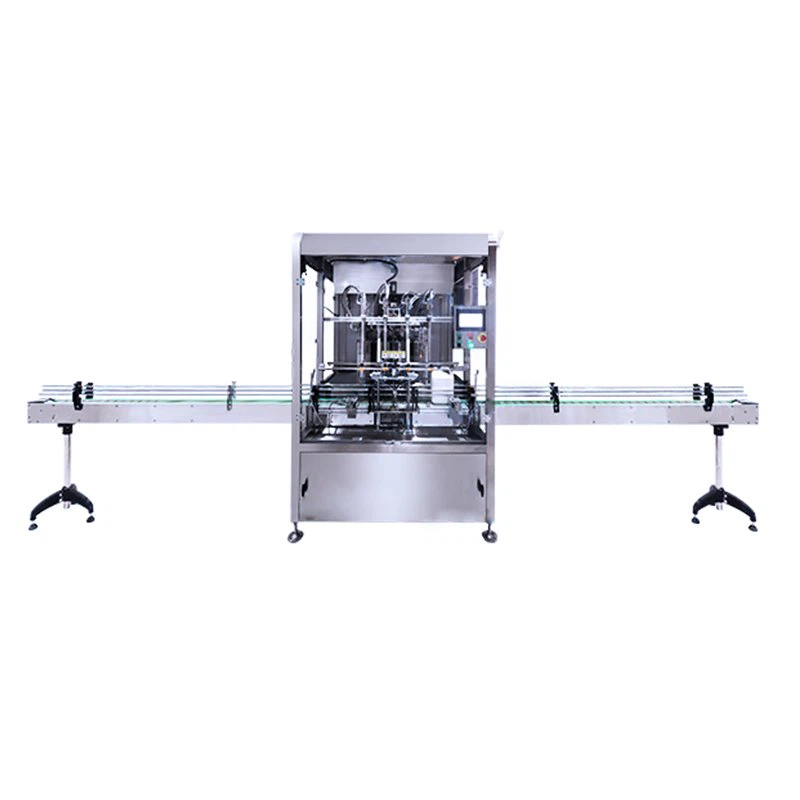

Shampoo Bottle Filler

Introduction of shampoo bottle filler:

The automatic liquid filling machine adopts the principle of plunger quantitative filling, and the bottle feeding, positioning, filling and bottle discharging are automatically controlled by PLC and meets GMP standards. This shampoo bottle filler is suitable for liquid filling of medicine, food, daily chemicals, pesticides and fine chemicals.

Features of shampoo bottle filler:

1.touch screen operation interface

2.4-head submersible filling, effectively preventing foam generation

3.shampoo bottle filler filling accuracy can reach + 0.5%

4.The filling cylinder is hard chromium treated and ground. The unique filling valve design does not leak.

5.No bottle without filling, automatic stop function for bottle accumulation

6.Design different positioning devices according to the actual situation of the bottle

7.shampoo bottle filler is easy to clean,

8.Filling speed

9.PLC programmable control, using German Siemens or Taiwan Delta

10.Electric control adopts French Schneider

11.Pneumatic components adopt Taiwan Yaeko or German Festo

12.The shampoo bottle filler shell material is SUS 304 # stainless steel

13.Equipped with glass protective cover that meets sanitary and safety standards

Note: Filling range and speed can be designed according to user needs.

Technical data of shampoo bottle filler:

Model： RTGZ-5L

Filling volume (ML)：1000-5000ml (can be customized)

Capacity(BPH)：500-600 bottles per hour(4 filling nozzles for 5L)

Voltage(VAC)：220/380V; single/three phases;50/60Hz

Power(KW)：2.0

Air source(MPA)：0.6-0.8MPA

Dimension： 2400*1500*2200(mm)

Weight(KG)：800kg
