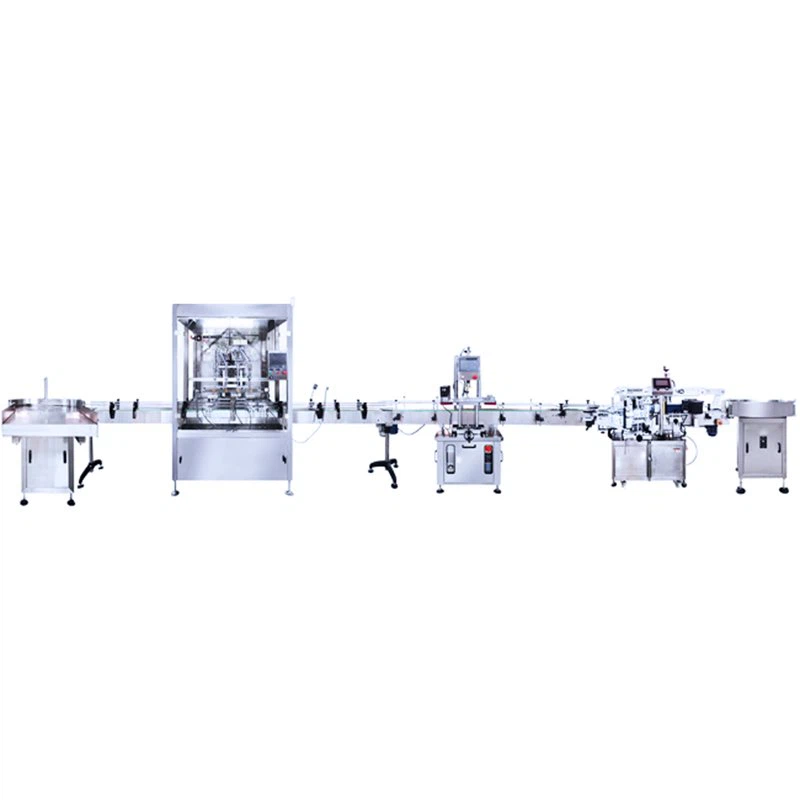

Detergent Filling Machine

Introduction：

Introduction of detergent filling machine. We have improved the design of the paste filling

machine and added some additional functions. Make the detergent filling machine more simple and convenient in operation, precision error, installation adjustment, equipment cleaning, maintenance and so on.

It is widely used in various industries such as food and medicine, and can be filled with different liquid viscous products. The detergent filling machine has compact and reasonable design, simple and beautiful appearance, and convenient adjustment of filling volume.

Features of detergent filling machine:



1. The volumetric injection plug is used to perform filling, with high precision and a wide adjustment dose range. It can adjust the total volume of all pump bodies as a whole, and can also adjust the single pump body slightly, which is fast and convenient.

2. The piston pump filling system does not adsorb materials, has good chemical stability, high temperature resistance, corrosion resistance, wear resistance and long service life.

3. The servo motor is used to control the rotary valve to fill different viscous materials.

4. Pneumatically controlled low-leakage filling needles, without dripping or wire drawing.

5. The high-level liquid tank, the replenishment is controlled by the material level switch.

6. Frequency conversion speed regulation, automatic display count, and no bottle no filling.

7. The whole detergent filling machine is designed according to GMP requirements

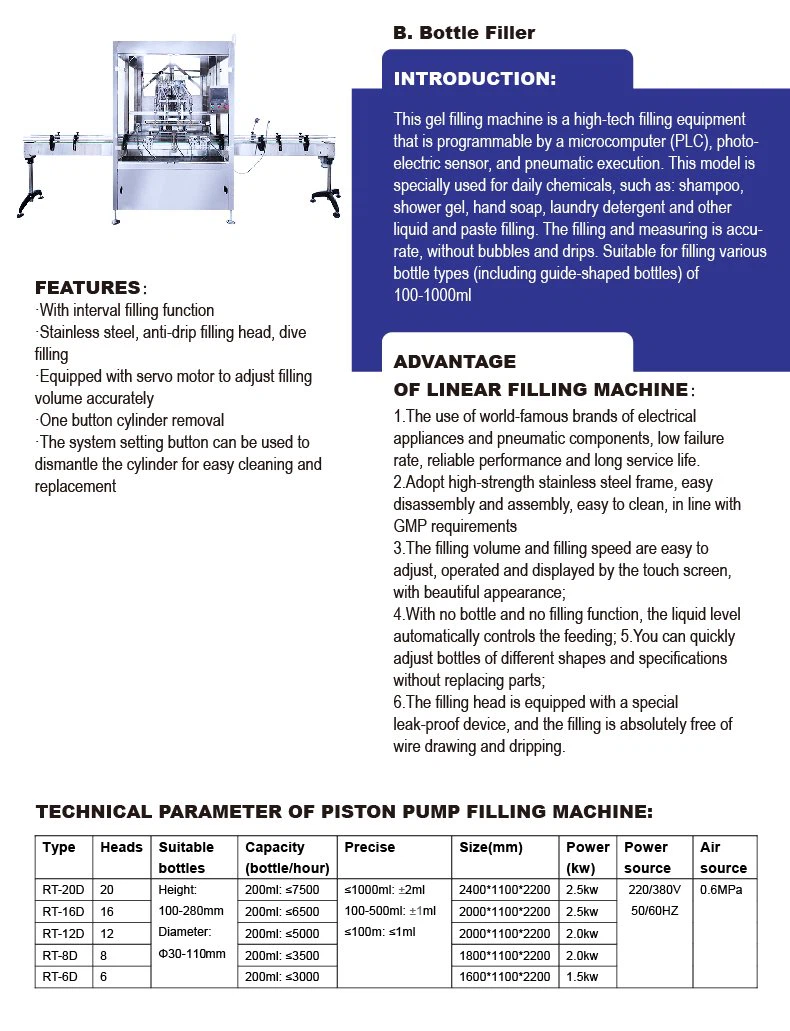

Technical Parameter of detergent filling machine:

Type	Head	Suitable bottles	Capacity (bottle/hour)	Precise	Size(mm)	Power (kw)	Power source	Air source
RT20D	20	Height: 100-280ml Diameter: Φ30-110mm	200ml:≤7500	≤1000ml: ±2ml 100-500ml: ±1ml ≤100ml: ≤1ml	2400*1100*2200	2.5	220/38V 50/60HZ	0.6Mpa
RT16D	16		200ml:≤6500		2000*1100*2200	2.5
RT12D	12		200ml:≤5000		2000*1100*2200	2.0
RT8D	8		200ml:≤3500		1800*1100*2200	2.0
RT6D	6		200ml:≤3000		1600*1100*2200	1.5



Introduction of sprayer capper(parts of detergent filling machine):

The automatic capping equipment is designed with reference to the advanced international models, with high capping speed, high pass rate and easy operation. Applicable to different bottle and shaped screw caps in food, pharmaceutical, daily chemical, pesticide, cosmetics and other industries. The bottle cap closure machine has a high degree of automation, good stability and easy adjustment. No spare parts are required when changing the bottle shape or cap.

Principle of pump capping machine:

1. Electrically controlled movement, strong stability

2. Equipped with positioning device, standard screw cap, easy to operate;

3. Wide range of cap can be used such as mist spray cap, trigger pump head, flip top cap and so on.

4. The speed of lid sealing is adjustable, and the tightness can be adjusted according to different bottle caps.



Features of cap tightening machine:

1. Stainless steel material frame and never rust

2. The bottle screwing machine has good compatibility and can be used for various bottle caps. And the operation is simple.

3. Excellent flexibility, can be adjusted according to the height of the bottle and the size of cap, and the elasticity can be adjusted according to customer requirements.

4. The rubbing cap wheel is made of wear-resistant silicone, which does not hurt the bottle cap.

5. The duckbill cap (pump head, spray head, etc.) is more advantageous, and the direction of the mouth head is uniform.

6. Equipped with lid pressing function(option)

7. can be used in the filling production line of detergent filling machine.



Technical parameter of cap screwing machine:

Model：RTC-4

Power supply voltage (V/Hz)：AC 220/50 110/60 (can be customized)

Power (W)：1500

Sealing height (mm)：38-300 (customizable)

Adapt to cover diameter (mm)：15-17 (can be customized)

Adapt to bottle diameter (mm)：35-140 (can be customized)

Working pressure (mpa)：0.3-0.5

Output (bottle /min)：30-50

Dimensions：2000*800*1600(mm)

Net weight (kg)：250

Detergent filling machines are an essential tool for the manufacturing industry and a significant contributor to our daily lives. These machines, designed to fill detergent bottles and other cleaning solutions, play a critical role in ensuring that we enjoy the cleanliness and hygiene that we deserve.

The detergent filling machine offers a quick and efficient solution for filling detergent bottles in the manufacturing process. With the rise in demand for detergents and cleaning solutions, these machines have become an integral part of the manufacturing process, facilitating the production of large quantities of detergents and cleaning solutions in a short time.

Moreover, detergent filling machines eliminate the need for manual labor, ensuring that the production process is streamlined, and the products produced are of a consistent quality. These machines also help minimize wastage of detergent, which means that the manufacturing process is sustainable.

With the use of advanced technology, detergent filling machines are now more accurate and precise. They can be customized to meet the specific needs of the manufacturer, ensuring that the production process is efficient, reliable, and cost-effective.

In conclusion, the detergent filling machine is an essential tool for the manufacturing industry. It plays a crucial role in ensuring that we have access to high-quality cleaning solutions, and its efficiency and accuracy make it an investment worth considering for any manufacturer. With the continued advancement in technology, we look forward to even more innovations that will take this critical piece of machinery to the next level.
