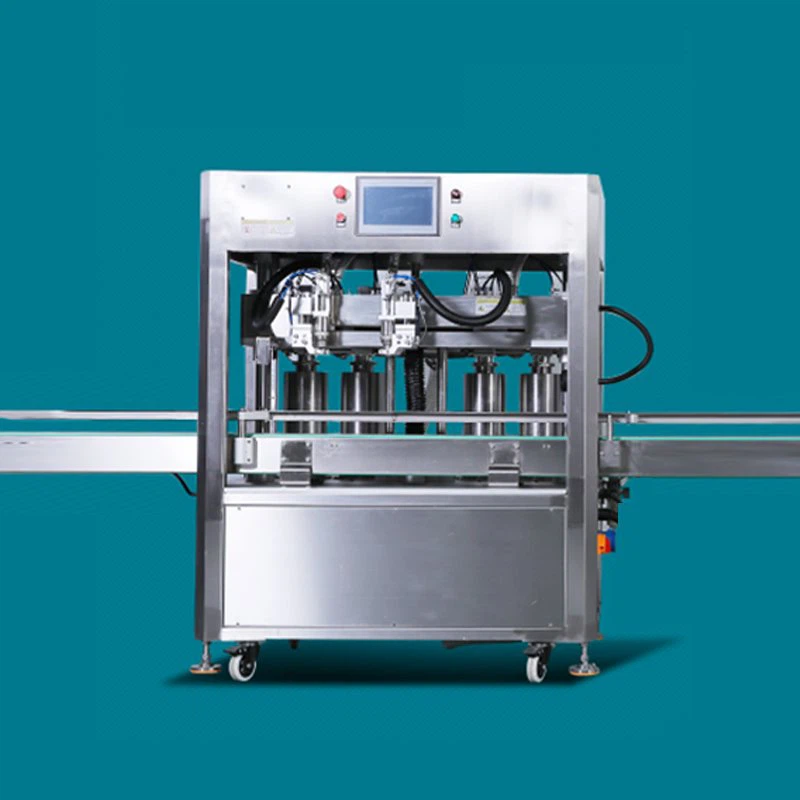

Tomato Paste Filling Machine

Accurate metering | Mobile filling | No bottles and no filling | High versatility

Product principle:

The tomato paste filling machine adopts servo motor control, which has fast filling speed and accurate filling. Full touch screen control. Easy to operate and quick to adjust. Switching bottle types requires only a touch screen to adjust the height and filling volume without any tools. And the bottle pattern data can be saved. The next filling can be filled with one click. Bottle patterns of different shapes and specifications can be filled, which solves the problem of filling difficulties in special-shaped bottles. This tomato paste filling machine does not have a piston and three-way valve, washing machine does not need to be disassembled and cleaned quickly and conveniently. Bottle guardrail adjustment is quick. One press in place. No tools required.

This tomato paste filling machine is fully automatic and intelligent, just save the basic parameters of the product to set the number, the next time you need to produce this product, just call up the saved number. The size and position of the bottle do not need to be manually adjusted, but are automatically adjusted. The tomato paste filling machine will automatically detect the speed of the bottle, and automatically find the right bottle mouth position to synchronize the movement of filling. For example, products from 100ML to 5000ml can be completed in only 3-5 seconds, which is especially suitable for the production of more varieties and small quantities of products.

Product Description:

Follow-up type high-speed double-end filling machine capping line, by chain plate conveyor, bottle clamping automatic alignment mechanism, filling mechanism, automatic servo following system, servo torque capping system, electric lifting and closing adjustment mechanism, electric lid feeding mechanism, water and electricity cabinet, touch-type man-machine operation interface, etc., can be applied to different specifications of bottle automatic filling and capping equipment.

【Two-head mobile filling machine】

Performance configuration:

1. Standard cylinder capacity (standard) 100ml ~ 1000ml (45 ~ 60 bottles / min) self-extracting (can add automatic replenishment tank 200L); take the production of shampoo as an example: 250ml (more than 60 bottles / min); 500ml (50 bottles / min); 1000ml (45 bottles / min)

2. Customized cylinder capacity 300ml ~ 3000ml (40 ~ 55 bottles / min) must be equipped with automatic feeding storage cylinder 200L

3. The customized cylinder capacity of 500ml ~ 5000ml (22 ~ 50 bottles / min) must be equipped with automatic feeding storage cylinder 200L;

taking the production of laundry detergent as an example:

1.2000ml (40 bottles / min); 3000 pieces / 8 hours (6 bottles); 35 tons of material / 8 hours; 2.5000ml (20 bottles / min); 2400 pieces / 8 hours (4 bottles); 45 tons of material / 8 hours;

【Four-head mobile filling machine】

Efficient filling:

1. Follow-type high-speed tomato paste filling machine, using sensors to accurately find bottles, follow-up filling, no pause in the production process, about 500ml capacity can fill 40-60 bottles per minute.

2. The traditional multi-head tomato paste filling machine is expensive, the production process of the bottle must be stopped, the filling speed is slow.

Intelligent tuning:

1. The follow-up high-speed tomato paste filling machine can complete the debugging of bottles of different shapes, different heights and different capacities in just a few minutes, enter the next wave of production, and completely solve the problem of time-consuming and laborious due to a wide variety of types, small number of single products, and frequent adjustment.

2. The traditional tomato paste filling machine needs to be repeatedly debugged to re-enter production, which is labor-intensive and labor-intensive, and it is not applicable to some special-shaped bottles at all.

Screw cap torque controllable:

1. Follow-up high-speed capping machine, using servo motor to drive the capping, can achieve a constant torque capping, to avoid the phenomenon of over-tightening or over-loosening of the capping.

2. Traditional capping machine often appears to be too tight or too loose due to the difference in bottle caps.

Features:

1. Fast adjustment: the conversion of bottle products is fast, there is a recipe preservation function, and a button after saving parameters can complete the adjustment, saving time is very convenient and practical;

2. Wide range of bottle types: as long as it can stand on the line without pouring, the bottle mouth is vertically upwards of various special-shaped bottles are also applicable, without special adjustment, the bottle can be placed on the transport at will, greatly reducing the labor intensity of workers;

3. High efficiency: fast filling speed, good stability, each filling capacity cylinder is controlled by the brand servo motor, and the filling accuracy is high;

4. Screw cap without omission: screw cap with double screw cap, screw cap torque adjustable, pump head can be located, double lane insurance screw cap to ensure that high-end products also meet customer requirements;

5. Easy to clean: hoop connection fixing method, cylinder block and piston rod separation connection, no need to use the tool can be partially disassembled and cleaned, the main control screen is provided with automatic cleaning buttons. The top-of-the-machine perspective window storage tank is equipped with an automatic flushing turning head for automatic cleaning; the mobile external storage tank is convenient for pulling and washing the cleaning room; it is optional according to customer needs.

Wide range of applicable products of tomato paste filling machine:

Paste oil products for cosmetics and food industry:

Such as: shampoo, laundry detergent, hand sanitizer, shower gel, conditioner, acidic milk, essential oils, food/industrial oils, etc.;
