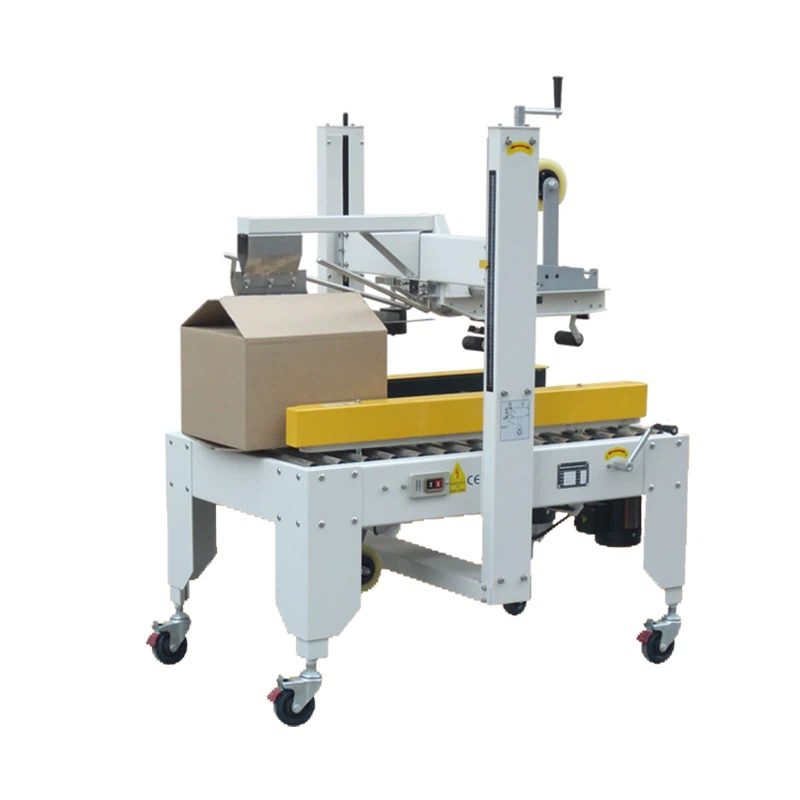

Semi-Automatic Folding And Sealing Machine

Semi-automatic folding and sealing machine, in addition to manually semi-automatically complete the push of the back cover of the carton, the rest can realize the automatic folding and tape sealing of all upper box covers. Labor-saving, greatly improving the sealing operation. The adjustment method of large and small cartons is simple, and the carton has a wide range of applications.

Left and right + up and down drive sealing machine adopts instant tape to seal the carton seal, economical, fast, easy to adjust, can complete the upper and lower sealing action at one time, can also use printing tape, can also improve the product image, light volume, pulley complementary, displacement is very flexible, more convenient installation and commissioning.

Application Industry of Semi-automatic folding and sealing machine:

This Semi-automatic folding and sealing machine is widely used in food, medicine, toys, tobacco, daily chemical, electronics and other domestic and foreign industries.

Product features of Semi-automatic folding and sealing machine:

1. Manufactured by independent research and development technology, and selected imported parts and electrical components;

2. According to the specifications of the carton, automatically adjust the width and height;

3. Add belt drive on both sides, suitable for sealing larger and heavier products, economical, stable and fast

4. Equipped with blade guard. Avoid accidental puncture injuries during operation;

5. Simple operation, economical and durable, safe, lowest failure rate.

Product parameters of Semi-automatic folding and sealing machine:

Machine Model: RT-C50A

Transmission speed: 0-20m/min

Maximum package size: L600mm; W500mm; H500mm

Minimum packing size: L150mm; W150mm; H150mm

Power used: 220/380V 50Hz consumption power 200W

Applicable tape: W48mm/60mm/75mm to choose one to use

Machine size: L1180mm; W850mm; H1450mm (without front and rear roller carriers).

Machine weight: 180kg

Control panel:

Simple panel, Chinese and English display, with emergency stop switch, convenient and safe.

Box sealing movement:

Equipped with blade protection device to avoid accidental puncture during operation, suitable for adhesive paper sealing boxes in various industries, tape size W: 48mm / 60mm / 75mm L: 1000 yards of tape, avoid the trouble of frequent replacement of adhesive paper, effectively improve work efficiency.

Sealing machine cylinder:

The cooperative cylinder makes the machine more stable and stable.
