Automatic Bottle Loading, Filling & Capping Machine – Integrated Liquid Packaging Solution
Our fully automatic system combines bottle loading, precise liquid filling, and secure capping in a single line, streamlining your production process. Designed for liquids such as water, juice, oils, sauces, lotions, and cosmetic products, this machine ensures consistent quality, high efficiency, and easy cleaning with food-grade stainless steel construction. Ideal for medium to large-scale operations seeking reliability and productivity.
Description
Products introduction

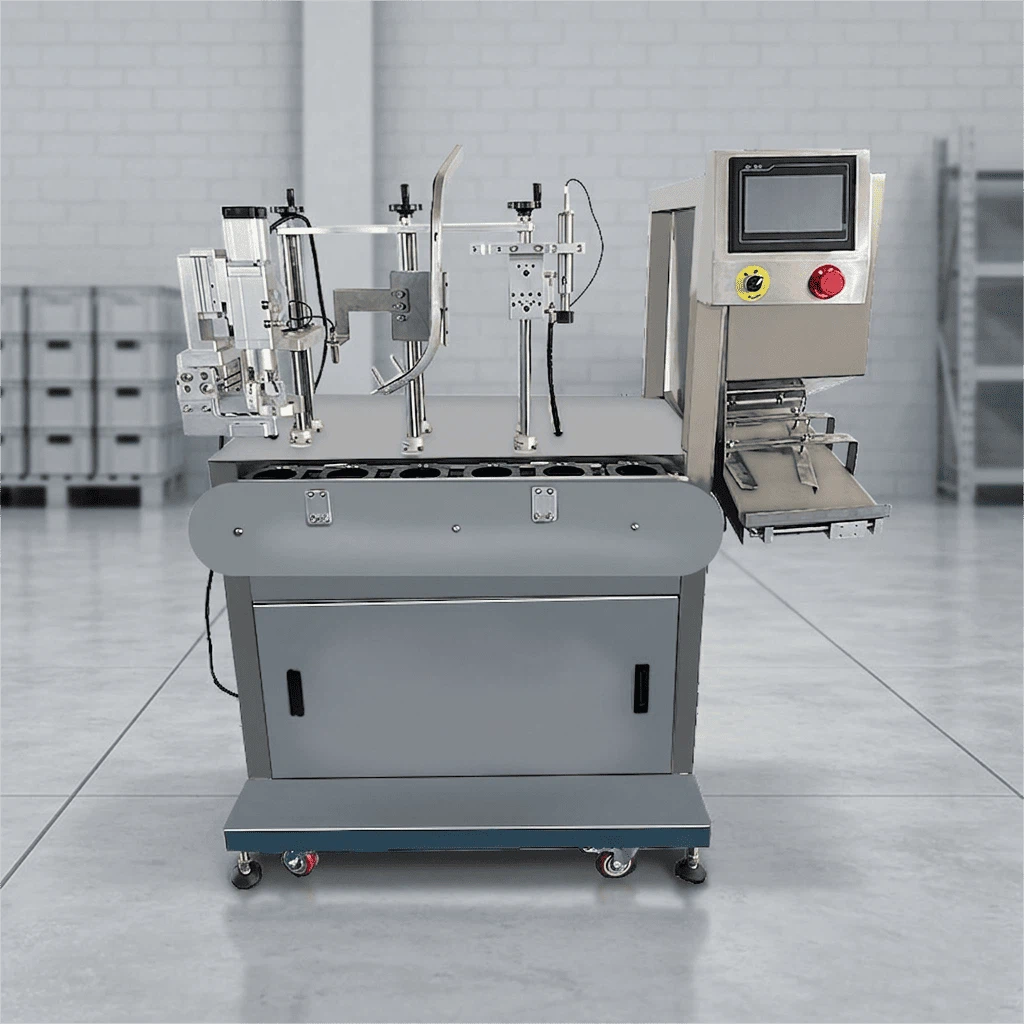

Automatic Bottle Loading, Filling & Capping Machine – Integrated Liquid Packaging Solution
This fully automatic machine integrates bottle loading, liquid filling, and cap ping in one compact system, ideal for small to medium-scale production.
Key features:
All-in-One Operation: Automatic bottle feeding, accurate liquid filling, and reliable capping in a single line.
High Accuracy & Stability: Servo or piston system ensures precise dosing, even for viscous liquids.
Versatile Applications: Suitable for food, beverage, cosmetics, pharmaceuticals, and chemical industries.
Hygienic Design: Stainless steel contact parts (SS304/SS316), easy to clean and maintain.
Customizable & Efficient: Adjustable filling volume, capping torque, and speed; suitable for various bottle shapes and sizes.
Products parameter
| Bottle diameter |
Φ15mm- Φ50mm
|
| Bottle height | 50mm-250mm (customizable) |
| Filling capacity | 3 mL or more (adjustable) |
| Filling accuracy |
±1%
|
| Filling method | magnetic gear pump |
| production capacity | 15-30 bottles per minute |
| power |
3kw(220V 50Hz)
|
| External dimensions (cm) |
120㎝×80㎝×150㎝
|
| Main unit weight (kg) |
220kg
|
Products application
Filling Materials
Daily Chemical Industry
Hand Sanitizer, Laundry Detergent, Shower Gel, Shampoo,etc.
Food Industry
Vinegar, Soy Sauce, Tomato Sauce, Peanut Butter, Oil, etc.
Beverage Industry
Milk, Fruit Juice, Water, etc.
Cosmetics Industry
Face Cream, Body Lotion, Toner, Eye Cream, Cleansing Oil, etc.
Bottle Compatibility
Glass Bottle
Plastic Bottle
Square Bottle
round Bottle
Products Details
6 stations. Servo-driven chain with 14 fixtures for indexing.
Servo 3-jaw, adjustable torque. Cap detector.
Insert nozzle. Servo pump. ±1% accuracy.

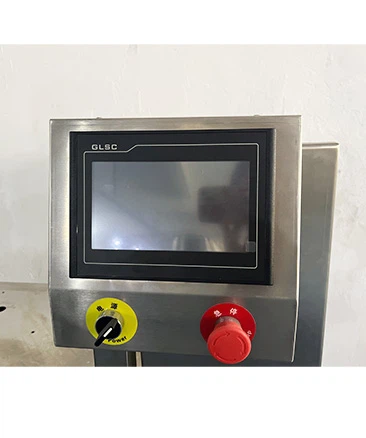

PLC control. Fully automatic sync.

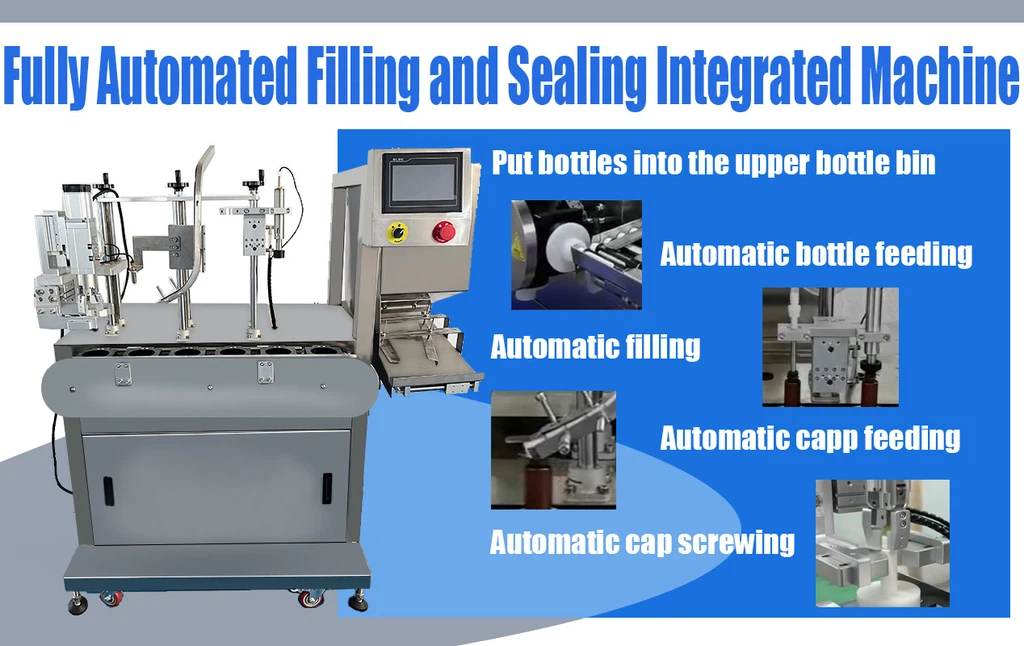

1. 6 stations; servo motor drives circular chain for intermittent movement, 14 fixtures move equidistantly.
2. After automatic bottle feeding, filling starts only when the sensor detects bottles; capping starts only when the sensor detects capped bottles.
3. Insert-type filling nozzle (air cylinder driven) to avoid material dripping; servo-driven magnetic gear pump for metering, filling accuracy ±1%.
4. Equipped with vibratory bowl cap feeder to convey caps to the capping track.
5. Servo three-jaw capping, adjustable torque.
6. Material-contacting parts are made of high-quality stainless steel and silicone hoses; quick-change devices for easy cleaning.
7. Heated and insulated hopper can be customized for materials requiring heating and heat preservation.
faq
faq
Q:1.Is the machine fully automatic?
A:Yes, it integrates bottle feeding, liquid filling, and capping in one line. Minimal manual intervention is required. Optional conveyors can automate bottle transfer from previous or next production steps.
Q:2.Is it easy to operate and maintain?
A:Yes, the machine features a user-friendly control panel (PLC + touch screen), with intuitive operation. Cleaning and maintenance are simple due to hygienic stainless steel contact parts.
Q:3.Can it handle different bottle sizes on the same line?
A:Yes, the machine can be adjusted for different bottle heights and diameters, usually by changing the star wheel, guides, or filling/capping heads.
Q:4.What material is in contact with the product?
A:All product-contact parts are made of food-grade stainless steel (SS304/SS316), and compliant with hygiene standards.
Q:5.Do you provide technical support and after-sales service?
A:Yes, we provide installation guidance, training, online support, and spare parts to ensure smooth operation.
Q:6.Can I test my product on the machine before purchasing?
A:Absolutely. Customers can send samples, and we provide testing and video demonstration to ensure compatibility and performance before shipment.
