Filling Machine Suitable For Corrosive Liquids, Chemical Solvents, Pesticides, And Daily Chemical Products.

Filling Machine Suitable For Corrosive Liquids, Chemical Solvents, Pesticides, And Daily Chemical Products.

This machine is specifically designed for the quantitative filling of special materials such as corrosive liquids, strong acids, strong alkalis, chemical solvents, pesticides, and daily chemical products. All parts that come into contact with the materials are made of corrosion-resistant materials, including 316L stainless steel and PTFE (polytetrafluoroethylene) / PP (polypropylene), together with specially designed anti-corrosion seals, effectively resisting chemical corrosion and ensuring long-term stable operation.

Description

Introduction

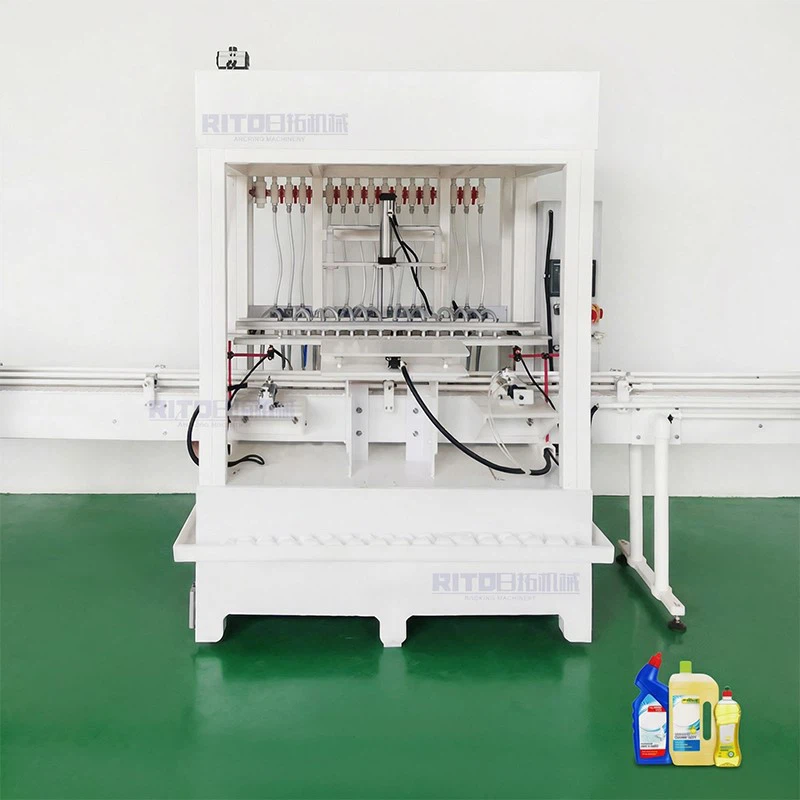

This machine is specifically designed for the quantitative filling of special materials such as corrosive liquids, strong acids, strong alkalis, chemical solvents, pesticides, and daily chemical products. All parts that come into contact with the materials are made of corrosion-resistant materials, including 316L stainless steel and PTFE (polytetrafluoroethylene) / PP (polypropylene), together with specially designed anti-corrosion seals, effectively resisting chemical corrosion and ensuring long-term stable operation.

The filling system can be equipped with either a pneumatic piston type or a servo motor driven type, offering high filling accuracy, fast speed, and no dripping. The machine features a compact structure and is easy to operate. It can be used independently or integrated with capping machines, labeling machines, etc., to form a fully automatic anti-corrosion filling line.





6





Key advantages
01.

All product-contact parts are treated with anti-corrosion protection

02.

Drip-proof filling nozzle design eliminates leakage

03.

Customizable explosion-proof configuration for flammable and explosive environments

04.

Adjustable filling range to accommodate different container sizes



Applicable

1470712423408506201

Applicable Industries:



1.Chemical industry: Sulfuric acid, hydrochloric acid, nitric acid, phosphoric acid, acetic acid, sodium hydroxide, potassium hydroxide, ammonia water



2.Pesticide industry: Glyphosate, lambda-cyhalothrin, herbicides, insecticides



3.Daily chemical industry: Toilet bowl cleaner, bleach, drain cleaner, disinfectant liquid



4.Water treatment industry: Sodium hypochlorite, hydrogen peroxide, flocculants, scale inhibitors



5.Solvents: Methanol, ethanol, acetone, toluene, ethyl acetate



Filling capacity 500-5000ml
Filling form self flow
Filling accuracy ±0.3%
Material Pp filling frame
Air pressure 0.6-0.8MPa
Filling speed about 2000 bottles / hour(1L)
Power about 2.2KW/220V
Product details



2025101410261820563

Touchscreen Control Panel

Smart HMI with intuitive operation. Features a high-brightness color touchscreen for easy parameter setting and real-time monitoring.

2025101410261620533

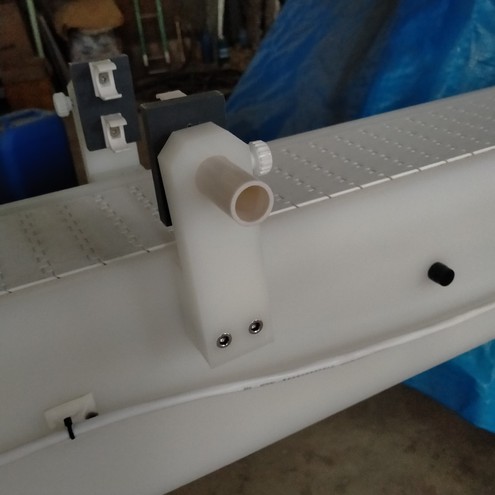

PP Conveyor Belt

Corrosion-resistant conveyor platform designed for acidic and alkaline environments, ensuring long-term durability and easy cleaning.

2025101410264320773

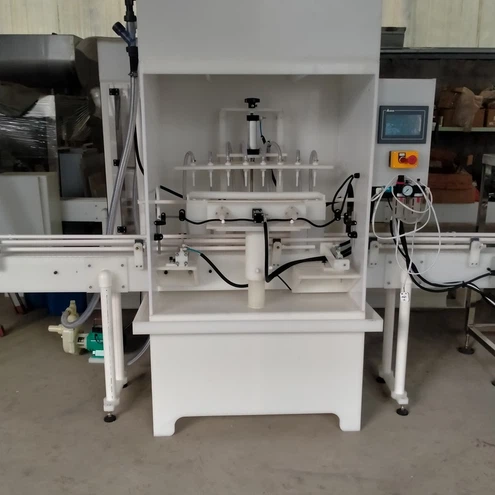

Anti-Drip Filling Nozzle

Precision shut-off mechanism eliminates dripping, protecting both the bottle finish and the working environment.

2025101410262120593
2025101410262220603
2025101410262320613
2025101410262820663
2025101410263120683
2025101410263720733
2025101410264020753



FAQ





1

01.What materials is the anti-corrosion filling machine suitable for?

This machine is specifically designed for corrosive liquids. Typical materials include sulfuric acid, hydrochloric acid, nitric acid, sodium hydroxide, potassium hydroxide, ammonia water, pesticides, toilet bowl cleaner, bleach, disinfectant, etc.

02.What materials are used for the parts that come into contact with the product?

The components that come into direct contact with the material are made of PTFE corrosion-resistant material.

03.Is the conveyor belt also anti-corrosion?

Yes. Under standard configuration, the conveyor belt is made of PP (polypropylene) material.

04.What is the filling accuracy?

The filling accuracy is typically ±0.3%.

05.What about filling materials that tend to foam easily?

For foam-prone materials, a submerged filling nozzle can be selected.
