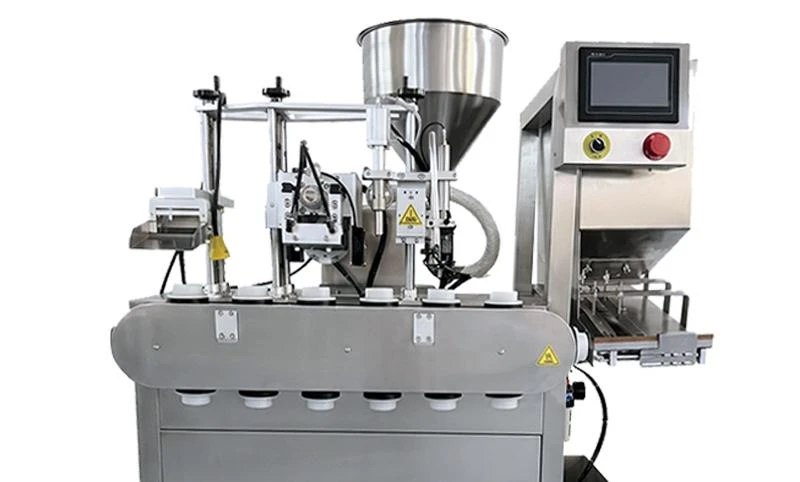

Linear Tube Sealing Machine

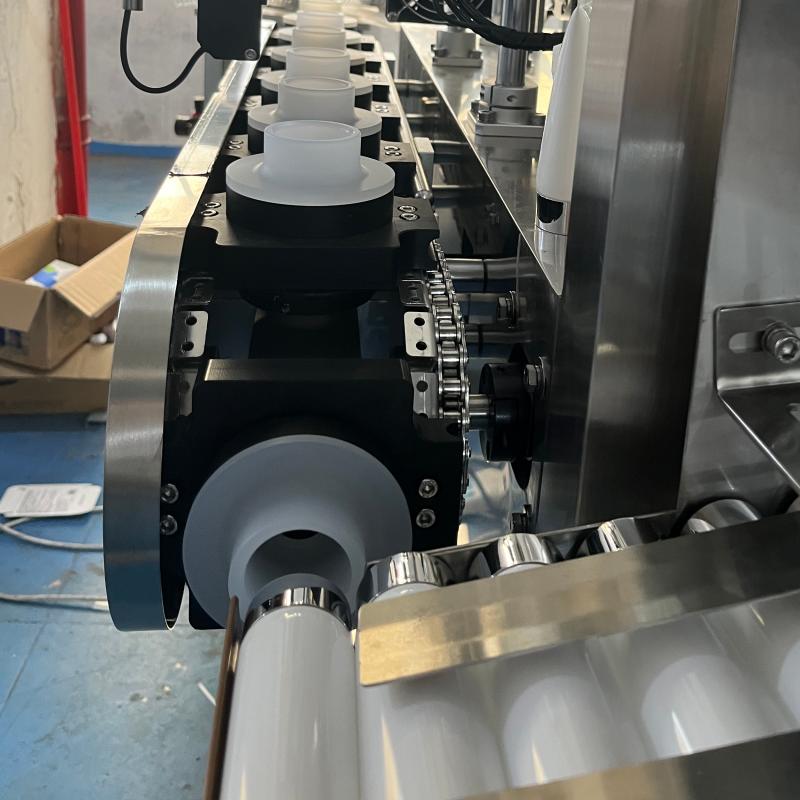

The Linear Tube Sealing Machine is designed for efficient and consistent sealing of flexible tubes used in cosmetics, personal care, pharmaceuticals, food, and daily chemical industries. Featuring a linear conveying system, the machine can be configured with automatic tube positioning, sealing, trimming, and finished tube discharge to improve production efficiency and reduce manual operation.
Description
Linear Tube filling and Sealing Machine
The Linear Tube Sealing Machine is designed for efficient and consistent sealing of flexible tubes used in cosmetics, personal care, pharmaceuticals, food, and daily chemical industries.
Featuring a linear conveying system, the machine can be configured with automatic tube positioning, sealing, trimming, and finished tube discharge to improve production efficiency and reduce manual operation.
Applications:
Cosmetics:
Hand cream, face cream, sunscreen, facial cleanser
Personal Care:
Toothpaste, hair conditioner, body lotion
Pharmaceuticals:
Ointments, gels, topical creams
Food:
Tomato sauce, honey, condiment sauces
Industrial Products:
Adhesives, sealants, lubricating grease
Working Process:
| Dimensions (L × W × H) | 120 × 80 × 150 cm |
| Weight | Approx. 220 kg |
| Power Supply | 4.5 kW (220V, 50Hz) |
| Compressed Air Pressure | 0.6–0.8 MPa |
| Production Capacity | 15–25 tubes/min |
| Filling Accuracy | ±1% |
Product details

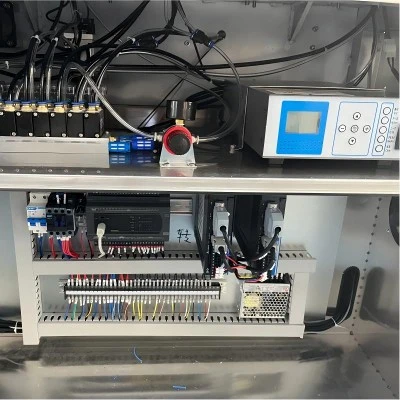

PLC Control + Touchscreen
Programmable logic controller with a 7-inch HMI. Easy to set filling volume, sealing time, and production speed. Supports multiple recipe storage.

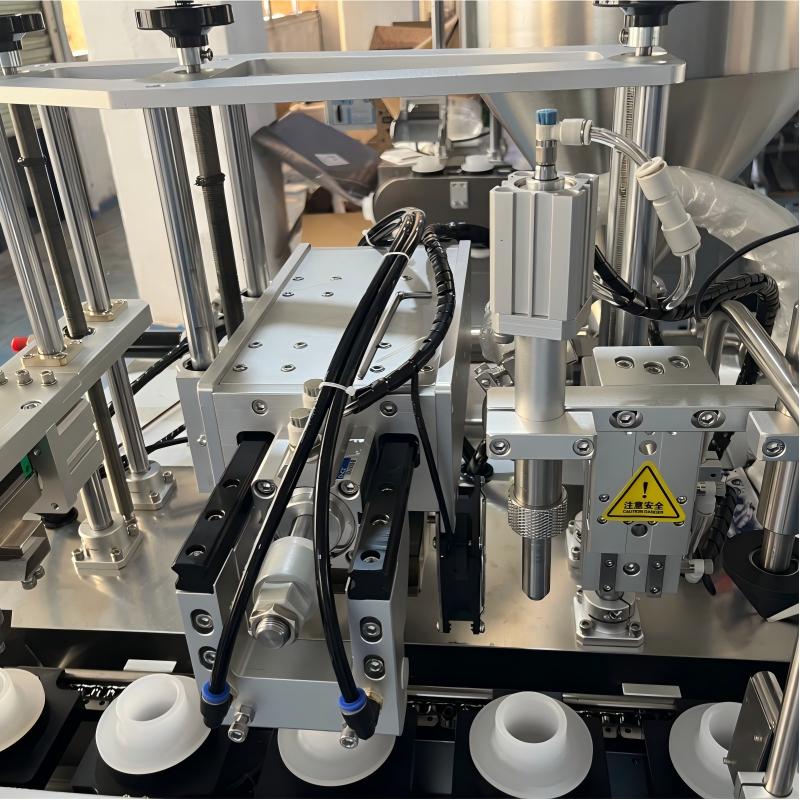

Tube Positioning & Detection
Photoelectric sensor detects tube presence. No tube = no fill. Prevents waste and spills.
Ultrasonic sealing
Ultrasonic sealing ensures clean, airtight, and wrinkle-free tube tails. Suitable for plastic and laminate tubes.
Linear Ultrasonic Tube Filling and Sealing Machine –FAQ
1. Does the machine support fully automatic tube feeding?
Yes. The machine can be equipped with an automatic tube magazine and feeding system to automatically load tubes into the tube holders, reducing manual operation and improving production efficiency.
2. What products can be filled with this machine?
The machine is suitable for a wide range of cream, paste, gel, and semi-liquid products, including hand creams, facial cleansers, sunscreens, toothpaste, pharmaceutical ointments, cosmetic creams, and other compatible products.
3. What is the production capacity of the machine?
The machine has a rated production capacity of 15–25 tubes per minute. Actual output depends on the filling volume, product viscosity, tube dimensions, and operating conditions.
4. Does the machine require a cooling system?
Yes. The machine is equipped with a cooling system for the ultrasonic welding head. The cooling device is included in the machine configuration.
5. Can the machine handle different tube sizes?
Yes. The machine can be adapted to different tube diameters and lengths by changing the appropriate tooling and adjusting machine settings. Additional tooling may be required for different tube specifications.
6. Does the machine support eye-mark positioning?
Yes. An optional photoelectric eye-mark detection system can identify printed registration marks on tubes, helping maintain consistent tube orientation before sealing.
