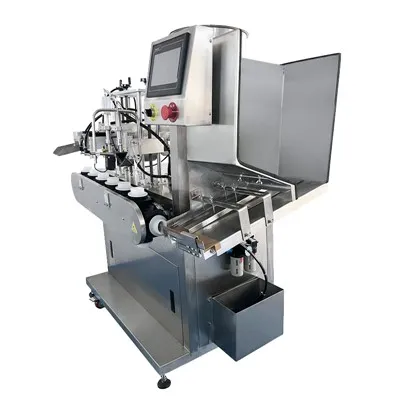

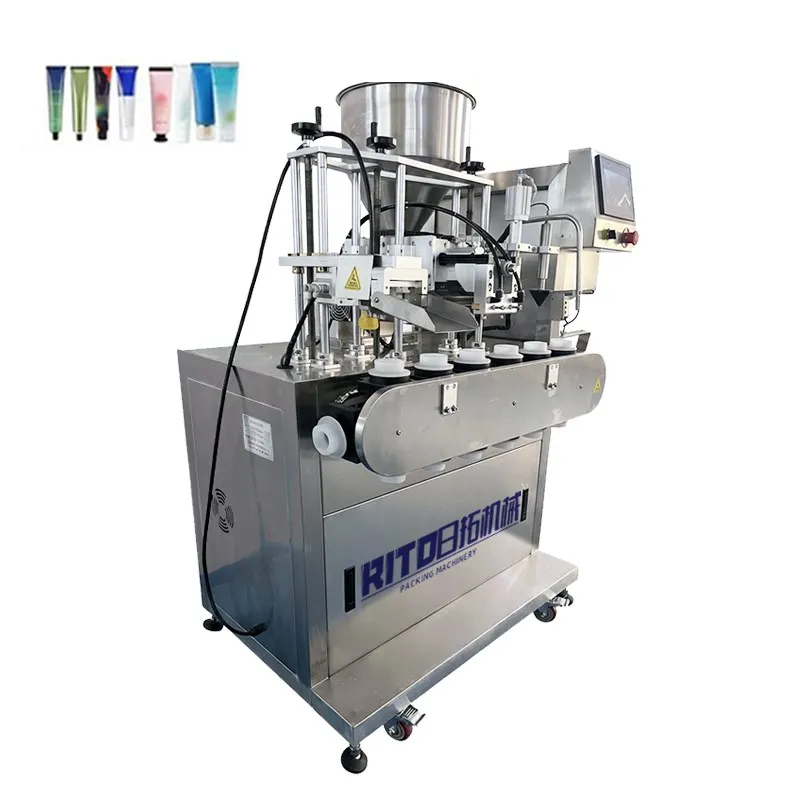

Tube Filling & Sealing Machine – Compact, Efficient, Reliable

Tube Filling & Sealing Machine – Compact, Efficient, Reliable

This machine is designed for filling and sealing tubes of various sizes and materials, including plastic, laminate, and aluminum tubes. It integrates filling, sealing, and trimming in one automatic system.

Send Inquiry

Description

Introduction


The machine adopts a PLC control system with a user-friendly touchscreen interface. It accurately fills paste, cream, gel, or liquid products into tubes and seals the tail via ultrasonic or heat sealing technology.



Key Benefits:

1.Clean & airtight sealing – Ultrasonic or heat sealing for wrinkle-free tube tails



2.Easy operation – Touchscreen with recipe storage for different products



3.Flexible – Suitable for plastic, laminate, and aluminum tubes

12
Applicable

21

Applicable Industries:



This machine is widely used in:



1.Cosmetics – Face cream, sunscreen, toothpaste, hair gel, lotion



2.Pharmaceuticals – Ointments, antibiotic creams, gels, medical adhesives



3.Food – Condensed milk, tomato paste, honey, mayonnaise, sauce



4.Chemicals – Glue, sealant, lubricant, shoe cream, paint





Dimensions (L × W × H) 120 × 80 × 150 cm
Weight Approx. 220 kg
Power Supply 4.5 kW (220V, 50Hz)
Compressed Air Pressure 0.6–0.8 MPa
Production Capacity 15–25 tubes/min
Filling Accuracy ±1%
Product details



2

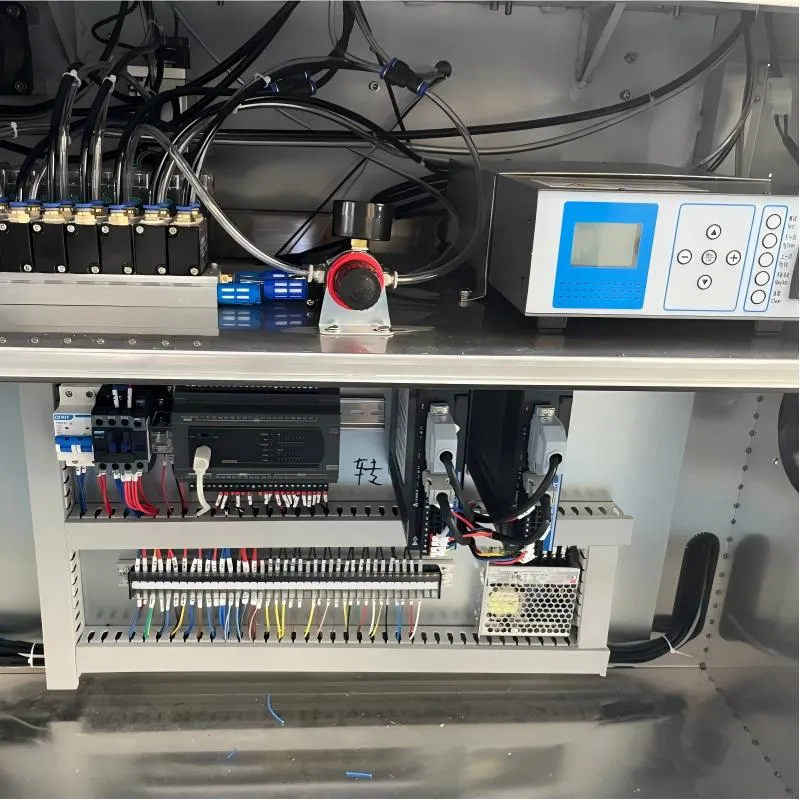

PLC Control + Touchscreen

Programmable logic controller with a 7-inch HMI. Easy to set filling volume, sealing time, and production speed. Supports multiple recipe storage.

3

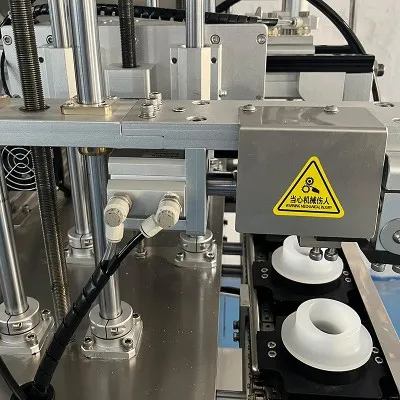

Tube Positioning & Detection

Photoelectric sensor detects tube presence. No tube = no fill. Prevents waste and spills.

20260302134500311921

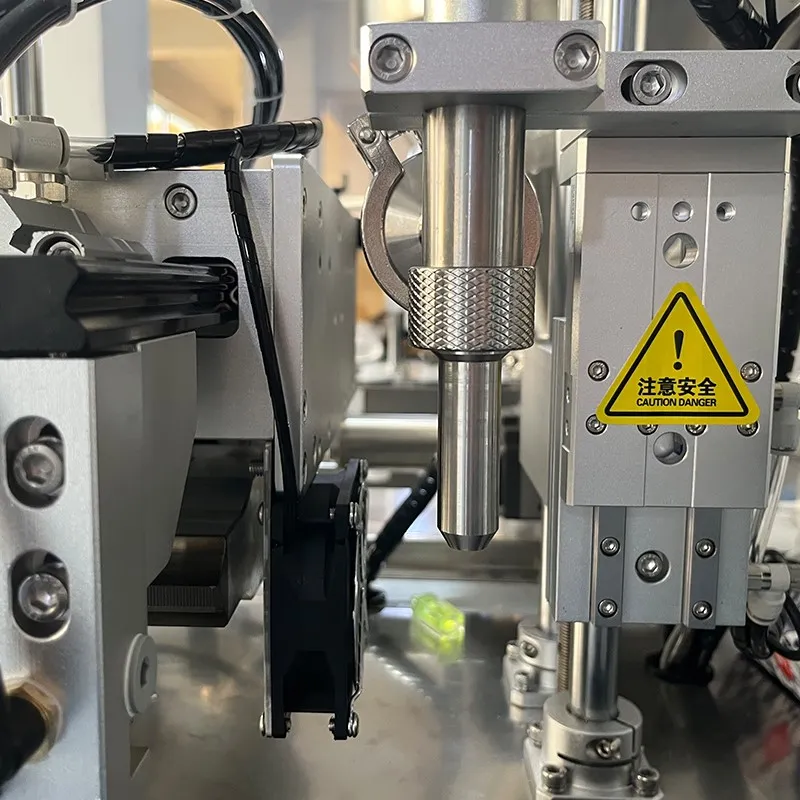

Ultrasonic sealing

Ultrasonic sealing ensures clean, airtight, and wrinkle-free tube tails. Suitable for plastic and laminate tubes.

4
5
1
20260302134448311621




FAQ





10

01.Can it fill both paste and liquid?

Yes. The piston filler is ideal for paste and cream. For low-viscosity liquid, a gear pump option is available.

02.Does it require molds for different tube sizes?

Yes. Different tube diameters require different sealing molds. We provide one set of molds with the machine.

03.Do you provide installation support?

Yes. We provide a detailed video manual and remote support.

04.What is the filling accuracy?

The accuracy is ±1%.
