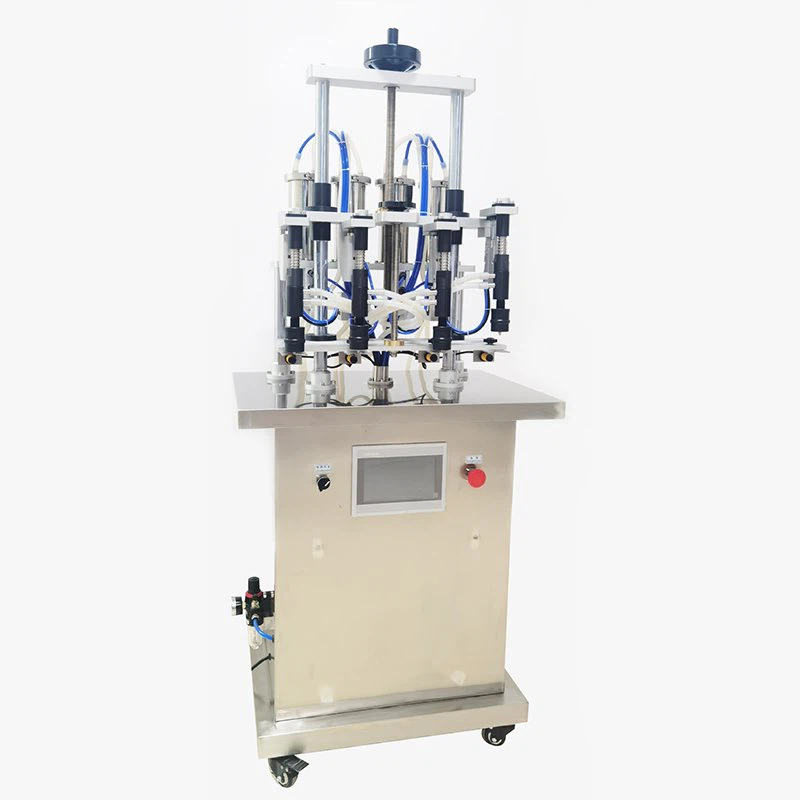

Perfume Bottle Filling Machine

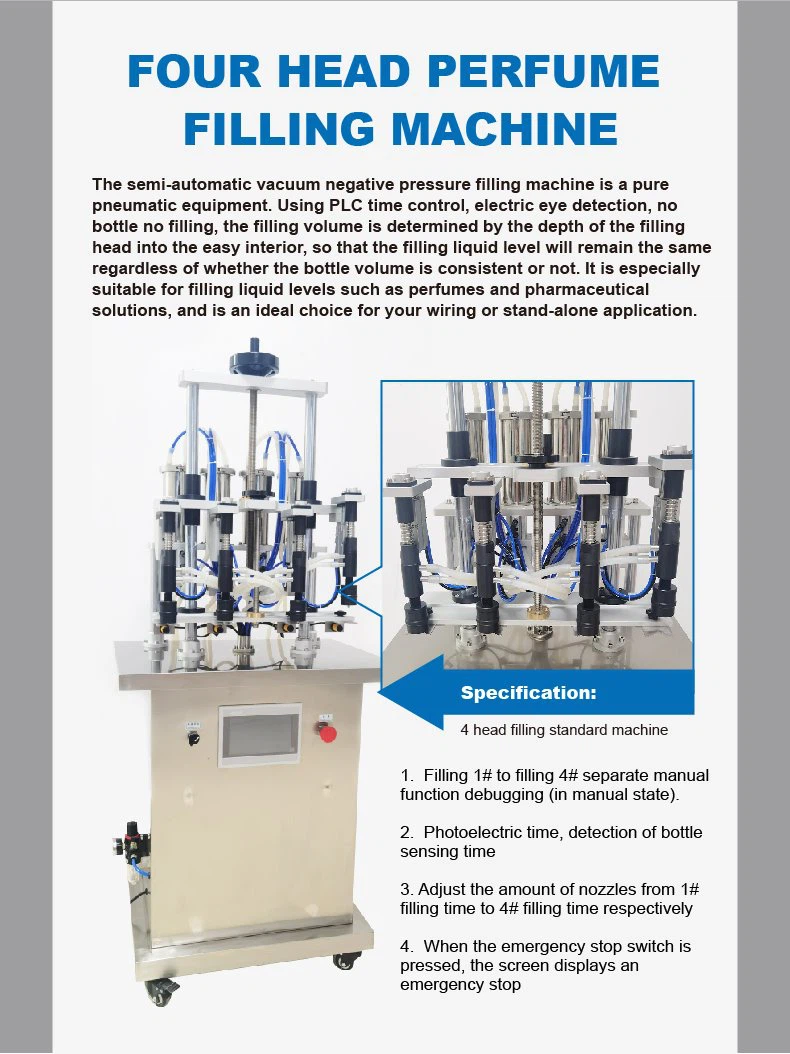

The semi-automatic vacuum negative pressure perfume bottle filling machine is a pure pneumatic equipment. Using PLC time control, electric eye detection, no bottle no filling, the filling volume is determined by the depth of the filling head into the easy interior, so that the filling liquid level will remain the same regardless of whether the bottle volume is consistent or not. Perfume bottle filling machine is especially suitable for filling liquid levels such as perfumes and pharmaceutical solutions, and is an ideal choice for your wiring or stand-alone application.

Specification of perfume bottle filling machine:

4 head filling standard machine

1.  Filling 1# to filling 4# separate manual function debugging (in manual state).

2.  Photoelectric time, detection of bottle sensing time

3. Adjust the amount of nozzles from 1# filling time to 4# filling time respectively

4.  When the emergency stop switch is pressed, the screen displays an emergency stop

Control of perfume bottle filling machine

pure pneumatic, simple operation, stable performance, easy to disassemble and wash

Filling head (double):

outer diameter 8 mm, inner diameter 6 mm (outer layer),

outer diameter 4 mm, inner diameter 2 mm (inner layer).

How perfume bottle filling machine works

The filling head achieves the effect of sealing the bottle, and the vacuum generator is used to generate vacuum on the bottle, so as to achieve vacuum filling

Characteristic of perfume bottle filling machine

Using time control, electric eye detection, the machine has the characteristics of filling fixed liquid level, filling head has double pipe, one filling, one to fill excess materials back into the raw material barrel, reducing the waste of raw materials.

Parameter of perfume bottle filling machine

Filling accuracy: 1mm

Piston cylinder capacity: 2-1000ml (one specification).

Air source: After drying treatment, the working air pressure ≥ 6kg/cm2, and the air consumption varies with the size of the output

Weight: Approx. 40kg

Tray: Height adjustment

Working principle: negative pressure

Material type: liquid

Number of filling heads: double layer

Packaging Type: Filling

Capacity: 2 0-40 bottles/min (filling speed and pumping speed can be adjusted according to the characteristics of the material).

Power supply: unidirectional 220V 120W
