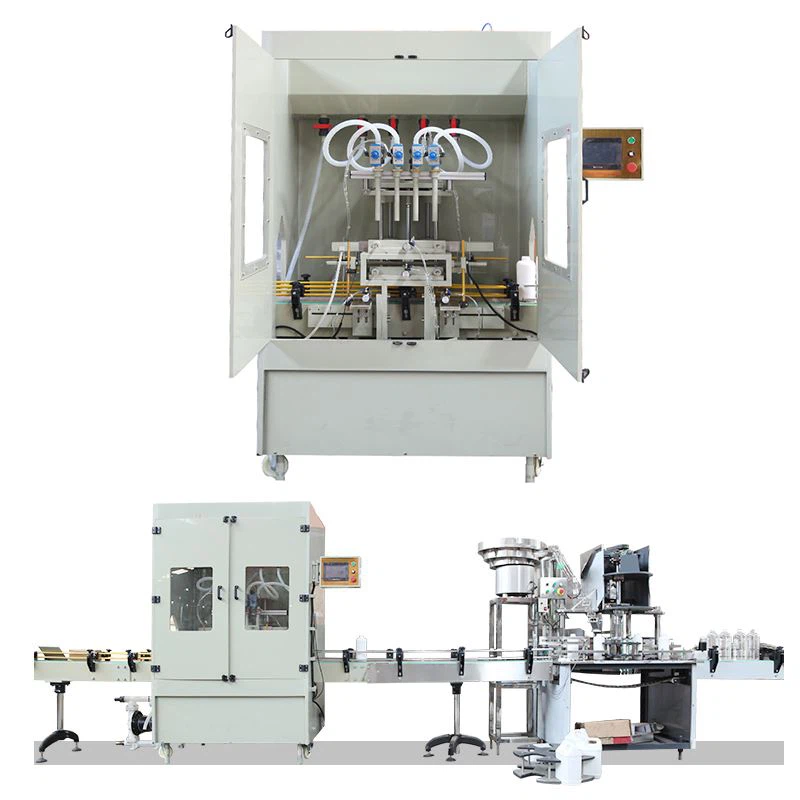

Strong Acid And Alkali Filling Machine

Strong acid and alkali filling machine filling speed is fast, labor-saving, efficient, high filling accuracy, according to your needs, can be customized. This strong acid and alkali filling machine is an ideal equipment for our factory to innovate according to the needs of users, achieve low price and high return, and is a must-have filling line for many small and medium-sized enterprises.

Three major lifts of Strong acid and alkali filling machine



Conveyor belts

In order to prevent damage to the conveyor belt caused by the filling liquid during the conveying process, the bracket and chain plate were upgraded to acrylic material.



Corrosion-resistant support angles

From head to angle, let you experience the effect of corrosion resistance in all aspects.



Thicken the plate

Specially upgraded thickened plate, up to 25 mm thick, accept customized service



Product features of Strong acid and alkali filling machine



Corrosion-resistant diaphragm pump

Increase filling volume, whole body anti-corrosion pump



Feeding opening

A diaphragm pump is required to send the material to the top material cylinder



Top material cylinder

Large filling capacity, with liquid level control, no manual observation required



4 filling heads

Timing automatic quantitative filling, stable and accurate filling

Auxiliary reflector

With the positioning of the optical eye to measure the bottle, no bottle is not filled, and the residual liquid is automatically collected



Cartridge cylinder

Accurate snap bottle, bottle mouth consistent different bottle shapes, can be universal



Deflector

Self-flowing mode, flowing into the filling ball valve



Automatic bottle dispensing

After filling, the bottle is automatically sent out

Product parameters of Strong acid and alkali filling machine



The machine does not contain a booster pump, please consult customer service if you need to purchase it.



Product Name: Strong acid and alkali filling machine

Number of filling nozzles: 4pcs

Machine voltage: 220V/50Hz

Machine power: 1000W

Filling speed: 8-20 bottles/min

Filling accuracy: ±1%

Rated air pressure: 0.6~0.8Mpa

Filling time range: 1-600000 milliseconds



Product applicability of Strong acid and alkali filling machine



Strong acid and alkali filling machine is suitable for all kinds of strong acid and alkali filling, and products with high corrosion resistance requirements.



Disinfectant

Antibacterial solution



Strong acid and alkali filling machines are an important piece of equipment in many industries. These machines are specifically designed to handle harsh chemical substances such as strong acids and alkalis with ease and efficiency.

One of the key benefits of using a strong acid and alkali filling machine is that it greatly reduces the risk of spills or accidents. These machines are built with advanced safety features that minimize the possibility of leaks or spills, which can be extremely dangerous when dealing with strong chemicals.

Another advantage of using a strong acid and alkali filling machine is that it significantly increases productivity and accuracy. The machines are designed to fill containers with precise quantities of the chemical, which reduces waste and improves overall efficiency.

Many industries rely heavily on strong acid and alkali filling machines to ensure smooth operations. From chemical manufacturing to pharmaceuticals, these machines play a critical role in ensuring that products are produced effectively and efficiently.

In conclusion, strong acid and alkali filling machines are an essential piece of equipment for many industries. With advanced safety features and precise filling capabilities, these machines help to increase efficiency, reduce waste, and minimize the risk of accidents.
