Piston Type Liquid Filling Machine – Accurate & Versatile
Our piston filling machine is designed for precision and versatility. Featuring accurate metering, drip-proof design, and “no bottle, no filling” protection, it supports various liquids including pastes, sauces, and viscous products. Optional heating and stirring functions ensure smooth, heat-sensitive filling. Ideal for a customizable filling line tailored to your production needs.
Description
Products Description

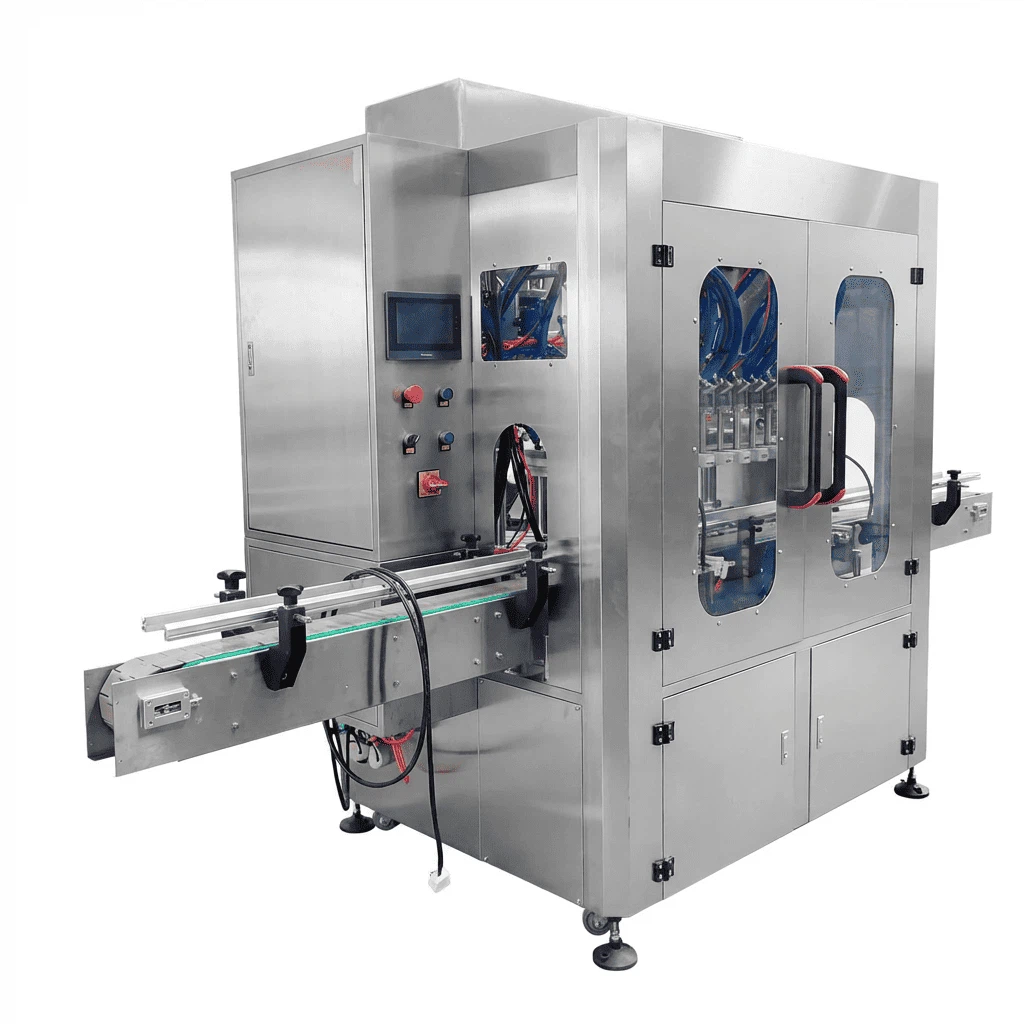

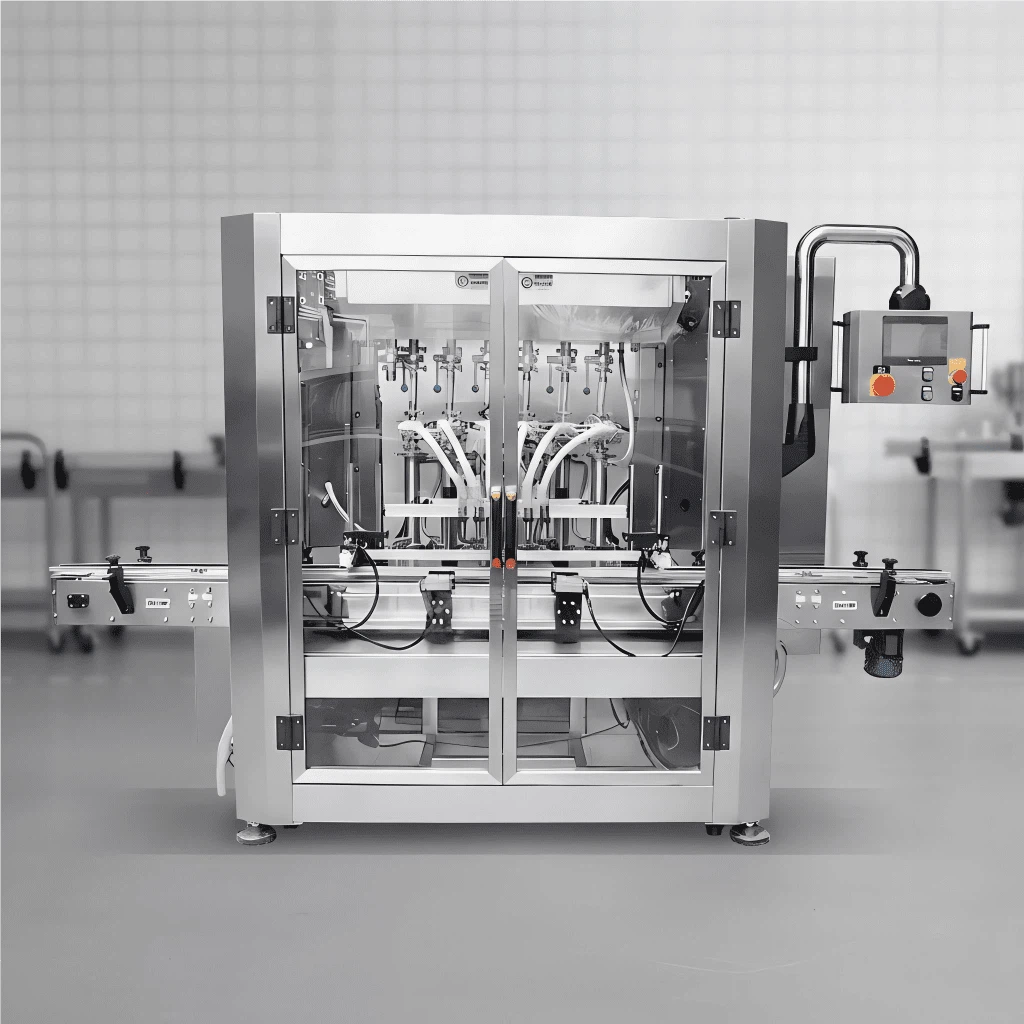

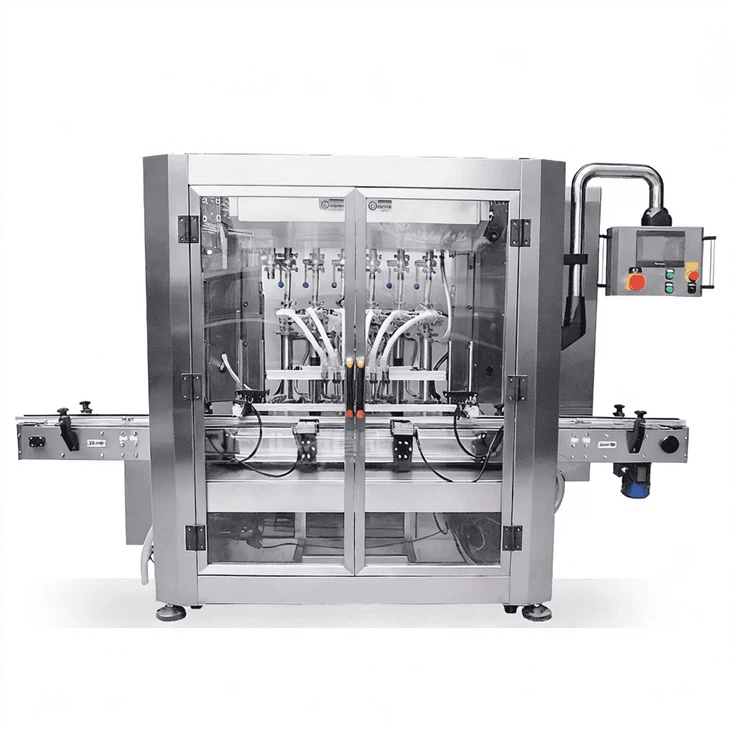

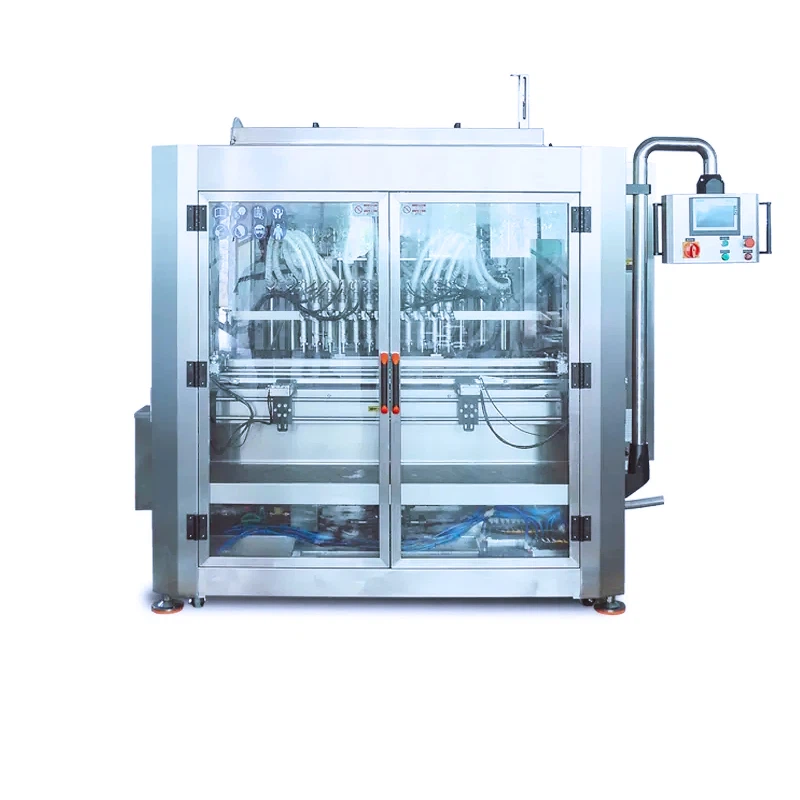

Piston Type Liquid Filling Machine – Accurate & Versatile
Our piston filling machine is designed for precision and versatility. Featuring accurate metering, drip-proof design, and "no bottle, no filling" protection, it supports various liquids including pastes, sauces, and viscous products. Optional heating and stirring functions ensure smooth, heat-sensitive filling. Ideal for a customizable filling line tailored to your production needs.
Products parame
Parameters of CRA Series Piston Filling Machine
A versatile piston filling solution available in 6, 8, and 12-head configurations. Designed for precise, drip-free filling of low- to high-viscosity liquids, with optional heating and stirring functions for smooth processing. Ideal for sauces, pastes, and other viscous products in customizable production lines.
| products |
 |
 |
 |
| Model number | RT-GSF-6 | RT-GSF-8 | RT-GSF-12 |
| Filling range | 100-1000ml,500-5000ml | ||
| Filling speed (bottles/hour) | 1440-1800 | 1920-2400 | 2880-3600 |
| Metrology accuracy | 1% (Different accuracy varies by capacity) | ||
| Rated power/voltage | 1.75KW/220V | 2.1KW/220V | 2.8KW/220V |
| Working air pressure | 0.6-0.8MPA | ||
| Silo volume | 120L | 200L | 200L |
| Air consumption | 6-7KG/cm2 | ||
| Machine weight | 450KG | 500KG | 600KG |
| Machine size (mm) | 2000*1300*2100 | 2000*1300*2100 | 2000*1400*2100 |
| Compatible with the height range of bottle types | 80-180mm (can be customized according to customer requirements) | ||
| Compatible with bottle width or diameter range | 60-100mm (can be customized according to customer requirements) | ||
Products application
application
The piston filling machine is widely used in industries requiring precise and versatile liquid filling:
Food Industry
sauces,pastes,jams,
honey,condiments,
syrups
Beverage Industry
juices,yogurt,
concentrated drinks
Cosmetics & Personal Care
creams,lotions,
gels,shampoos
Pharmaceuticals
syrups,ointments,
viscous medicinal liquids
Chemical Industry
adhesives,lubricants,
detergents,
other viscous chemicals
Suitable Bottle Types
Round Bottles: standard, wide-neck, narrow-neck
Square & Rectangular Bottles: cosmetic containers, chemical bottles
Special Shapes: oval, custom-designed bottles (requires adjustment)
Materials Supported: glass, PET, HDPE, PP
Products Details
faq
Q:1.What types of liquids can the CRA piston filling machine handle?
A:It is suitable for low- to high-viscosity liquids, including sauces, pastes, creams, and other viscous products.
Q:2.Can I choose different filling head configurations?
A:Yes, the CRA series is available with 6, 8, or 12 heads to meet different production capacities.
Q:3.Does the machine support accurate filling?
A:Yes, the piston metering system ensures precise, consistent filling for each bottle.
Q:4.Is there a safety mechanism to prevent spillage?
A:Yes, the machine features a drip-proof design and a "no bottle, no filling" function.
Q:5.Can the machine handle heat-sensitive or sticky liquids?
A:Yes, optional heating and stirring functions allow smooth processing of heat-sensitive and viscous liquids.
Q:6.Can the CRA series be integrated into an existing production line?
A:Absolutely. The machine is designed for versatility and can be part of a customizable filling line.
