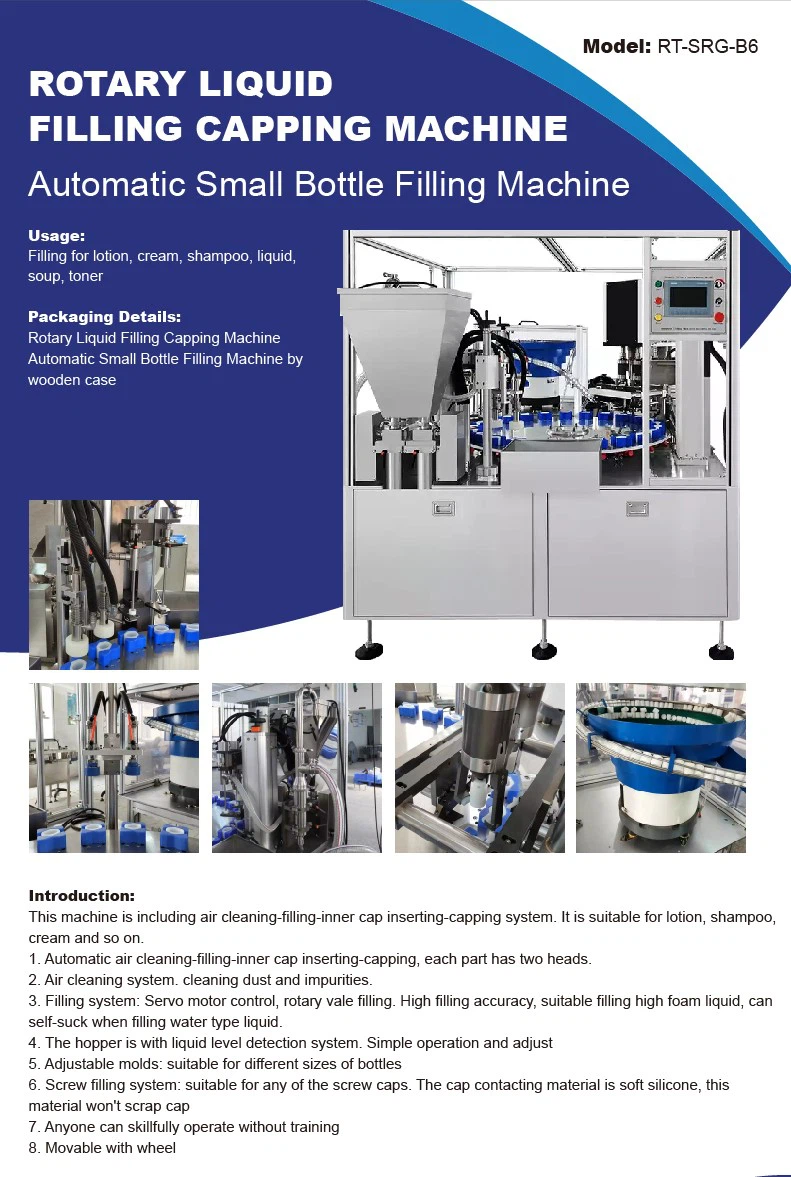

Rotary Liquid Filling Capping Machine

Packaging Details of Rotary Liquid Filling Capping Machine:

Rotary Liquid Filling Capping Machine Automatic Small Bottle Filling Machine by wooden case

Introduction:

This Rotary Liquid Filling Capping Machine is including air cleaning-filling-inner cap inserting-capping system. It is suitable for lotion, shampoo, cream and so on.

1. Automatic air cleaning-filling-inner cap inserting-capping, each part has two heads.

2. Air cleaning system. cleaning dust and impurities.

3. Filling system: Servo motor control, rotary vale filling. High filling accuracy, suitable filling high foam liquid, can self-suck when filling water type liquid.

4. The hopper is with liquid level detection system. Simple operation and adjust

5. Adjustable molds: suitable for different sizes of bottles

6. Screw filling system: suitable for any of the screw caps. The cap contacting material is soft silicone, this material won't scrap cap

7. Anyone can skillfully operate without training

8. Movable with wheel

Detail picture of Rotary Liquid Filling Capping Machine:

2 nozzles Air cleaning and filling

Suitable for filling both high and non viscosity products, Japan Panasonic servo motor control, the filling precision is 0.5g, filling rang 5-500ml.

Adjustable mold

The blue molds are adjustable, they are suitable for different shapes and sizes of glass/plastic bottles& jars from 5-500ml, no need any tools to adjust, only by manual, very quick to adjust.

Two screw capping

Suitable for capping both small mouth and wide mouth bottles/jars

Simple to operate

Quick disassembly and installation, no need tools. Easy and quick to clean the filling system

Technical parameter of Rotary Liquid Filling Capping Machine:

Condition: New

Machinery Capacity:4000BPH,2000BPH

Showroom Location: None

Packaging Material: Plastic, Paper, Metal, Glass, Wood

Driven Type: Electric

Place of Origin: HEN

Dimension(L*W*H):3000*1500*2500

Warranty.1Year

Filling Material: Water, Oil, LOTION CREAM

Machinery Test Report: Provided

Warranty of core components: 1.5 years

Air pressure:0.5MPA

Filling volume:15-250ml

Filling nozzles:2pcs

Market: Around the world

Type: Filling Machine

Applicable Industries: Manufacturing Plant

Application: Chemical, Food, Commodity

Packaging Type: Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags..…

Automatic Grade: Automatic

Voltage:220V/380V

Brand Name: RITO

Weight: 560KG

Key Selling Points: Competitive Price

Filling Accuracy:≥99.7%

Video outgoing- inspection: Provided

Core Components: Motor, Pressure vessel, Pump, PLC, Gear, Bearing

Product name: Rotary Liquid Filling Capping Machine

Material: Stainless Steel 304/SUS316L

Function: Automatic air cleaning, filling and capping

Capacity:40-45 bottles/min

Product: Rotary Liquid Lotion Cream Filler and capper

Marketing Type: New Product 2020
