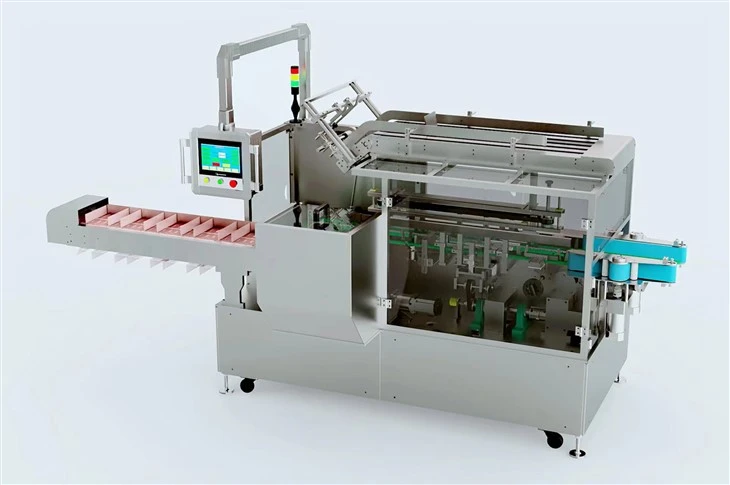

Mask Cartoning Machine

Product introduction:

Mask cartoning machine is a high-tech product integrating machine, electricity, gas and light. This product is suitable for many types of masks, cosmetics, medicine, masks, hardware, food, toys, electronics and daily necessities, and so on.

This mask cartoning machine is a full-automatic cassette loading machine, which is suitable for automatic cassette loading of various masks

One machine can be compatible with multiple sizes of cartons

1. The machine can complete automatic feeding, carton suction, box opening, material feeding, automatic box sealing and other processes.

2. The mask cartoning machine can be used alone or connected with other packaging machines (such as pillow packaging machine, sealing, cutting and shrinking machine, labeling machine, etc.) to form an assembly line.

3. The rear section can be connected with automatic unpacking, packing and sealing machines to form a full-automatic packaging assembly line.

4. 30-60 boxes per minute (depending on the size of the carton and paper)

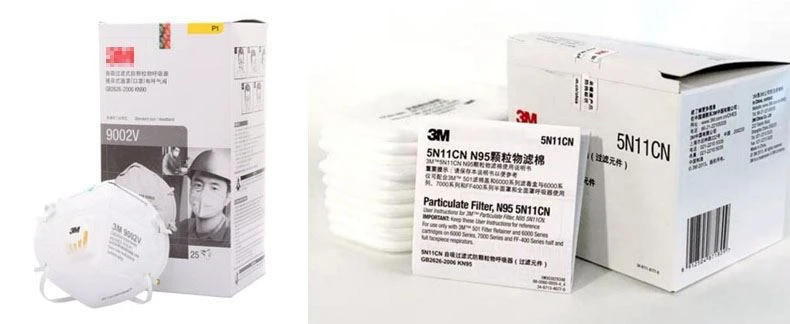

Product effect display

The difference between horizontal cartoning machine and vertical cartoning machine lies in the placement form of cartons during product loading. The machinery and equipment with cartons lying flat for loading is called horizontal cartoning machine, which is mainly used for packing materials like bags and blocks. Generally, what we call automatic cartoning machine refers to horizontal cartoning machine.

The feeding of mask cartoning machine is generally divided into three inlets: Carton inlet, material inlet and machine package box inlet. The whole process from the feeding of the machine package box to the final packaging can be roughly divided into four stages: the carton is fixed by a guide rail clamping position and opened by a push plate. At the same time, two movable clamping positions will rise from below to clamp the side of the carton from the front and rear direction, so as to open the box at a right angle and move forward to the filling area. After filling the filling area, the mechanism of the machine will fold the ears into the left and right guide rails, and then close the cover. Before closing the cover, the mechanism will first bend the tongue of the carton, and then a push plate will push the carton cover to bend, so that the tongue can be inserted into the box and the lock catch can be fastened. The closing action is a key action. The completion is closely related to the structure of the carton and the accuracy of machine adjustment.

Our

Our mask cartoning machine structure is more humanized and more flexible for special materials. It can be used alone or in conjunction with other equipment (such as weighing machine, filling machine, material handling machine, packing machine and other equipment) to form a complete assembly line to form a complete production line. The whole frame and parts contacting materials are made of high-quality stainless steel and aluminum, and the surface is polished, with beautiful appearance, firmness and durability! This mask cartoning machine can replace the workload of 6-8 workers.
