Semi-Auto Paste Filling Machine with Hopper for Tomato Sauce (GZA-2)

We have high-quality 90 bpm filling machine, corrugated box packing machine, agarbatti box packing machine and professional sales and technical team, we provide customers with excellent products, good technical support, sound after-sales service. We face up to the increasingly fierce market competition, bring our subjective initiative to the maximum, so as to create a characteristic development path. Since its establishment, our company has been adhering to the business philosophy of 'customer first, forge ahead' and always takes design, research and development of new styles, and grasp industry trends as the development purpose of the enterprise. We take the maximization of corporate efficiency as the core, fully implementing the commanding heights and internationalization strategy, and continuously improving our management. We enhance our strategic development capability, production operation capability and organization management capability, and improve our core competitiveness.



Sauce bottle filling machine

Product advantages of sauce bottle filling machine:

1. First line imported accessories are provided to ensure the stability of equipment discharge.

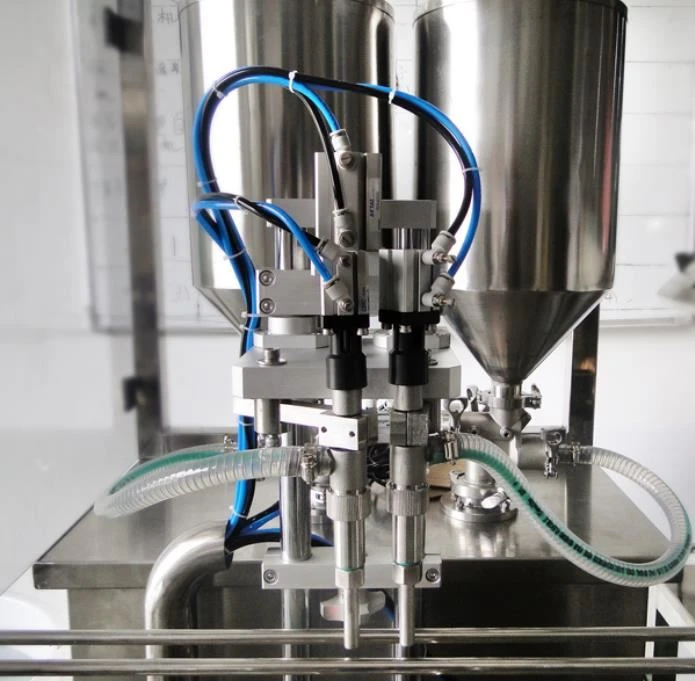

2. Specially equipped with drip proof and wire drawing filling plug valve and submersible filling upgrade system.

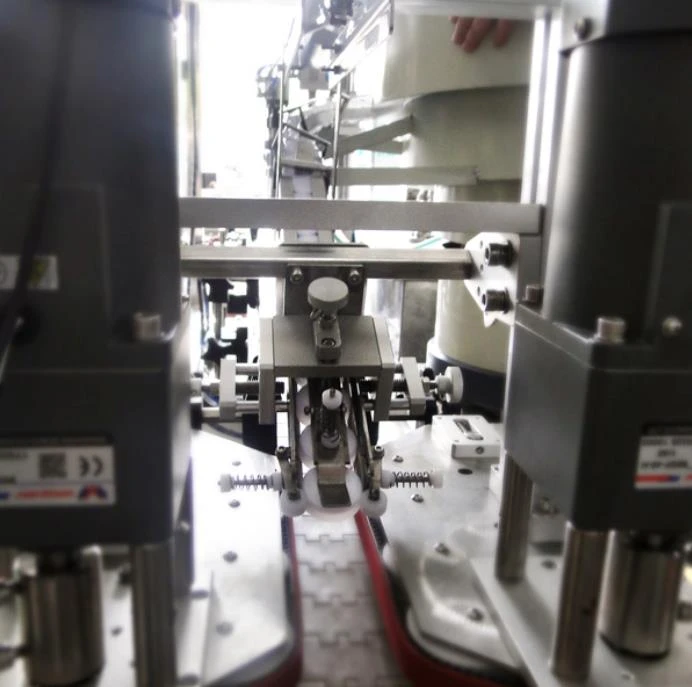

3. In order to make the blanking accurately align with the bottle mouth, a transverse bottle clamping device is designed to ensure the alignment accuracy.

THE BASIC PARAMETERS of sauce bottle filling machine

Model	RTFM-4G	RTFM-6G	RTFM-8G	RTFM-12G
Filling Speed	15-30BPM	20-45BPM	30-60BPM	40-80BPM
Filling Range	50-500/100-1000/300-3000/500-5000ML
Air pressure	0.4-0.6mpa
Filling precision	0.5%
Machine Size	2100*1000*2150MM	2400*1000*2150MM	2600*1000*2150MM	2800*1000*2150MM
Weight	400kg	500kg	600kg	900kg

Product features

1. the sauce bottle filling machine is equipped with FESTO as the main cylinder piston, Mitsubishi PLC, Taiwan Veron touch screen, Japan Opps fiber, Dutch micro differential pressure switch and automatic control feeding system of American shengbaide pneumatic diaphragm pump, which ensures excellent stability of the equipment.

2. the sauce bottle filling machine is easy to maintain, and it can be easily removed, cleaned and installed without any tools, and it is convenient to adjust. Adjust the measurement, you can adjust it to close to the measurement in a large range before fine-tuning. It can be achieved without bottle, bottle shortage and filling, and accurate measurement.

3. the sauce bottle filling machine can determine the number of filling heads and the volume of cylinder block according to the production demand of users. It can be selected from 10 heads of supply and demand, and the cylinder volume is 100-1000ml. It can speed the bottle belt and high-strength stainless steel frame, which is firm and durable.

4. considering the different viscosity of the user materials, the filling valve and the down-down filling lifting system are specially equipped with anti dripping and drawing. In order to make the blanking accurately align with the bottle mouth, a horizontal bottle alignment device is designed to ensure the accuracy of alignment.

5. the application user has complex material varieties. Another gravity filling procedure is set in this machine to fix the flow path parameters. The normal pressure and timing filling method can be used for thin liquid to reduce the production cost and improve the production speed. The system does not need to add any accessories, which can reduce the repeated investment of equipment The filling system of this machine adopts clamp type quick fitting sanitary joint. The whole cylinder block can be easily removed and cleaned from top to bottom without tools

In order to ensure that each Semi-Auto Paste Filling Machine with Hopper for Tomato Sauce (GZA-2) exceeds customer needs, we use a rigorous quality management system to control every link. Flexible business channels, superior environment, good marketing network, strict management of purchase, sale and storage have laid a solid foundation for our business development. We respect honesty, loyalty, integrity, and consistency between words and deeds.
