Cylinder Piston Filler

Sauce filling machine

Good product - designed with heart



10 years of professional manufacturing



Sauce filling machine

Wide range of packaging

Improve corporate efficiency

Fully automated packaging



Structural design and parameter configuration according to different process conditions

Realize the leap of customers from ideas and ideas to real-world devices

Increase your productivity

Features of cylinder piston filler

The specification configuration can be designed and manufactured according to customer requirements



Fully automatic filling

This cylinder piston filler can be connected to automatically complete the whole process of packaging such as bottle management - bottle washing - drying and sterilization - filling - capping



Smart touch screen control

Using LCD touch screen operation control, intelligent central control system, fast filling speed, high precision, convenient operation



Food grade 304 stainless steel

The 304 stainless steel body is adopted, and the material contact part is made of food stainless steel



Brand electronic control components

Mechanical accessories are of excellent quality, low wear and tear, durable





Food grade SUS304, 316L stainless steel material uses on cylinder piston filler

Excellent corrosion resistance and anti-rust performance to ensure the hygiene and safety of filling



Stainless steel grade display:

430 stainless steel

Magnetic, easy to rust heavy metal content exceeds the standard, can not be in direct contact with food



304 stainless steel

Food contact grade

Widely used in cookware, utensils corrosion resistance, high temperature resistance



316L stainless steel

High quality stainless steel

Widely used in medical, maternal and infant industry, high temperature resistance, corrosion resistance is better



Quantitative filling of cylinder piston filler

The cylinder piston filler adopts volumetric metering and issuance, so that the filling accuracy reaches 1%

There is no need to regulate the system due to frequent temperature changes



Two modes to choose from



Quantitative filling of cylinder piston filler

To ensure the filling quality of each bottle, the quantitative error is 2 grams, which is 50% higher than the standard



Fill at a fixed level

The liquid level of each bottle can be flushed, and it will not be uneven due to the weight difference of the glass bottle

Product details of cylinder piston filler

High temperature filling is optional

The cylinder piston filler and the material contact are made of high-quality stainless steel, according to the needs of customers to add mixing mechanism to the barrel and can withstand 7 0-90 °C high temperature filling



Safe filling without dripping

The filling method adopts the piston self-priming principle, and the servo drive is high-precision

The screw drives multiple sets of pistons to improve filling efficiency



Advanced filling head

The filling head has a special locking device, when replacing bottles of different shapes and specifications, there is no need to replace parts, easy to adjust, and strong practicability



can be customized according to customer needs

It can make a new honey complete set of filling production line, which is composed of bottle unpacking machine - bottle washing machine - drying and sterilizing machine - filling machine - capping machine, etc.

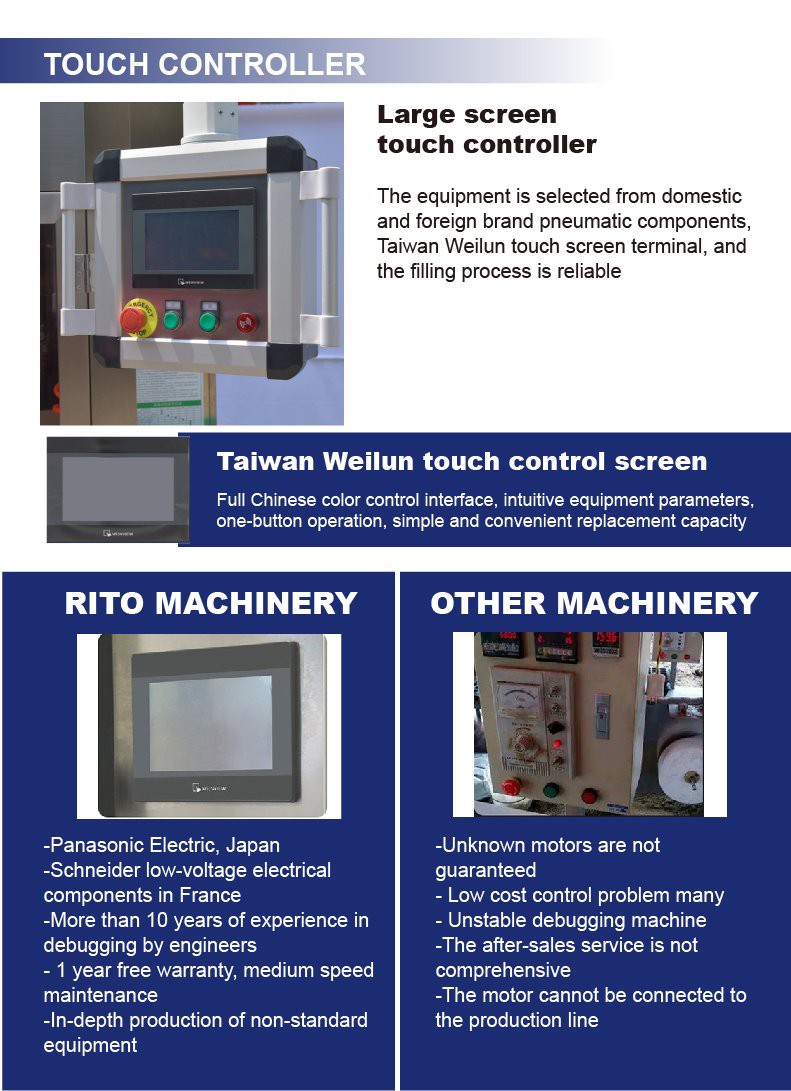

Touch controller of cylinder piston filler

Large screen touch controller

The equipment is selected from domestic and foreign brand pneumatic components, Taiwan Weilun touch screen terminal, and the filling process is reliable



Taiwan Weilun touch control screen,

Full Chinese color control interface, intuitive equipment parameters, one-button operation, simple and convenient replacement capacity



RITO Machinery

-Panasonic Electric, Japan

-Schneider low-voltage electrical components in France

-More than 10 years of experience in debugging by engineers

- 1 year free warranty, medium speed maintenance

-In-depth production of non-standard equipment



Other machinery

-Unknown motors are not guaranteed

- Low cost control problem many

- Unstable debugging machine

-The after-sales service is not comprehensive

-The motor cannot be connected to the production line



Wide range of applications of cylinder piston filler

Best manufactures automatic equipment

The choice of more than 3,000 customers worldwide

RITO Machinery has always focused on the research and innovation of machinery and equipment

Take customer value as enterprise value, and strive for China's quality manufacturing



Product parameters of cylinder piston filler

More detailed understanding of the product, precise product information

	Single head	4-6heads	8-10 heads	12 heads
Filling speed (bottles/hour)	800	1400-2200	2500-3500	4000-5000
Container capacity (kg)	90	120	180	260
Equipment weight (kg)	290	860	1135	1490
Operating voltage	380V/220V(Customizable)50HZ
Operating air pressure	0.6-0.8Mpa
Form factor (L*W*H)	Single head		4-6 heads
	800*1350*1600(mm)		1750*1350*2200(mm)
	8-10 heads		12 heads
	2000*1350*2200(mm)		2300*1400*2300(mm)

Wide range of applications of cylinder piston filler

PET bottles

Round bottle

Square bottles

Hexagonal bottle

Cylindrical bottle

Shaped bottle

A cylinder piston filler is a reliable and efficient tool for filling products into containers. This type of filling machine uses a cylinder and piston system to accurately dispense and measure the amount of product being filled. It is commonly used in the food, pharmaceutical, and cosmetic industries to fill liquid or viscous products such as sauces, lotions, and syrups.

One of the major advantages of using a cylinder piston filler is its high accuracy. This type of filling machine can dispense products with precision, ensuring that the exact amount of product is delivered to each container. This helps to minimize waste and can ultimately save manufacturers money in the long run. Additionally, the cylinder piston filler is easy to operate and can be adjusted to meet different filling volumes.

Another benefit of using a cylinder piston filler is the hygiene standards it offers. Due to its design, this type of filling machine is easy to clean and sanitize, making it ideal for use in the food and pharmaceutical industries where cleanliness is a top priority. It is also able to handle a wide range of products, including those with high viscosity or those that have particulate matter.

Overall, the cylinder piston filler is a highly efficient and effective filling machine that can help manufacturers improve their production process. Its accuracy, ease of use, and hygiene standards make it an ideal choice for filling a wide range of products. With its many benefits, it is no wonder that the cylinder piston filler is a popular choice for manufacturers around the world.
