Fully Automatic Double Head Filling Machine
Paste filling machine
Customizable filling line
Bottling and canning machine production line equipment
Accurate metering/Leak-proof design/No bottle, no filling/Versatile
Description

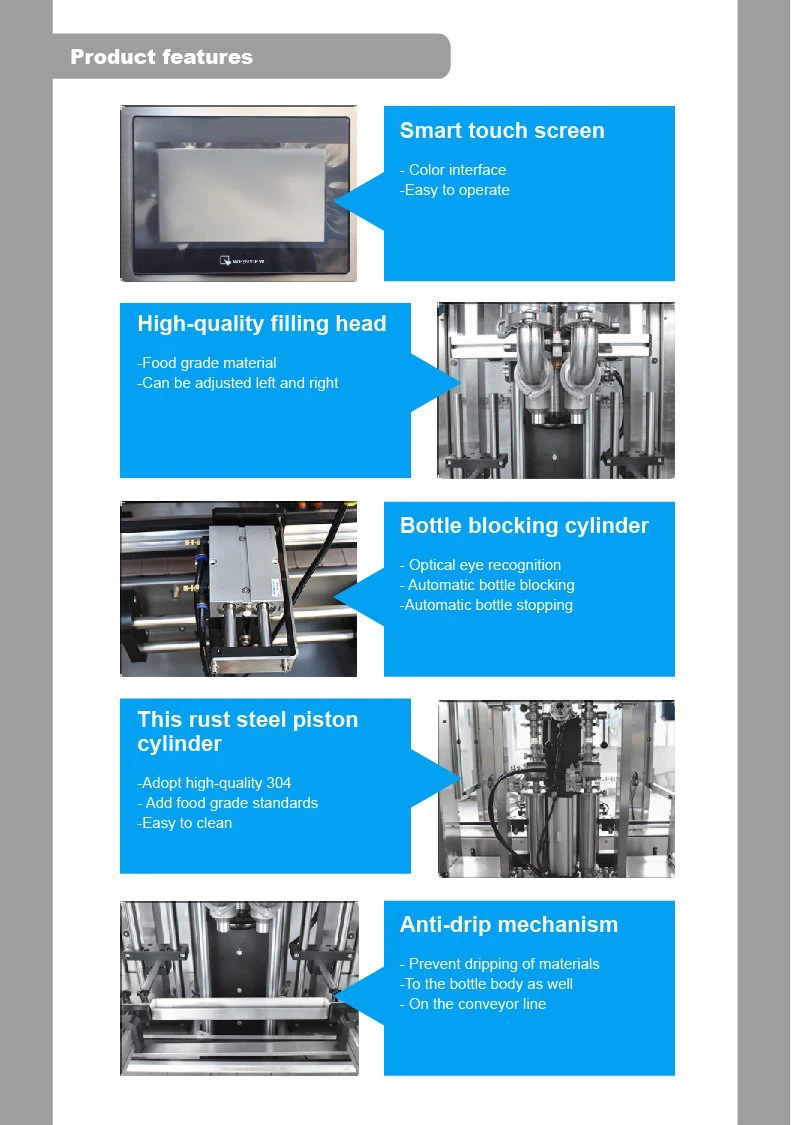

Product features of Fully automatic double head filling machine
Smart touch screen
- Color interface
-Easy to operate
High-quality filling head
-Food grade material
-Can be adjusted left and right
Bottle blocking cylinder
- Optical eye recognition
- Automatic bottle blocking
-Automatic bottle stopping
This rust steel piston cylinder
-Adopt high-quality 304
- Add food grade standards
-Easy to clean
Anti-drip mechanism of Fully automatic double head filling machine
- Prevent dripping of materials
-To the bottle body as well
- On the conveyor line
Product structure of Fully automatic double head filling machine
Conveyor line
Drain slot
Bottle stopper mechanism
Silos
Power switch
touch screen
Emergency stop switch
Conveying motors
Product parameters of Fully automatic double head filling machine
| Model | RT-GSF-6 | RT-GSF-8 | RT-GSF-12 |
| Filling range | 100-1000ml | ||
| Filling speed (bottles/hour) | 1440-1800 | 1920-2400 | 2880-3600 |
| Metrology accuracy | 1% (Different accuracy varies by capacity) | ||
| Rated power/voltage | 1.75KW/220V | 2.1KW/220V | 2.8KW/220V |
| Working air pressure | 0.6-0.8MPA | ||
| Silo volume | 120L | 200L | 200L |
| Air consumption | 6-7KG/cm2 | ||
| Machine weight | 450KG | 500KG | 600KG |
| Machine size (mm) | 2000*1300*2100 | 2000*1300*2100 | 2000*1400*2200 |
| Compatible with the height range of bottle types | 80-180mm (can be customized according to customer requirements) | ||
| Compatible with bottle width or diameter range | 60-100mm (can be customized according to customer requirements) | ||
Product applicability of Fully automatic double head filling machine
Beverages
Sauces
Honey
Condiment category
Cosmetics
Toiletries
