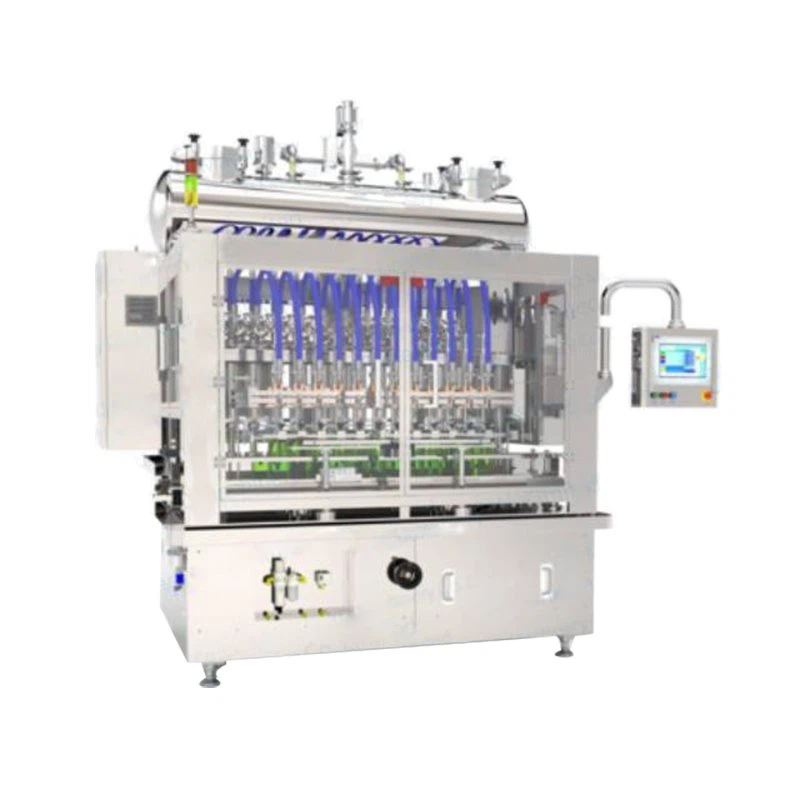

High Viscosity Piston Filler

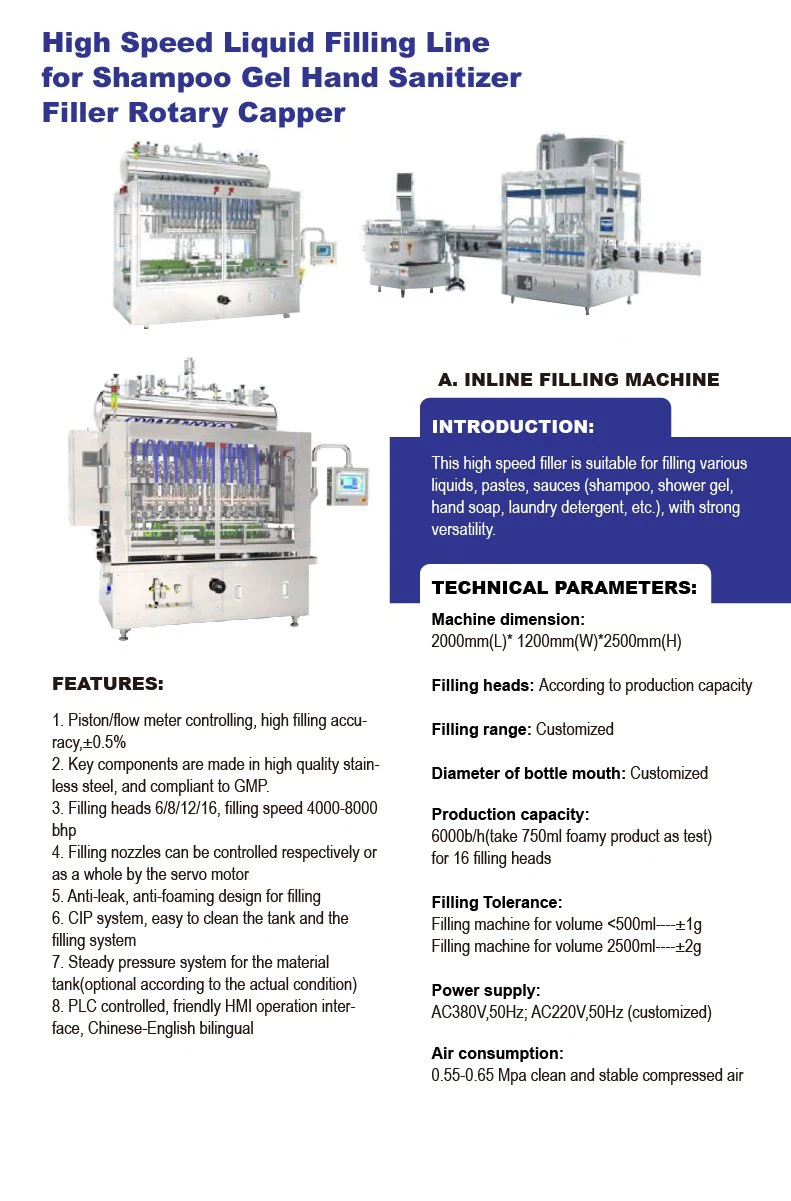

A.high viscosity piston filler

Introduction:

This high viscosity piston filler is suitable for filling various liquids, pastes, sauces (shampoo, shower gel, hand soap, laundry detergent, etc.), with strong versatility.

Features of high viscosity piston filler:

1. Piston/flow meter controlling, high filling accuracy, ±0.5%

2. Key components are made in high quality stainless steel, and compliant to GMP.

3. Filling heads 6/8/12/16, filling speed 4000-8000 bhp

4. Filling nozzles can be controlled respectively or as a whole by the servo motor

5. Anti-leak, anti-foaming design for filling

6. CIP system, easy to clean the tank and the filling system

7. Steady pressure system for the material tank(optional according to the actual condition)

8. PLC controlled, friendly HMI operation interface, Chinese-English bilingual

Technical Parameters of high viscosity piston filler:

(1) Machine dimension: 2000mm(L)* 1200mm(W)*2500mm(H)

(2) Filling heads: According to production capacity

(3) Filling range: Customized

(4) Diameter of bottle mouth: Customized

(5) Production capacity: 6000b/h(take 750ml foamy product as test) for 16 filling heads

(6) Filling Tolerance: high viscosity piston filler for volume <500ml----±1g Filling machine for volume 2500ml----±2g

(7) Power supply: AC380V,50Hz; AC220V,50Hz (customized)

(8) Air consumption:0.55-0.65 Mpa clean and stable compressed air

B. Capping Machine

Introduction:

This high speed rotary capping machine is with cap sorting bowl and cap feeder system , dispatches caps in high speed with no reverse caps which can be suitable for various types of bottles.

The cap supplying system and the manipulator works at the same step. When caps capped well, the bottes and the caps are relative static , the clutch releases , this can avoid bottles getting injured to achieve high qualified rate of capping. The surface of machine is made of high quality stainless steel , the electrical elements use international famous brand which makes machine more stable , good-looking meets GMP standard

Features:

1. Four wheels structure, which is suitable for round caps, pump caps, duck mouth caps, trigger caps with straw.

2. PLC controlled , integrated cap sending , grasping , capping (can affiliate with automatic cap sorter)

3. Automatic inlet cap and bottle position-setting and orientation, adjustable torque control.

4. Gentle manipulation, no scratch and injury to caps and containers

5. Easy changeovers, one line capable of several products

6. Connected with filling machine and labeling machine easily

7. Module structure, manipulate on the touch screen, easy maintenance

8. Suitable for containers made of PET/PP/PE/HDPE and so on

9. Production capacity can achieve 4000-8000b/h, higher speed can be customized.

Technical Parameters:

Machine Dimension(L*W*H): 2m*1.4m*2.6m

Suitable caps : can be customized

Power supply: AC 380V, 50Hz

Length of pump cap: shorter than 250mm

Machine power:4Kw(8 capping heads)

Capacity: About 3000 BPH(4 heads); About 5000 BPH(8 heads);About 7000 BPH(12 heads)

Air operated source: 0.6Mpa clean and stable compressed air

Diameter of pump cap: can be customized

Number of capping heads:4/8/12

Weight: 2500Kg

Torque control: around 0.3 Nm
