Sauce Bottle Filler

This sauce bottle filler is widely suitable for filling of various liquids,viscous pastes,replacement of filling valves

(i.e.,automatic filling machines for thick sauces with multiple heads),and filling of semi-

fluids,paste and sauces containing particles.

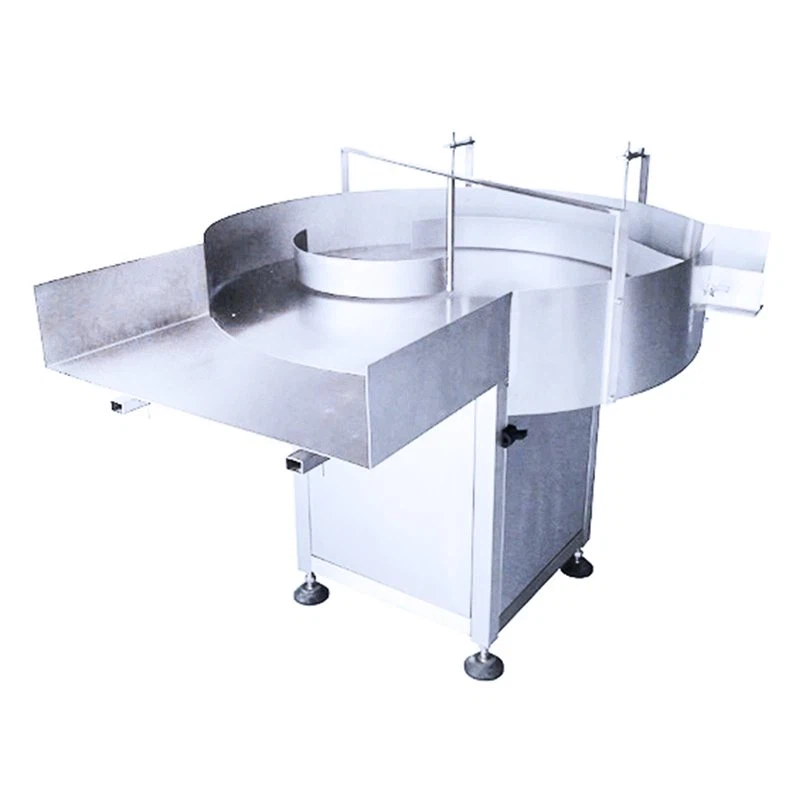

Bottle turntable

Introduction:

It is suitable for the automatic separation and transmission of round bottles, square or different shape bottles. It is compatible with plastic bottles and glass bottles. This bottle feeder can be connected to the filling machine, capping machine and labeling machine. Bottle turntable can be applied to the intermediate connection of the assembly line of sauce bottle filler as a buffer platform to reduce the length of the conveyor belt.



Applicable bottle diameter can be adjusted freely, compatible with glass bottle, plastic bottle, bottle conveying speed is 20~100 bottles /min, the speed can be adjusted sleeplessly, which is convenient for production arrangement.



Working Principle:

The bottle feeding machine drives the product to automatically rotate, and the product is close to the edge of the turntable under the fluctuation of the dial plate, and the product is led out along the bottle sorting slot in an orderly manner.



Technical Parameters of bottle unscramble turntable：

Turntable diameter：600mm-1200mm (customized according to bottle size)

Dimensions: 1200*900*1300(mm)

Voltage： 220V / 50Hz

Motor power： 0.12KW

Weight：about 105KG

Diameter：φ20mm ~ φ100mm

Height： 0mm ~ 150mm



Sauce bottle filler Introduction:

The volumetric filler machine adopt brand name electrical and pneumatic components. The sauce bottle filler is controlled by PLC in conjunction with the human-machine interface. The design is novel, the appearance is beautiful, the interface is friendly, the adaptability is simple, the operation is accurate, the filling accuracy is high, and the maintenance is convenient. Widely suitable for filling of various liquids, viscous pastes, replacement of filling valves (i.e., automatic filling machines for thick sauces with multiple heads), and filling of semi-fluids, paste and sauces containing particles.



Other features of sauce bottle filler:

1.Using world-renowned brands of electrical and pneumatic components, low failure rate, reliable performance and long service life.

2.Using high-strength stainless steel frame, easy to disassemble, easy to clean and meet GMP requirements

3.The filling volume and filling speed are easy to adjust, operated and displayed by the touch screen, and the appearance is beautiful;

4.It has a function of no bottle and no filling, and the liquid level is automatically controlled for feeding;

5. You can quickly adjust bottles of different shapes and specifications without changing parts;

6.The filling head is equipped with a special leak-proof device, and there is no drawing or dripping during filling.

Note: The filling range and speed can be designed according to user needs for different filling heads.



Technical parameters of sauce bottle filler:

Production capacity：2000 bottles /hour (filling speed of 200ml)

Filling accuracy：±1% (200ml)

Filling capacity：100ml-1000ml

Power supply：AC220V /50Hz

Power：≤2.5Kw

Weight： about 600Kg

Dimensions：1500*1150*1800(mm)

Bottle cap sealing machine

Introduction of cap pressing machine:

Automatic capping machine has fast capping speed, high pass rate and easy operation. Applicable to different sizes of caps in food, pharmaceutical, daily chemical, pesticide, cosmetics and other industries. The capper machine has good stability, and convenient adjustment. No spare parts are required when changing the bottle shape or cap. It can be completed by adjusting. It can be selected according to actual needs.



Device parameters of capping machinery:

Power supply voltage (V /Hz)：AC 220/50HZ 380 /60HZ

Power (W)：1000W

Sealing height (mm): 38-200MM

Adapt to cover diameter (mm)：30-80MM

Adapt to bottle diameter (mm)：30-130MM

Working pressure (mpa)：0.6-0.8MPa

Output (bottle /min)：20-50bottles /min

Dimensions (mm)：2000 * 900 * 1450

Net weight (kg)：200kg

The Sauce Bottle Filler is an incredible invention that has greatly improved the food packaging industry. It is a state-of-the-art machine designed to efficiently fill sauce bottles with high-quality sauces in a hygienic and time-saving manner.

This machine is essential for large scale food production companies as it makes the bottling process quick and easy. The Sauce Bottle Filler is made of high-quality materials that guarantee durability and longevity. The machine is also designed to be easy to operate, which means anyone can use it regardless of their level of expertise.

The Sauce Bottle Filler has revolutionized the way in which food is packaged. It is an efficient machine that ensures that every drop of sauce is accurately measured and distributed into a bottle, which is perfect for catering to the needs of discerning customers who demand high-quality food. Moreover, the machine achieves this without any waste, making it an environmentally friendly solution.

The Sauce Bottle Filler is safe to use, and its parts can be easily disassembled for cleaning, which helps to maintain hygiene standards. This ensures that the sauce produced is free from contaminants and meets food safety standards.

Overall, the Sauce Bottle Filler is a game-changer in the food packaging industry. Its efficiency, user-friendliness, and quality make it a highly recommended piece of equipment for any food production company. Its impact on the industry has been positive, and it is poised to continue being an essential tool for all food production businesses for years to come.
