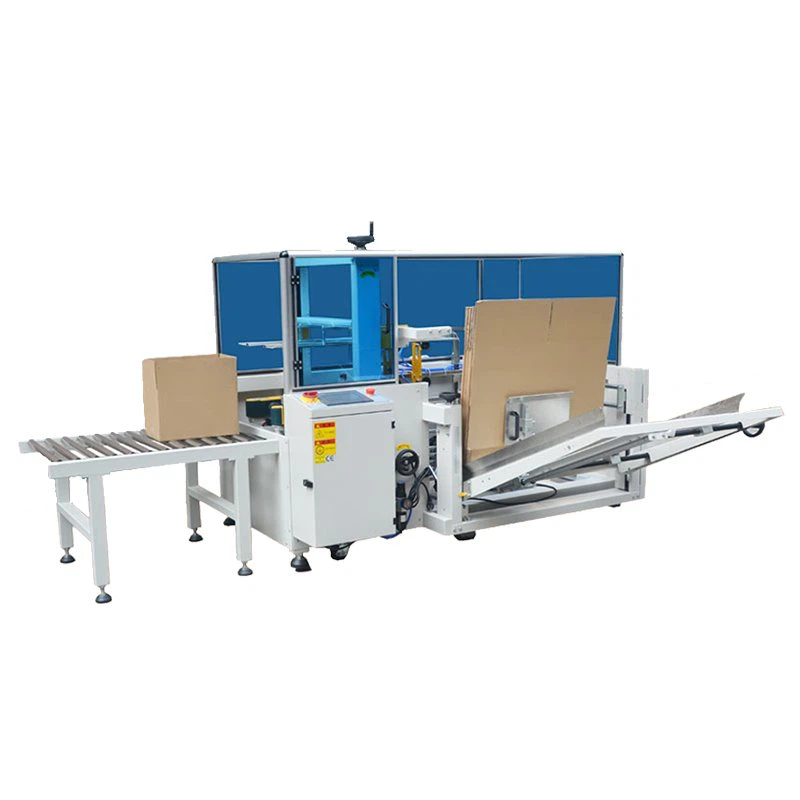

12 Box Vertical Carton Erector

12 Box Vertical Carton Erector

The case unpacking machine is also called carton forming machine, the bottom of the box is folded according to a certain procedure, and sealed with tape and transported to the special equipment of the case packing machine. 12 box vertical carton erector is a large batch of cartons automatic...

Description

The case unpacking machine is also called carton forming machine, the bottom of the box is folded according to a certain procedure, and sealed with tape and transported to the special equipment of the case packing machine. 12 box vertical carton erector is a large batch of cartons automatic unpacking, automatic folding of the lower cover, automatic sealing of the bottom tape assembly line equipment, the 12 box vertical carton erector all adopt PLC + display screen control, greatly convenient operation, is an indispensable equipment for automated large-scale production. This 12 box vertical carton erector is the most commonly used standard model for small and medium-sized enterprises, with an unpacking capacity of 12 boxes/minute. If the unpacking volume is slightly larger, you can choose RT-K40H18 automatic unpacking machine, with an unpacking capacity of 18 cases / minute.

F:\\\,105-108\105\\automatic carton erector

F:\\\,105-108\105\\carton box erector machine

Product parameters of 12 box vertical carton erector:

Model: RT-K40

Unpacking capacity: 12 cases/min

Carton Temporary Capacity: 100pcs  (1000mm).

Carton size: L:250-450 W:150-400  H:100-400mm (minimum size cannot appear at the same time).

Power used: 220V 1ф 200W

Required air pressure: 6kg/cm²

Air consumption: 450NL/min

Machine size: L2000mm; W1900mm; H1450mm

Tape size: 48, 60, 75mm

F:\\\,105-108\105\\cardboard box erectors (3)

Touch control panel:

Touch screen operation panel, graphic interface, with adjustment operation instructions, simple and easy to understand, with emergency stop switch, convenient and safe

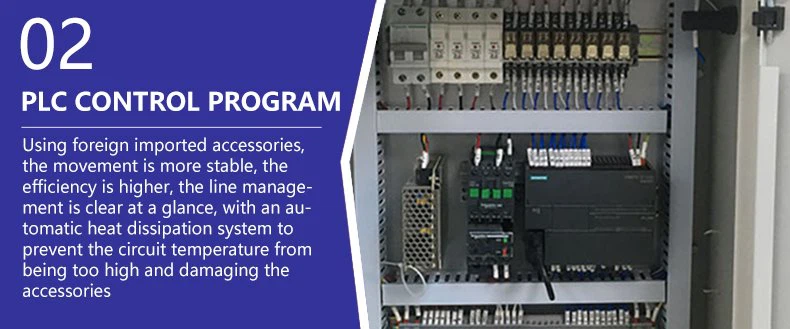

F:\\\,105-108\105\\cardboard box erectors (5)

F:\\\,105-108\105\\cardboard box erectors (5)

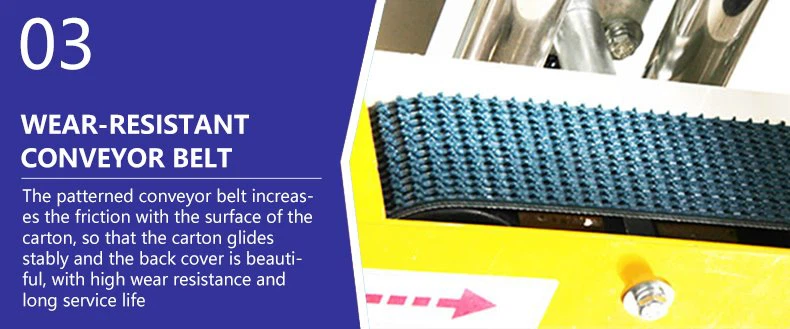

F:\\\,105-108\105\\cardboard box erectors (4)

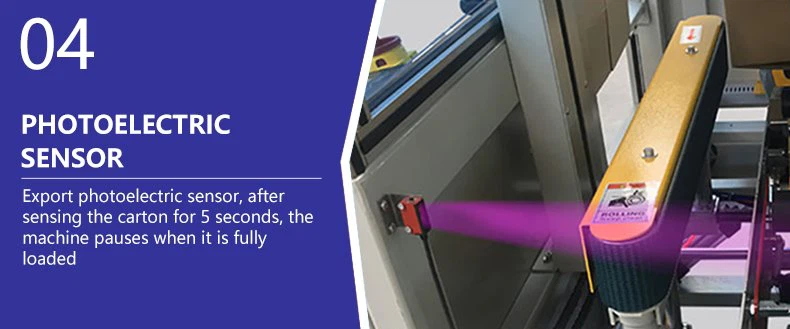

F:\\\,105-108\105\\cardboard box erectors (2)

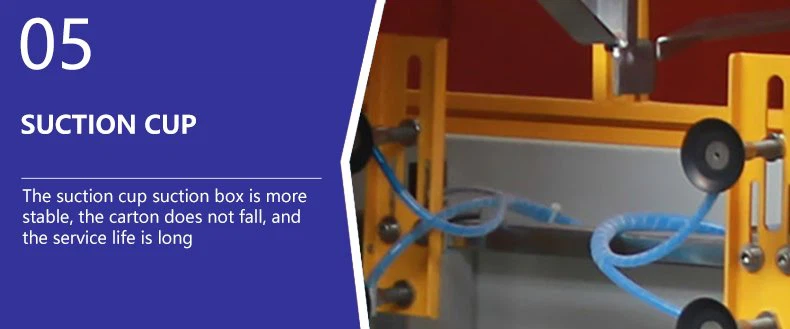

F:\\\,105-108\105\\cardboard box erectors (1)

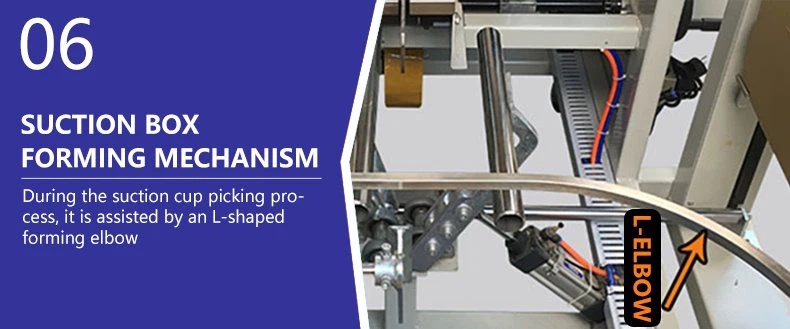

F:\\\,105-108\105\\cardboard box erectors (6)

F:\\\,105-108\105\\cardboard box erectors (7)
