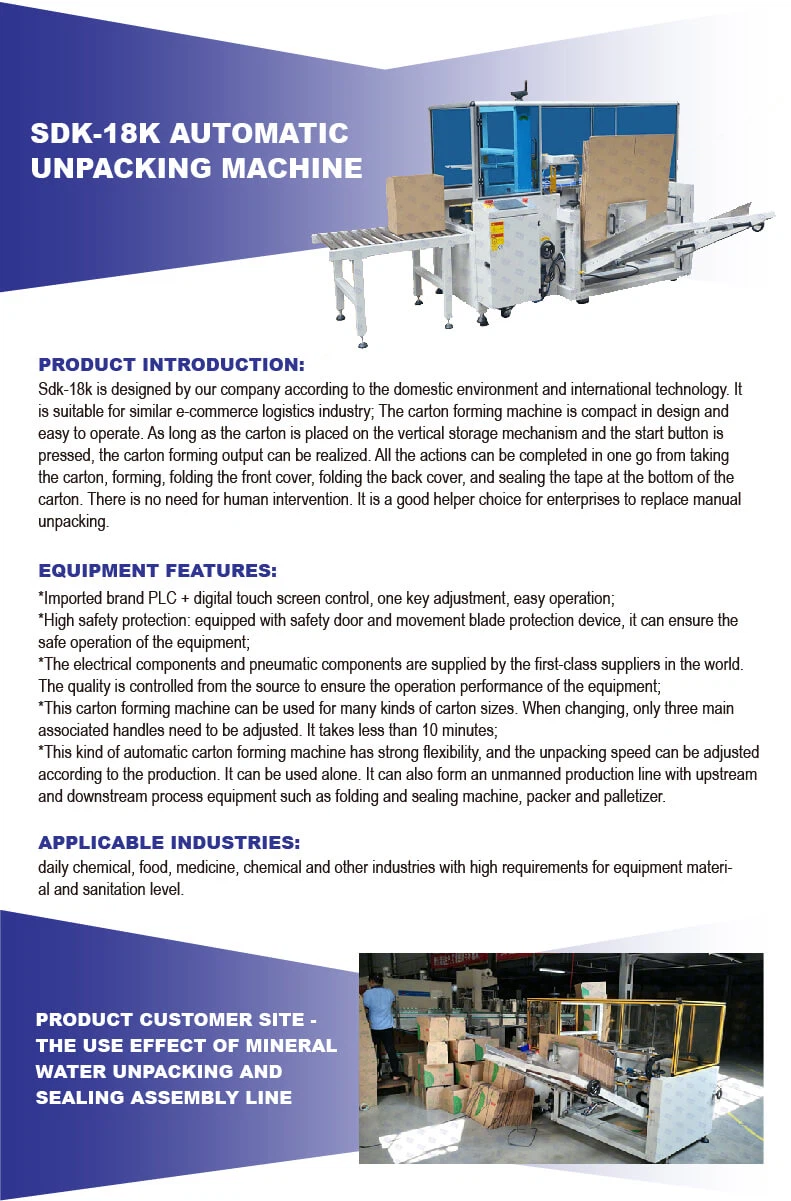

Automatic Box Erector Machine



Product introduction

The automatic box erector machine is a set of automatic unpacking, automatic folding of the lower cover, and automatic sealing of the bottom of the carton. The machine is controlled by PLC + human-machine interface. The bottom folding does not stay. The whole process of box suction, molding, bottom folding and bottom sealing is completed at the same time. It is easy to operate, simple to maintain and stable in performance. Automatic box erector machine is an indispensable assembly line equipment for automatic large-scale production.

The automatic box erector machine is mainly composed of a loading mechanism, a main frame, a vacuum suction box, a main drive, a box plate lifting mechanism, a rocker arm box conveying mechanism, an unpacking mechanism, a height adjusting mechanism, a short side folding mechanism of a carton, a long side closing and shaping mechanism of a carton, a box pushing fork, a carton guide rail, a compaction ram, and an electric pneumatic control system.

standard model commonly used by small and medium-sized enterprises. The unpacking capacity is about 12 boxes / min.

Main advantages of automatic box erector machine:

● it is applicable to the unpacking and sealing of cartons of various sizes. If the carton specification needs to be changed, it can be adjusted manually, and the operation is simple and convenient.

● automatic unpacking, automatic folding of the lower cover and automatic sealing of the bottom of the carton. The machine is controlled by PLC + man-machine interface. It is an indispensable assembly line equipment for automatic large-scale production with convenient operation, simple maintenance and stable performance.

● the bottom folding does not stay, and the bottom folding and sealing are completed during transportation; Complete the whole process of suction box, forming, bottom folding and sealing in 3 seconds; High speed, stability, convenience and economy.

● using this unpacking machine instead of manual labor can reduce at least 2-3 packers, save 5-10% of consumables, improve 30% of efficiency, greatly save costs and improve efficiency; And the packaging can be standardized.



Performance parameters of automatic box erector machine

Product model	SDK-18K
Unpacking capability	18 cases / min
Temporary storage capacity of cartons	100pcs (1000mm) to be customized
Carton Size	L: 250-400 W: 150-350 H: 100-350mm (the minimum size cannot appear at the same time)
Power	220V 1 ф 200W (subject to design)
Necessary air pressure	6kg / cm2
Air consumption	450NL/min
Machine dimensions	L2400 × W2050 × H1450mm (subject to design)
Tape size	48, 60, 75mm (optional)

*This automatic box erector machine is designed and used according to the standard specification carton. It is recommended to provide the corresponding carton sample test when purchasing this unpacking machine



Optional:

*Sealing machine, non-standard packing machine, robot palletizer combined into a fully automated production line;

*Hot melt adhesive can be used to replace tape back sealing, that is, hot melt adhesive automatic unpacking machine;

*304 stainless steel open case machine with international health grade material can be selected;

Applicable industries: daily chemical, food, medicine, chemical and other industries with high requirements for equipment material and sanitation level.



Working principle diagram of sdk-18k automatic box erector machine



The technological advancements in the field of packaging have brought about remarkable changes in the way businesses operate. The automatic box erector machine is one such innovation that has revolutionized the packaging industry by automating the process of erecting boxes.

This machine is designed to accurately and efficiently erect a wide range of box styles and sizes. It is equipped with intelligent sensors that detect the size of the box and adjust the machine accordingly. With this feature, businesses no longer have to worry about human error or spending too much time on manual box erecting processes.

Another great feature of the automatic box erector machine is its high speed. This machine can erect hundreds of boxes per hour, which significantly reduces the time required to prepare products for shipping. This not only saves businesses time but also money as it reduces labor costs.

Furthermore, this machine is designed to be easy to operate. Its simple interface allows operators to quickly learn how to use it, which means businesses can quickly integrate it into their packaging processes.

The automatic box erector machine also helps businesses to maintain consistency in their packaging. The machine ensures that each box is carefully and accurately erected to the same standard, which enhances the professionalism of the business.

In conclusion, the automatic box erector machine is a valuable technology that has greatly improved the efficiency and accuracy of packaging processes. Its intelligent sensors, high speed, ease of use, and consistency make it an indispensable tool for businesses involved in the packaging industry. This machine has and will continue to make a positive impact on businesses, improving their overall productivity and profitability.
