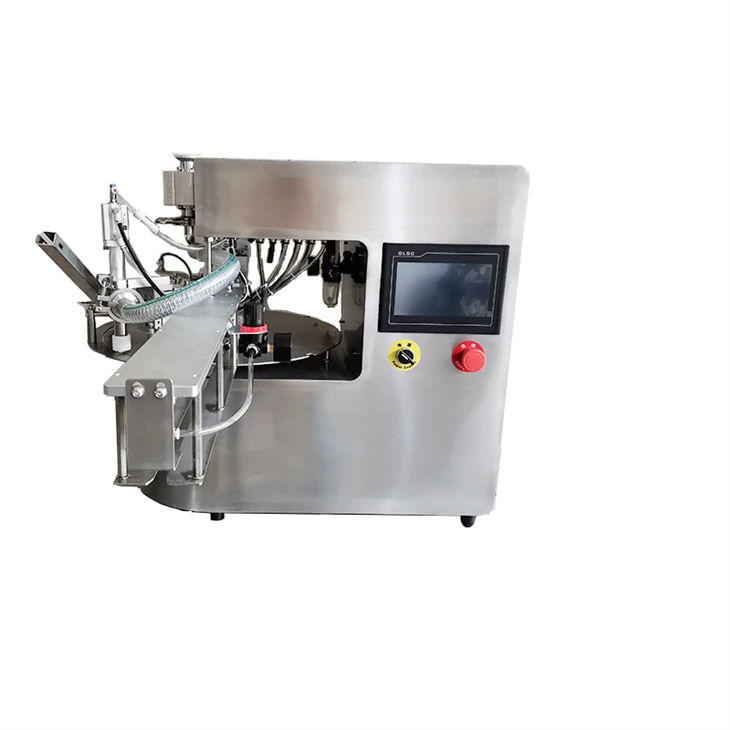

Desktop Rotary Stand-up Pouch Filling And Capping Machine

Desktop Rotary Stand-up Pouch Filling And Capping Machine

Products Description Desktop Rotary Stand-up Pouch Filling and Capping Machine The desktop rotary stand-up pouch filling and capping machine is a compact and efficient solution for filling and sealing pre-made stand-up pouches with caps. It integrates pouch positioning, filling, and capping in...

Description



Products Description

17731242329081 1 111

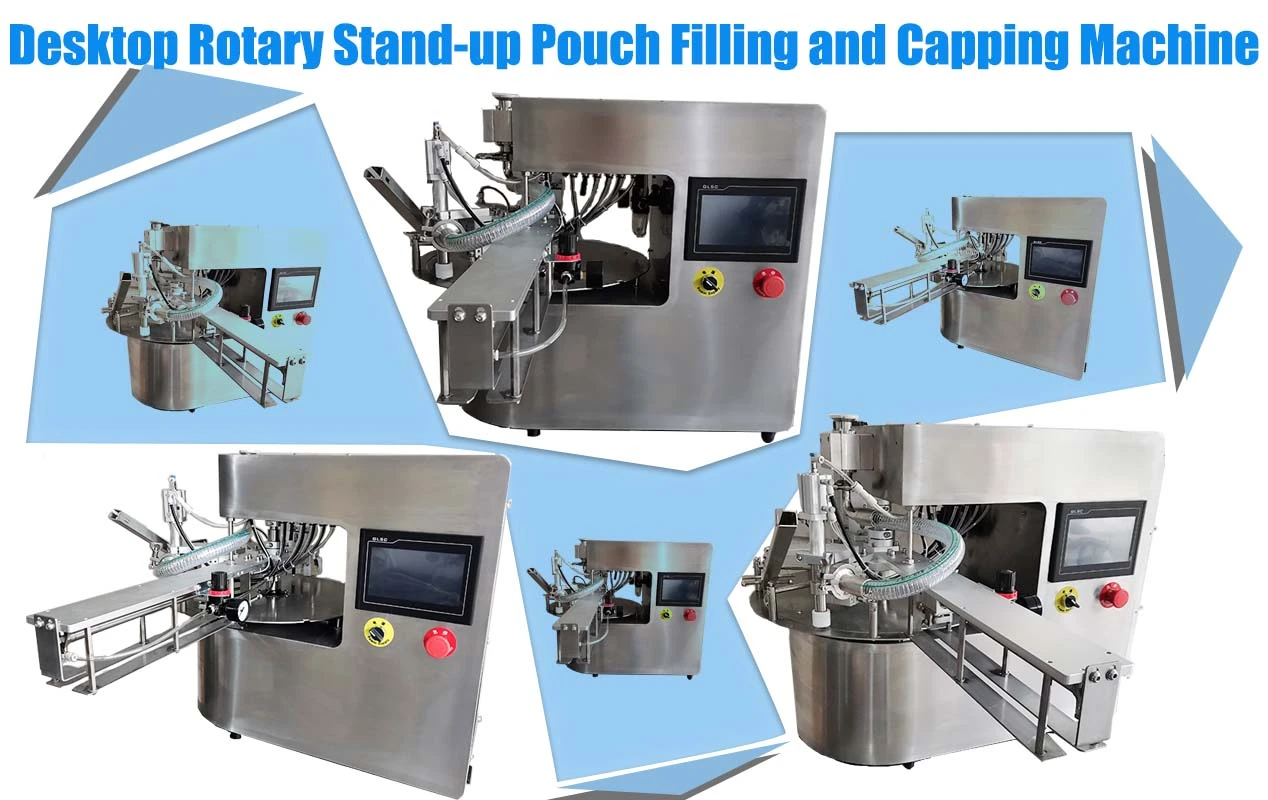

Desktop Rotary Stand-up Pouch Filling and Capping Machine

The desktop rotary stand-up pouch filling and capping machine is a compact and efficient solution for filling and sealing pre-made stand-up pouches with caps. It integrates pouch positioning, filling, and capping in one system, ensuring stable operation and high filling accuracy.

With its rotary design and small footprint, the machine is suitable for filling liquid and semi-liquid products such as beverages, sauces, detergents, and cosmetics. It is an ideal choice for small and medium-scale production or pilot production lines.

product-1-1





our feature




Applicability

Suitable for bagged products in the daily chemical and food industries, such as laundry detergent, shampoo, jelly, milk, etc.




Easy Operation

Digital adjustment of the machine; after saving parameters for the same type of pouch, only the product volume needs to be adjusted.




High Efficiency

Fast filling speed with stable performance. Each filling volume is independently controlled by a servo motor, ensuring high filling accuracy.




Easy Cleaning

The gear pump, storage tank, and filling heads use a clamp-type connection for fixing, allowing partial disassembly and cleaning without tools. The main control screen is equipped with an automatic cleaning button.





Products parameter

Dimensions 0.8 m × 0.9 m × 0.7 m
Weight Approx. 65 kg
Power Supply 220V / 50Hz; 2 kW
Compressed Air Pressure 0.5 – 0.8 MPa
Filling Accuracy ±0.5%
Machine Speed 15 – 35 bags/min





Products application



product-1-1





Contact now



Products Description

Functions
GeminiGeneratedImageh4c56qh4c56qh4c5 1
GeminiGeneratedImagebrfk4zbrfk4zbrfk 1 1
GeminiGeneratedImagezgfc3rzgfc3rzgfc 1
product-542-476

Pouch Loading: Manual pouch hanging

Filling Method: Servo-driven magnetic gear pump for quantitative filling, with self-priming hopper

Cap Feeding: Automatic cap placement on the conveyor, manual cap feeding, or vibratory bowl automatic feeding

Capping Method: Servo-driven claw capping with adjustable torque for precise sealing

Pouch Discharge: Rotary automatic pouch discharge





Products Description

faq


Q:1.What types of products can this machine fill?

A:The machine is suitable for filling liquid and semi-liquid products such as juice, milk, sauces, detergents, cosmetics, and similar products.

Q:2.What is the filling range?

A:The machine supports a filling capacity from 50 g to 3000 g, depending on the product and filling system.

Q:3.Is the machine easy to operate?

A:Yes. The machine features a simple control system, making operation easy and convenient.

Q:4.What industries is this machine suitable for?

A:It is widely used in the food, beverage, cosmetic, and daily chemical industries.
