How Does an Automatic Servo Gear Pump Liquid Filling Machine Work? A Complete Guide for Precision Packaging
📚 Table of Contents
1. What is an Automatic Servo Gear Pump Liquid Filling Machine?
2. How Does an Automatic Servo Gear Pump Filler Work?
3. Key Components & Their Functions
4. Types of Servo Gear Pumps: External vs. Internal, Lobe & Vane
5. Why Choose Servo Gear Pump for Precision Filling?
6. Applications in Food, Pharmaceutical, and Chemical Industries
7. Step-by-Step Working Process of the Machine
8. How to Choose the Right Servo Gear Pump Filler for Your Product
9. Maintenance & Cleaning: Ensuring Continuous and Safe Operation
10. The Future of Servo Gear Pump Filling Technology
11. Guangzhou RITO: Trusted Partner for High-Precision Liquid Filling Machines
1. What is an Automatic Servo Gear Pump Liquid Filling Machine?
An Automatic Servo Gear Pump Liquid Filling Machine is a high-precision equipment used in the packaging industry to accurately measure and dispense liquids into containers such as bottles, cans, or pouches. This type of machine is widely used in sectors like food and beverage, pharmaceutical, cosmetic, chemical, and oil due to its ability to handle viscous and particulate-filled liquids efficiently and reliably.
Unlike traditional liquid filling methods that rely on gravity or simple timers, an automatic servo gear pump filler uses servo motor-driven gear pumps to achieve consistent volume delivery while maintaining high-speed and minimal downtime. It is an advanced solution for automatic indexing systems that ensures product quality and production efficiency.
2. How Does an Automatic Servo Gear Pump Filler Work?

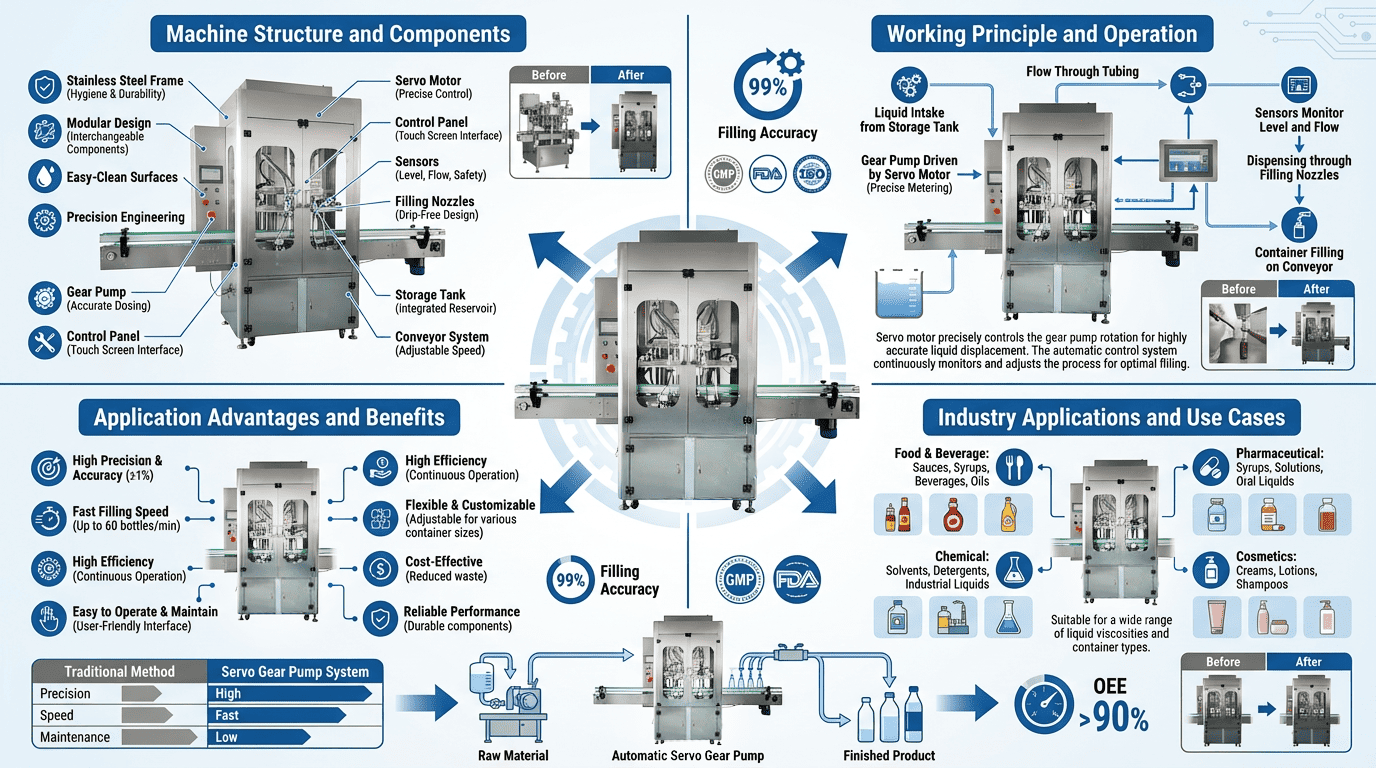

The core mechanism of an automatic servo gear pump liquid filling machine is the integration between a servo motor and a high-precision gear pump. Here's how it works:
📊 Pump Filling Process Table
| Step | Description |
|---|---|
| 1 | Material is stored in a bulk tank or container. |
| 2 | Servo motor rotates the gear pump at a precise speed based on the desired fill volume. |
| 3 | The gear pump draws the liquid from the bulk source and transfers it through the product pathway. |
| 4 | A filling head delivers the liquid into the waiting container based on the set flow rate or volume. |
| 5 | Once the fill volume is achieved, the pump stops, and the filling head closes to prevent overflow. |
| 6 | A cleaning cycle is initiated to prepare for the next fill cycle and maintain hygiene. |
This servo-driven system allows for dynamic control over the filling process, making it suitable for differing liquid viscosities and simple to install, maintain, and operate.
3. Key Components & Their Functions
| Component | Function |
|---|---|
| Servo Motor | Controls the pump's speed and rotation precisely. |
| Gear Pump | The core of the machine, responsible for accurate volume measurement and transport. |
| Level Sensor | Detects the liquid level to prevent underfilling or overfilling. |
| Control System (PLC or HMI) | Manages the entire filling process, including timing, flow rate, and error alerts. |
| Filling Head | Directs the liquid from the pump into the target container. |
| Valve & Pipeline System | Ensures controlled flow and prevents leakage. |
| Container Conveyor System | Moves containers into and out of the filling zone. |
| Cleaning Unit (Optional) | Automatically flushes the system to avoid contamination between different liquids. |
These components work in harmony to deliver accurate, reliable, and hygienic filling in high-demand industries.
4. Types of Servo Gear Pumps: External vs. Internal, Lobe & Vane
There are several types of servo gear pumps used in liquid filling machines, each with unique advantages:
🎯 Types of Servo Gear Pumps Table
| Pump Type | Description | Best For |
|---|---|---|
| External Gear Pump | Two interlocking gears rotate to push liquid through the pump chamber. | High-viscosity liquids, steady flow requirement |
| Internal Gear Pump | One gear rotates inside the other, increasing sealing efficiency. | Filling with particulates, precise volume control |
| Lobe Pump | Uses two rotating lobes to move liquid without direct contact between them. | Sticky, paint-like, or medium-viscosity fluids |
| Vane Pump | Utilizes a set of vanes moving within a rotor to create suction and pressure. | Applications requiring smooth flow and low maintenance |
Each type is chosen based on product characteristics and industry requirements, ensuring maximum efficiency and accuracy.
5. Why Choose Servo Gear Pump for Precision Filling?
✅ 5 Main Advantages of Servo Gear Pump Fillers
| Advantage | Description |
|---|---|
| High Precision | Servo motor control allows for filling accuracy down to microliters or milliliters. |
| High Efficiency | Complete automation reduces downtime and increases throughput. |
| Stability and Reliability | Ensures consistent delivery even under varying conditions. |
| Versatile Use | Suitable for both liquid and semi-liquid products like shampoo, syrups, and oils. |
| Hygienic & Safe Operation | Designed with easy-cleaning features, ideal for pharmaceutical and food applications. |
Servo gear pumps are the preferred choice in modern packaging automation due to their repeatability, efficiency, and adaptability.
6. Applications in Food, Pharmaceutical, and Chemical Industries
Automatic servo gear pump liquid filling machines are industry-specific, and their use is critical in high-standard sectors:
| Industry | Application | Example Products |
|---|---|---|
| Food & Beverage | Bottling of juice, syrup, dairy products, condiments, and carbonated drinks | Fruit juice, soy sauce, yogurt |
| Pharmaceutical | Precision filling of serums, ointments, and liquid medications | Oral liquid, eye drops, topical solutions |
| Cosmetics | Filling toner, shower gel, and fragrance products | Lotions, creams, perfumes |
| Chemicals & Lubricants | Filling oils, solvents, and emulsions | Engine oil, cleaning agents, industrial lubricants |
| Beverage Bottling | Integration with cooling, labeling, and capping lines | Mineral water, beer, and soft drinks |
These machines are indispensable in industries requiring sterility and accuracy.
7. Step-by-Step Working Process of the Machine
1.Material Prep & Supply
The liquid is stored in a bulk tank and supplied to the pump through a pressure control system.
2.Servo Motor Initialization
The servo motor is powered on and begins to rotate at preset RPMs, based on the required fill volume.
3.Gear Pump Operation
The gear pump takes in liquid and pushes it through the product pathway using positive displacement.
4.Volume Detection & Fill Control
The control system measures the rotation of the gear or the time of the fill to ensure precise volume delivery.
5.Filling Head Activation
Once the fill volume is reached, the filling head is triggered, and the liquid is poured into the target container.
6.Automated Cleaning Cycle
After filling, a cleaning unit is activated to prevent cross-contamination, especially in hygienic applications.
This closed-loop control system ensures high accuracy and repeatability in every fill cycle.
8. How to Choose the Right Servo Gear Pump Filler for Your Product?
Selecting the right servo gear pump filler depends on various factors:
| Factor | Consideration |
|---|---|
| Viscosity | Choose a high-torque motor if the product is thick or high-viscosity. |
| Flow Rate & Speed | Use regulating parameters to match your production line speed. |
| Product Type | Check for particulates, foaming, or temperature sensitivity. |
| Container Size | Select multi-head models for large-scale production or single-head for small batches. |
| Hygiene and Sanitation | Look for IP-rated units, steam sanitization, and clean-in-place (CIP) systems. |
| System Integration | Ensure compatibility with existing production lines, including PLC or automation systems. |
By carefully matching these factors to your product, you can maximize efficiency, accuracy, and longevity.
9. Maintenance & Cleaning: Ensuring Continuous and Safe Operation
Proper maintenance and cleaning are essential for sustaining performance and ensuring safety, especially in pharmaceutical and food industries.
✅ Key Tips for Routine Maintenance
- Regular Cleaning – Especially after handling different products or flavors.
- Lubrication of Gears and Bearings – To prevent wear and tear.
- Monitoring Suction and Pressure – To maintain stable flow and avoid clogging.
- Inspection of Gaskets and Seals – To ensure leak-proof operation.
- Calibration of Servo Motor and Pump – For continuous accuracy.
- Use of Consumables Like Replacement Seals or Bearings – When needed for long-term durability.
Many automatic servo gear pump fillers come with automatic cleaning systems, which further minimize manual work and contamination risks.
10. The Future of Servo Gear Pump Filling Technology
As industrial automation continues to evolve, so do servo gear pump fillers. The future trends in liquid filling technology include:
- Smart Integration – With MES systems, IoT, and digital twins.
- User-Friendly Interfaces – Such as HMI touchscreens for easy operation and setup.
- Customizable Solutions – For multiple product types and container shapes.
- Energy Efficiency – Reducing power consumption and carbon footprint.
- Self-Adjusting Systems – That can learn and adapt to fluid behavior and process conditions.
In the coming years, these machines will be even more adaptive, efficient, and data-driven, helping manufacturers achieve higher standards in production.
11. Guangzhou RITO: Trusted Partner for High-Precision Liquid Filling Machines
At Guangzhou RITO Packaging Machine Co., Ltd., we understand that precision matters. Established in 2013, our 3,000 m² headquarters in Guangzhou provides a state-of-the-art R&D environment for packaging and automation solutions.
🏆 Why Choose RITO for Your Liquid Filling Needs?
- Advanced Technology: We use your requirements to design high-precision gear pump systems.
- 10+ Patents: Including invention patents, ensuring innovation and quality.
- Dedicated R&D: A team of experienced software, mechanical, and electrical engineers.
- Customization: We offer tailored solutions to match your industry-specific needs.
- Lifetime Support: We provide both warranty and free software updates throughout the product lifecycle.
- Global Reach: Our equipment is used in over 40 countries, including the US, Germany, Canada, and Southeast Asia.
We are committed to creating value for our clients and driving industry innovation through high-tech packaging solutions.
🧠 Final Thoughts
An automatic servo gear pump liquid filling machine is more than just a tool-it's a crucial component of modern packaging automation. Its capacity for high-precision, stable flow, and compatibility with diverse product types makes it ideal for mass production lines that demand efficiency, quality, and safety.
Whether you're in food, pharmaceutical, or chemical industries, selecting the right servo gear pump filler can make a huge difference in your production line's performance. With Guangzhou RITO's expertise and commitment, we are here to help you achieve the best outcomes.
