Gravity bottle filler

Our automatic linear structure gravity bottle filler drinking water bottle filling machine is an atmospheric filling machine. Under the control of PLC and touch screen, there is no need to replace any components, the operation is simple, and the bottle replacement is convenient. By controlling the filling time, we can change the filling volume according to different bottles and requirements. The whole machine adopts advanced stainless steel and anti-corrosion materials. It is suitable for filling requirements of bottles (containers) of various shapes and other containers except carbonated liquids.

Description

Rito machinery company's gravity bottle filler adopts filling valve gravity filling, equipped with PLC and touch screen.

The screen is easy to operate. The main pneumatic components and electronic components of the filling machine are all famous Japanese or German brands. The body of the filling machine and the parts in contact with the product are made of stainless steel, clean and hygienic in line with GMP standards. The filling volume and speed can be easily adjusted, and the filling nozzle can be replaced according to actual needs. This filling line is suitable for filling various liquid products such as medicines, foods, beverages, chemicals, detergents, pesticides, etc., such as shampoo, detergent, lotion, juice, wine, vinegar, etc.

Feature:

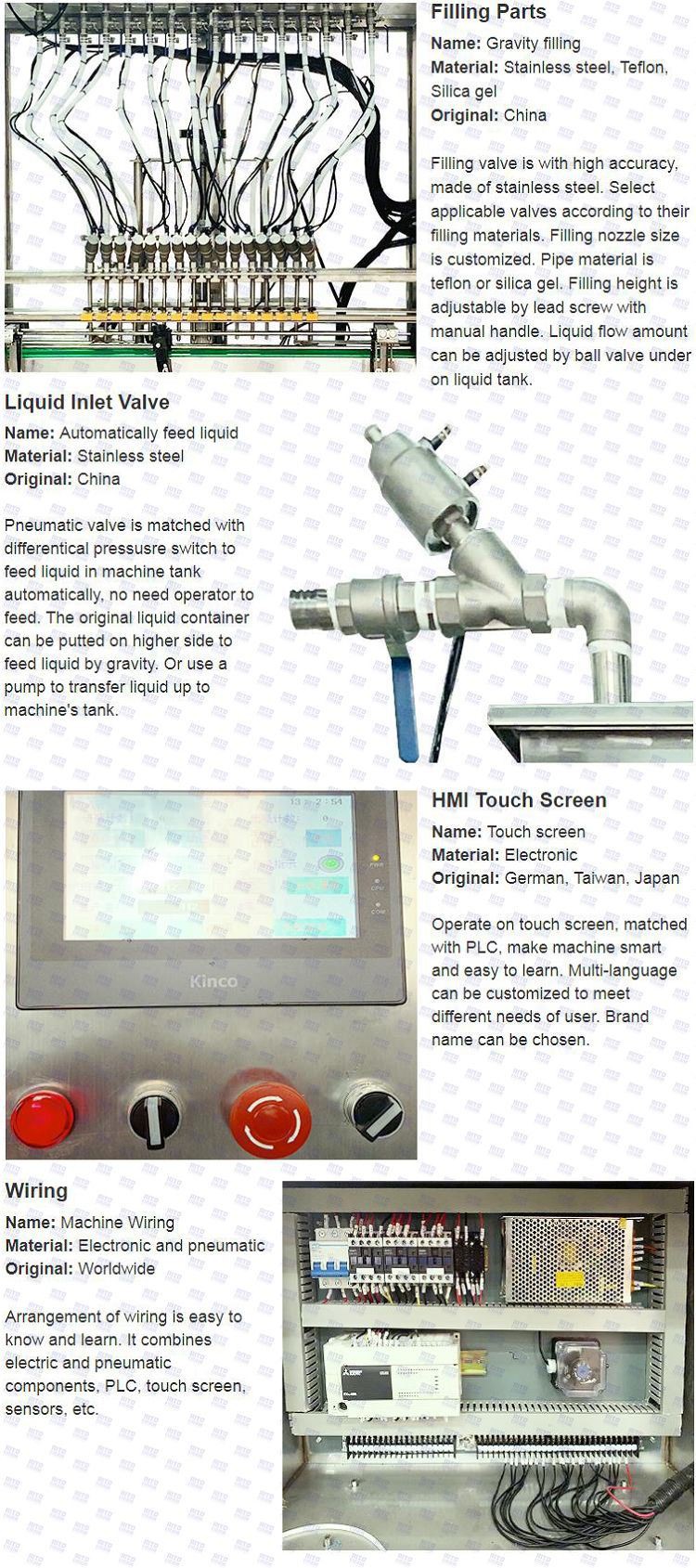

1. The filling valve is made of stainless steel with high precision. Choose the appropriate valve according to the packing. The size of the filling nozzle can be customized. The pipe material is polytetrafluoroethylene or silica gel. The filling height can be adjusted by a screw with a manual handle. The liquid flow rate can be adjusted through a ball valve under the liquid storage tank.Anti-drip prevent material from dripping from the nozzles, 316L stainless steel filling nozzles, GMP standard, different size optional

2. Pneumatic valves cooperate with different pressure switches to automatically feed the liquid in the oil tank of the machine without the need for operators to feed. The original liquid tank can be putty on the higher side, and the liquid is given by gravity. Or use a pump to transfer the liquid to the machine's oil tank.

3. Touch screen operation, with PLC, makes the machine intelligent and easy to learn. Multiple languages can be customized to meet

Different needs of users. You can choose the brand name.

4. The wiring arrangement is easy to know and learn. It combines electrical and pneumatic components, PLC, touch screen, sensors, etc.

Technical Parameters
Heads No.	8	12	16	20
Capacity(BPH)	500ml: ≤2000	500ml: ≤2800	500ml: ≤3400	500ml: ≤4000
Volume	50-1000ml
Accuracy	≤1000ml: ±2ml; 100-500ml: ±1ml; ≤100m: ≤1ml
Suitable Bottles	Height: 100-280mm, Diameter: Φ30-110mm
Control method	Touch screen and PLC
Air supply	0.5-0.7Mpa
Voltage	220V/110V, Single phase , 50/60Hz, customized globally

This filling machine has good accuracy, high standard, high stability, the parameters of the whole machine are higher than the industry standard.

The automatic gravity liquid filling machine is mainly used for the filling of free-flowing liquids in liquid food, daily chemical, agrochemical, pharmaceutical and other industries.
