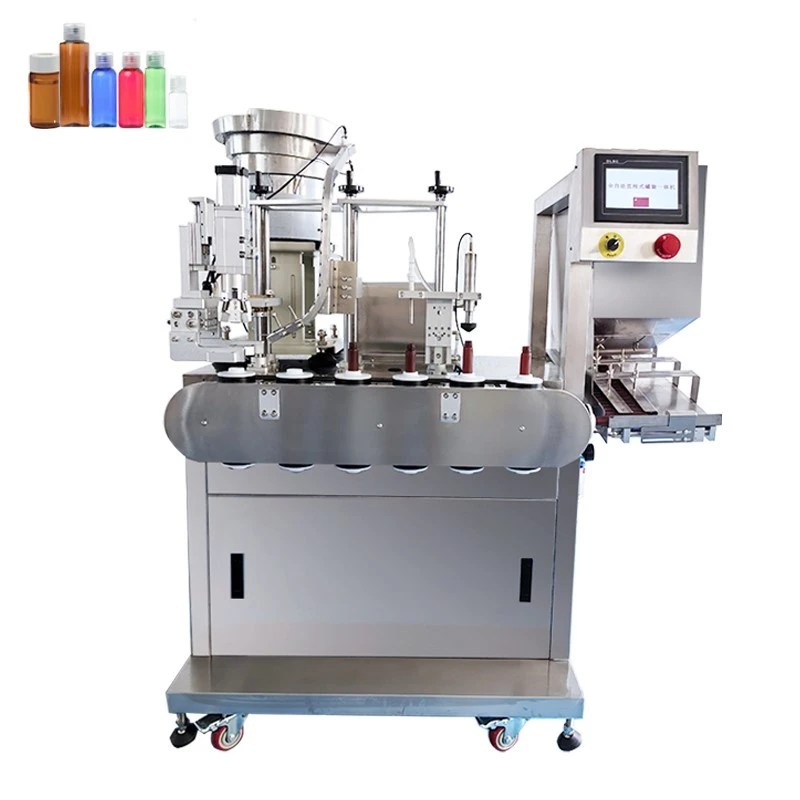

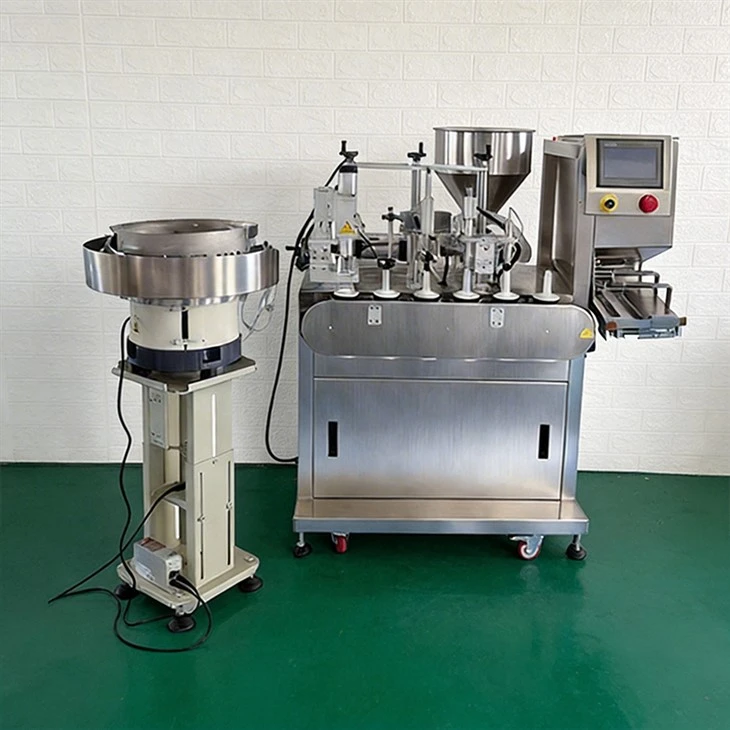

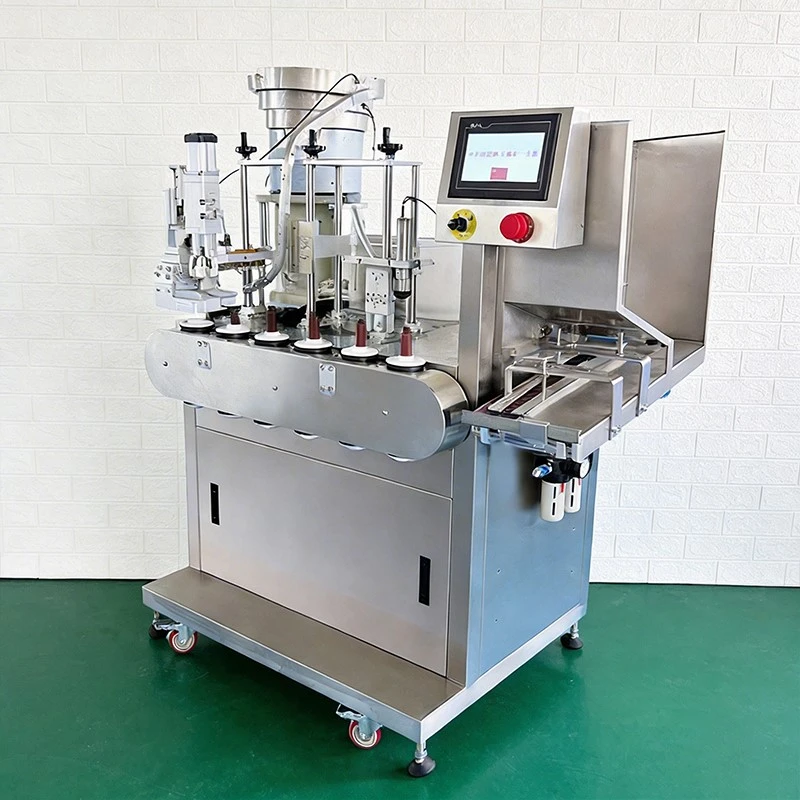

Small Bottle Filling And Capping Machine
The small bottle filling and capping integrated machine is a compact device specifically designed for liquid production lines, integrating the three core processes of filling, cap feeding, and capping into one unit. The machine is equipped with a vibrating cap feeding system to enable fully automatic continuous operation.
Description
The small bottle filling and capping integrated machine is a compact device specifically designed for liquid production lines, integrating the three core processes of filling, cap feeding, and capping into one unit. The machine is equipped with a vibrating cap feeding system to enable fully automatic continuous operation. Its working principle is simple and efficient: the PLC control system accurately meters the filling volume, then automatically feeds and screws on the caps, finally discharging the finished products.
High-Precision Filling:
Equipped with a "no bottle, no fill" function to effectively reduce material waste.
Stable and Reliable Capping:
Precise torque control prevents damage to bottle caps.
Wide Applicability:
Suitable for a broad range of liquid materials, from low-viscosity essential oils and oral liquids to medium/high-viscosity products like glue.
Intelligent Operation:
Typically features a touchscreen HMI (human-machine interface) for intuitive operation and convenient parameter adjustment.
Applications
1. Pharmaceutical Industry：Suitable liquids: oral liquids, syrups, eye drops, disinfectant solutions
2. Cosmetic Industry：Suitable liquids: essential oils, serums, toners, lotions / emulsions
3. Personal Care Industry：Suitable liquids: shampoo, body wash, hand wash / hand sanitizer
4. Food & Beverage Industry：Suitable liquids: honey, syrup, fruit juice, chocolate sauce, seasoning oil
5. Chemical & Adhesive Industry：Suitable liquids: glue / adhesive, lubricating oil, cleaning agents
| Dimensions (L × W × H) | 120 × 80 × 150 cm |
| Weight | Approx. 220 kg |
| Power Supply | 3 kW (220V 50Hz) |
| Compressed Air Pressure | 0.6–0.7 MPa |
| Production Capacity | 15–30 bottles/min |
| Filling Accuracy | ±1% |
Product details
Touchscreen HMI
The touchscreen HMI is the operational core of the machine. It features a color LCD display with switchable Chinese/English interface, offering a clean and intuitive user experience.

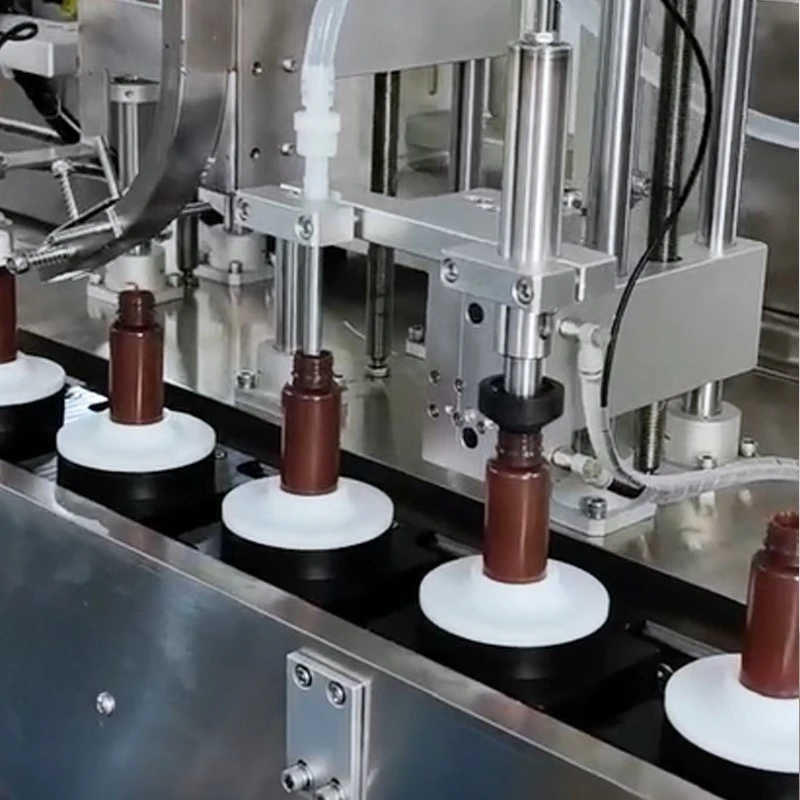

Filling System
Equipped with a "no bottle, no fill" detection sensor. It delivers high-precision metering and is adaptable to a wide range of viscosity levels.
Capping System
Features precise torque control for stable and consistent capping force, preventing over-tightening (which may damage caps) or under-tightening (which may cause leakage). It also includes automatic cap sorting and feeding.
FAQ
