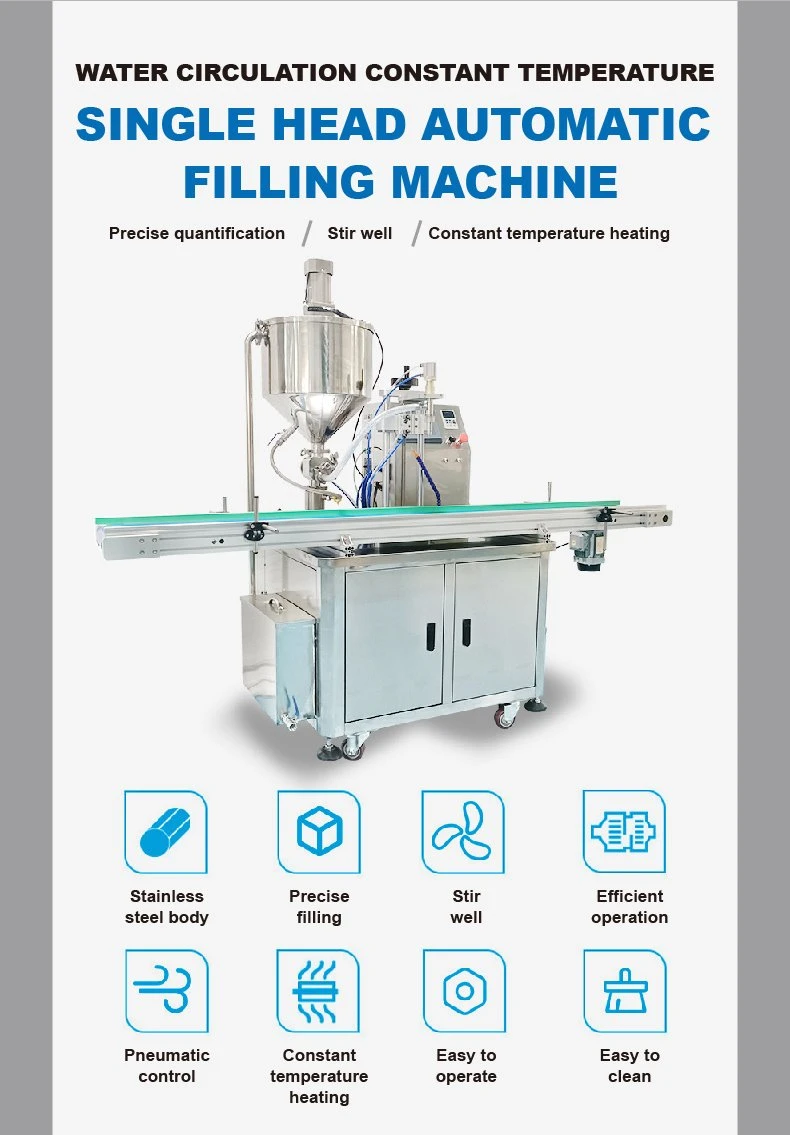

Single Piston Filler

Features of single piston filler：

Precise quantification

Stir well

Constant temperature heating



Stainless steel body

Precise filling

Stir well

Efficient operation

Pneumatic control

Constant temperature heating

Easy to operate

Easy to clean

Spotlight of single piston filler

304L stainless steel

The load-bearing capacity is good, and the height of the operating table can be adjusted arbitrarily, which is more convenient to use

Strong corrosion resistance

Not easy to rust

Good load-bearing capacity



Refuse to draw, do not drip

The filling head has a built-in multi-layer seal to prevent material dripping and wire drawing, and has a long service life



Constant temperature heating, adjustable temperature

Water circulation heating, main material pipe, filling pipe can heat the material without solidification

Simple operator panel of single piston filler

Simple and easy to operate, practical and convenient

1.Temperature controller

-Adjust the heating temperature

2. Heating device

- Water tank heating

3. Water pump

- Water circulation capacity

4. Mixing motor

-Hopper mixing controller



The material is stirred evenly

Super large capacity hopper, mirror polishing process, real-time mixing of materials, stepless speed regulation

The hopper and bar can be removed for easy cleaning

304L stainless steel



Air filtration device of single piston filler

Effectively and fully filter impurities and moisture in the gas, with a long life

Effective filtering

Safe and stable

Long life

Thickened conveyor belts

Stable transmission, textured surface, enhanced friction, durable and beautiful

Fiber optic eye

Equipped with pneumatic components, the equipment is stable and has a longer life

Pneumatic components



PLC touch screen control

It adopts touch operation panel and has built-in PLC function sensing device for precision

Simple controls

Stable performance

Precisely



Product parameters of single piston filler

Heat sealing power: 5000W

Production capacity: 1000-2000 bottles/hour

Adapted bottle diameter: 1 5-100 (mm).

Adapted bottle height: 3 0-200 (mm).

Hopper: 40L

Filling range: 5-1000ml

Measurement error: 1%

Power mode: pneumatic control

Air supply pressure: 220V

Dimensions: 2000*1000*1600(mm).

Working principle: atmospheric pressure

Material type: liquid, solid

Packaging type: bottle

Number of filling heads: 1

Show in detail of single piston filler

Movable gimbal

- easy to move the device,

-The wheels can be fixed, locked and stable for use



Stainless steel workstation

-Corrosive,

-High brightness, more beautiful,

-Durable



Fiber optic eye

-Precise positioning, no bottle no filling,

-Responsive electric eye control into the cylinder,

-Induction bottle filling material



Large capacity hopper

-304L stainless steel hopper

-Suitable for highly viscous materials

-Corrosion resistant without rust



Extra-long and smooth conveyor belt

-Non-pouring bottle, fully automatic

-Multiple bottles can be transported and filled

-Stable and durable, wear-resistant

Versatility and efficiency

Single piston filler can be widely used in cosmetics liquid filling, paste filling, medicine, daily necessities, chemical, food and other industries

Cosmetics

Daily care

Medicine

Daily chemical class

Food category



How single piston filler works

1.Place clean water in the heating box

2.The operator panel regulates the temperature heating

3.Turn on the water pump switch

4.Circulating convection is formed by water pressurization

5.To be insulated, the filled material is fed into the hopper for mixing

6.Up and down reciprocating movement is carried out through the cylinder

7.Negative pressure is generated internally and is sucked into the cylinder by the atmosphere

8.The material enters the filling empty bottle through the outlet

The Single Piston Filler is a remarkable invention that has revolutionized the packaging and filling industry. With its innovative design, this machine has made the process of packaging and filling products more efficient, faster, and simpler. It has become an essential tool for businesses of all sizes and industries, from small startups to large corporations.

One of the main benefits of the Single Piston Filler is its ease of use. Its simple design allows for easy operation, even for those who are new to the packaging and filling industry. The machine is also highly customizable, allowing businesses to tailor its settings to their specific needs. This flexibility is particularly useful for small businesses that may have limited resources and need to find cost-effective solutions for their packaging needs.

Another key advantage of the Single Piston Filler is its efficiency. It is capable of filling large volumes of products accurately and quickly, which reduces the time and labor required for packaging and filling. This is beneficial not only for businesses but also for consumers who receive their products promptly and in good condition.

In addition, the Single Piston Filler is durable and reliable. Its robust design ensures that it can withstand the daily wear and tear of packaging and filling operations, minimizing downtime and maintenance costs. This is particularly important for businesses that need to operate continuously to meet customer demands.

Overall, the Single Piston Filler is a valuable tool for businesses looking to streamline their packaging and filling processes. It is efficient, easy to use, and highly customizable, making it an excellent investment for companies of all sizes and industries. By choosing this innovative machine, businesses can improve their productivity, reduce costs, and provide their customers with high-quality products in a timely manner.
