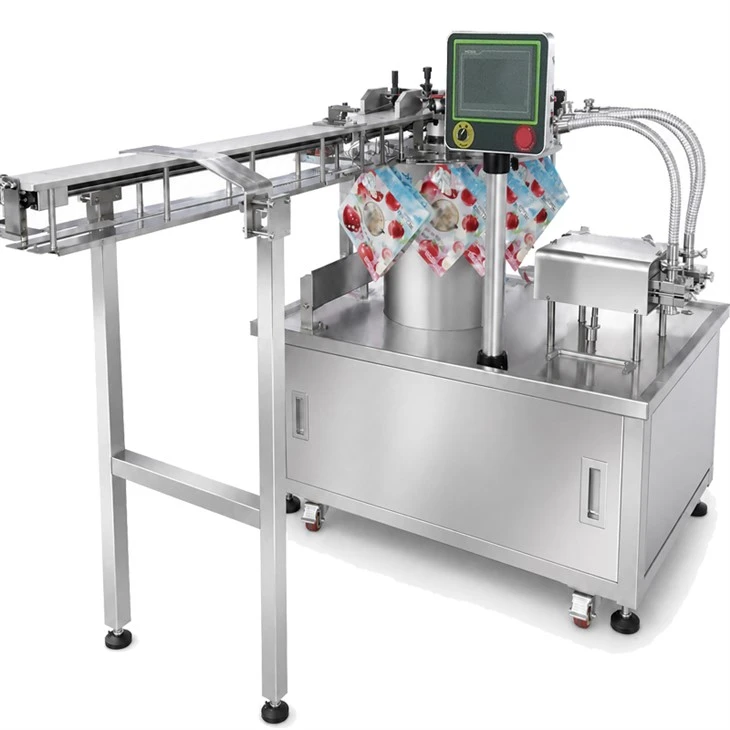

Spout Pouch Filling And Capping All-in-one Machine
Driven by dual servo magnetic gear pumps, the machine provides accurate, quantitative filling with reliable and consistent performance. A vibratory bowl feeder automatically aligns the caps and feeds them smoothly along the cap track, while the servo-driven claw capping head guarantees precise capping with adjustable torque for each cap.
Description
Powered by dual servo magnetic gear pumps, the machine delivers precise quantitative filling with stable, consistent performance. Caps are automatically oriented by a vibratory bowl feeder and delivered smoothly through the cap track, while the servo-driven claw capping head ensures accurate, adjustable torque on every cap.
Built with a SUS304 stainless-steel frame and a user-friendly touchscreen PLC control system, the machine runs with dual filling and dual capping - engineered for reliable, continuous pouch filling and capping production.
Main Highlights:
● Dual-head filling
● Dual-station servo capping
● Servo magnetic gear pump filling
● Adjustable capping torque
● Automatic cap feeding
Applications:
1.Laundry detergent, hand soap, cleaning liquid, and other free-flowing liquids
2.Sauces, seasoning sauces, and other products with a certain viscosity
3.Juice, beverages, and other liquid products
4.Household chemical liquids and other products suitable for spout pouch packaging
Dual-Head Spout Pouch Filling and Capping Machine Working Process:
| Dimensions (L × W × H) | 1.2mx1.2 mx1.5m |
| Weight | Approx. 268kg |
| Power Supply | 3.2 kW (220V, 50Hz) |
| Compressed Air Pressure | 0.5–0.8 MPa |
| Production Capacity | 35-40 bottles/min |
| Filling Accuracy | ±0.5% |
Product details
Filling Station
The dual-station design fills two spouted pouches at once, while servo-driven magnetic gear pumps ensure fast, stable, and accurate filling.
Cap Feeder
The automatic cap feeder sorts and aligns caps in the vibrating bowl, then transfers them smoothly to the capping station for continuous, hands-free operation.
Capping Station
The servo-driven claw capping system delivers stable, precise capping with easily adjustable torque to fit different caps and production needs.
FAQ
01.What types of pouches can this machine handle?
02.What products can be filled?
03.Can the capping torque be adjusted?
04.How many pouches can be filled at the same time?
05.Is cap feeding automatic?
06.What is the machine made of?
